CARBURETOR

DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)

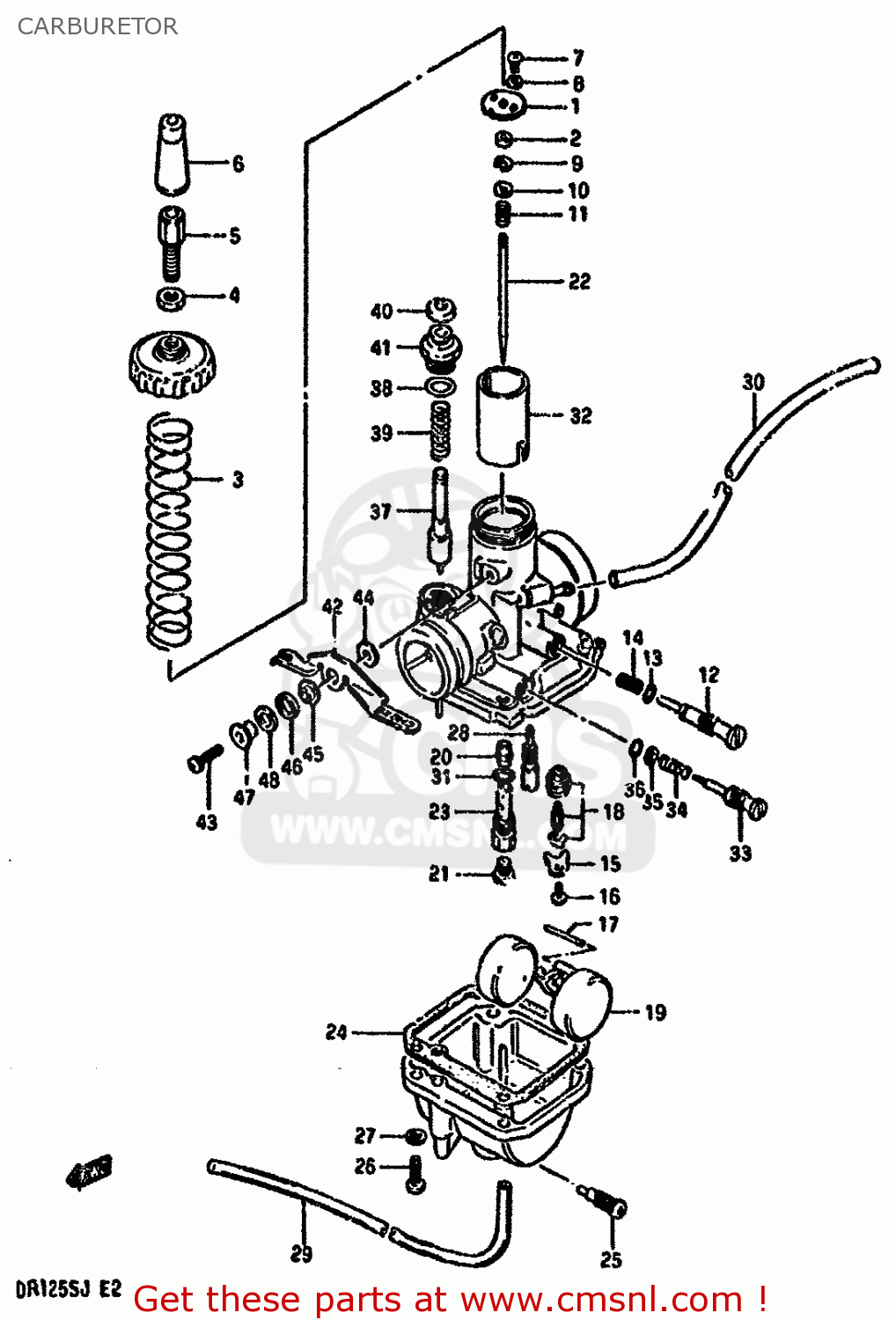

Carburetor diagram DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)

CARBURETOR DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)
CARBURETOR DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)
CARBURETOR DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
0
1320044A20
ref: 0
E1
CARBURETOR ASSY (VM24)
1320044A20
€ 215.50
0
1320044A00
ref: 0
E2,E4,E15,E18,E21,E2
CARBURETOR ASSY (VM24)
1320044A00
€ 218.50
1
1337344A00
ref: 1
PLATE
1337344A00
€ 7.50
2
1338747010
ref: 2
RING
1338747010
€ 7.50
3
1357305320
ref: 3
SPRING
1357305320
€ 3.50
4
1366116600
ref: 4
NUT
1366116600
€ 5.00
5
1357748110
ref: 5
ADJUSTER,CABLE
1357748110
€ 8.00
6
1368116600
ref: 6
CAP,RUBBER
1368116600
€ 7.00
7
0211203086
ref: 7
SCREW
€ 1.50
8
0832121036
ref: 8
LOCK WASHER
0832121036
€ 1.50
9
1339410010
ref: 9
CLIP
1339410010
€ 4.50
10
1338247010
ref: 10
WASHER,JET NEEDLE
1338247010
€ 3.00
11
1338847010
ref: 11
SPRING
1338847010
€ 7.00
12
1326736600
ref: 12
SCREW,THROTTLE STOP
1326736600
€ 8.50
13
1329533010
ref: 13
O RING
1329533010
€ 4.50
14
1326835010
ref: 14
SPRING
1326835010
€ 3.00
15
1337346710
ref: 15
PLATE,NEEDLE VALVE FITING
1337346710
€ 4.50
16
0211203066
ref: 16
SCREW
€ 2.00
17
1325401010
ref: 17
PIN,FLOAT
1325401010
€ 3.00
18
1337005320
ref: 18
VALVE ASSY,NEEDLE
1337005320
€ 59.50
19
1325005230
ref: 19
FROM 13252-05320
FLOAT
1325005230
€ 24.00
20
0949400490
ref: 20
JET,NEEDLE(N-8)
0949400490
€ 12.00
21
0949120017
ref: 21
JET,MAIN
0949120017
€ 10.50
22
1338344A00
ref: 22
NEEDLE,JET
1338344A00
€ 13.50
23
1338544A00
ref: 23
PIPE
€ 19.00
24
1325105320
ref: 24
GASKET (NAS)
1325105320
€ 9.00
25
1324702340
ref: 25
PLUG,DRAIN
1324702340
€ 5.50
26
0211204167
ref: 26
SCREW
0211204167
€ 1.00
27
0832121047
ref: 27
WASHER,LOCK 4M
0832121047
€ 2.00
28
0949230007
ref: 28
JET,PILOT(30)
0949230007
€ 7.00
29
1368444A00
ref: 29
HOSE
€ 6.50
30
1368422A00
ref: 30
L:550-275
HOSE
€ 13.00
31
1324643010
ref: 31
O RING
1324643010
€ 4.00
32-1
1355144A20
ref: 32-1
E1
VALVE,PISTON
1355144A20
€ 47.50
32-2
1355144A00
ref: 32-2
E2,E4,E15,E18,E21,E2
VALVE,PISTON
€ 0.00
33
1327947080
ref: 33
5/8
SCREW,PILOT AIR
1327947080
€ 11.50
34
1326847070
ref: 34
SPRING
1326847070
€ 5.00
35
1327744080
ref: 35
GASKET
€ 2.00
36
1329529900
ref: 36
FROM 13278-44080
O RING,PILOT AIR SCREW
1329529900
€ 4.00
37
1341105320
ref: 37
PLUNGER ASSY
1341105320
€ 18.00
38
1327802330
ref: 38
O RING
1327802330
€ 2.00
39
1341747070
ref: 39
SPRING
1341747070
€ 4.00
40
1368231210
ref: 40
CAP,STARTER VALVE
1368231210
€ 5.00
41
1341805320
ref: 41
HOLDER
1341805320
€ 7.00
42
1341305320
ref: 42
LEVER
1341305320
€ 16.00
43
1360122A00
ref: 43
SCREW
€ 3.00
44
1342105320
ref: 44
PLATE
1342105320
€ 3.00
45
1343205320
ref: 45
RING
1343205320
€ 6.00
46
1358947070
ref: 46
WASHER
1358947070
€ 3.00
47
1342405320
ref: 47
RING
1342405320
€ 8.00
48
0832121086
ref: 48
WASHER,LOCK,8.
0832121086
€ 2.50
