GEAR SHIFTING

DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)

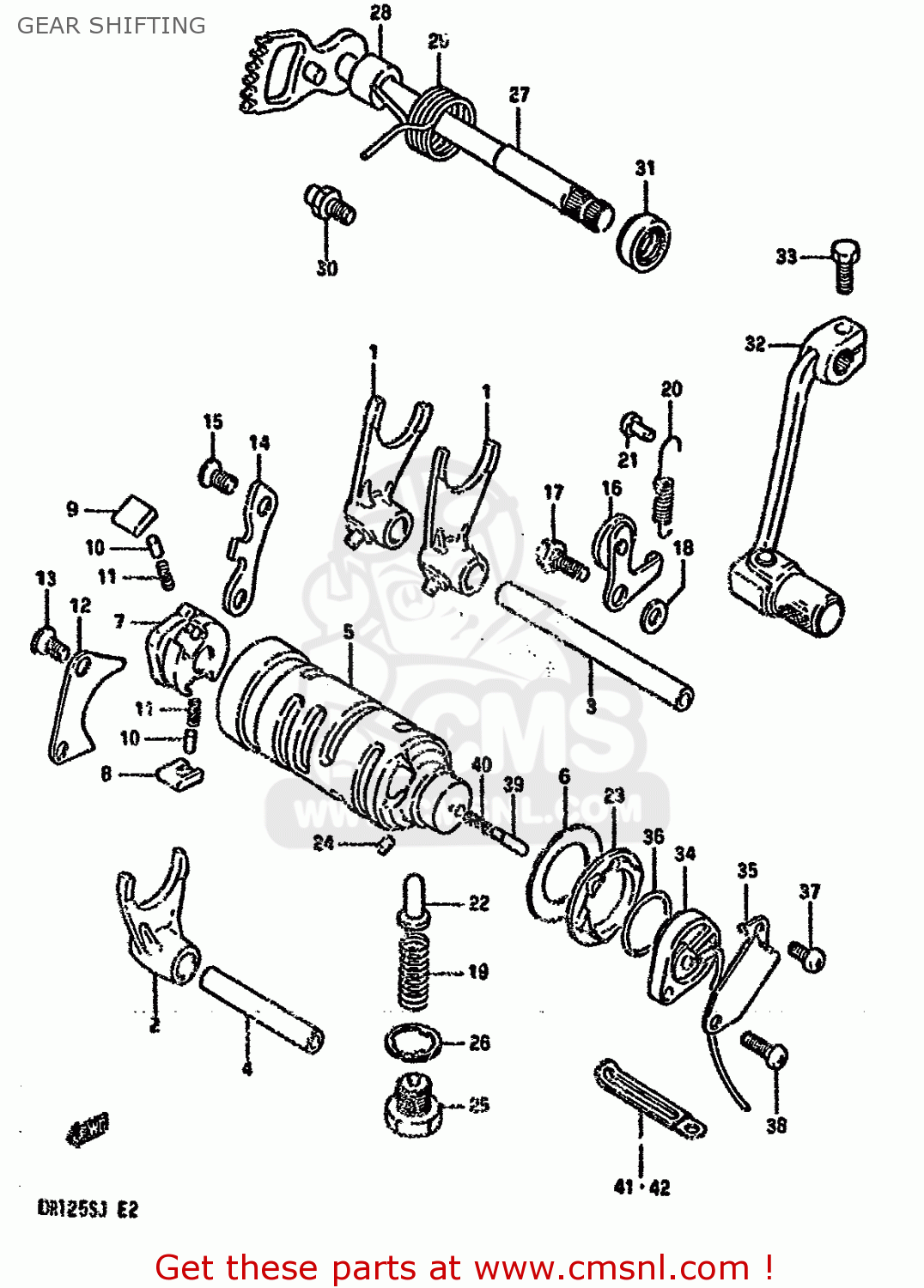

Gear shifting diagram DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)

GEAR SHIFTING DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)
GEAR SHIFTING DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)
GEAR SHIFTING DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
2521105200
ref: 1
FORK,GEAR SHIFT NO.1
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541116701
ref: 3
SHAFT,GEAR SHIFT FORK(L:109)
2541116701
€ 11.50
4
2542135401
ref: 4
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531044A00
ref: 5
CAM,GEAR SHIFT
€ 166.50
6
0821125401
ref: 6
WASHER,THRUST
0821125401
€ 2.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8-1
2532334200
ref: 8-1
MODEL F/H
PAWL,GEAR SHIFT NO.1
€ 6.00
8-2
2532334201
ref: 8-2
MODEL J
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9-1
2532434200
ref: 9-1
MODEL F/H
PAWL,GEAR SHIFT NO.2
€ 6.00
9-2
2532434201
ref: 9-2
MODEL J
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
2533130001
€ 3.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
SCREW
0212206128
€ 3.00
16
2535044A00
ref: 16
STOPPER,GEAR SHIFT CAM
2535044A00
€ 8.00
17
0911106019
ref: 17
BOLT
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19
0944011014
ref: 19
SPRING
0944011014
€ 1.50
20
0944308044
ref: 20
SPRING
0944308044
€ 1.50
21
0922304001
ref: 21
RIVET
0922304001
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0924714012
ref: 25
PLUG (14X12)
0924714012
€ 3.50
26
0916814004
ref: 26
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
2551005201
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426001
ref: 29
SPRING
0944426001
€ 4.00
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
31
0928512002
ref: 31
OIL SEAL
0928512002
€ 7.00
32
2560037211
ref: 32
LEVER ASSEMBLY,GEAR SHIFTING
€ 26.00
33
0910006100
ref: 33
BOLT
€ 2.00
34
3772042A00
ref: 34
BASE ASSEMBLY,GEAR SHIFT TERMINAL
3772042A00
€ 21.00
35
3772142A00
ref: 35
PROTECTOR,GEAR SHIFT SW
3772142A00
€ 3.00
36
0928022014
ref: 36
O-RING (D:2.4 ID:22.2)
€ 3.50
37
0211205086
ref: 37
SCREW
€ 2.00
38
0211205166
ref: 38
SCREW
€ 2.00
39
0920905011
ref: 39
PIN(5X15.5)
0920905011
€ 2.00
40
0944004010
ref: 40
SPRING
0944004010
€ 1.50
41
0940406422
ref: 41
CLAMP
€ 2.50
42
0940406417
ref: 42
CLAMP
€ 3.00
