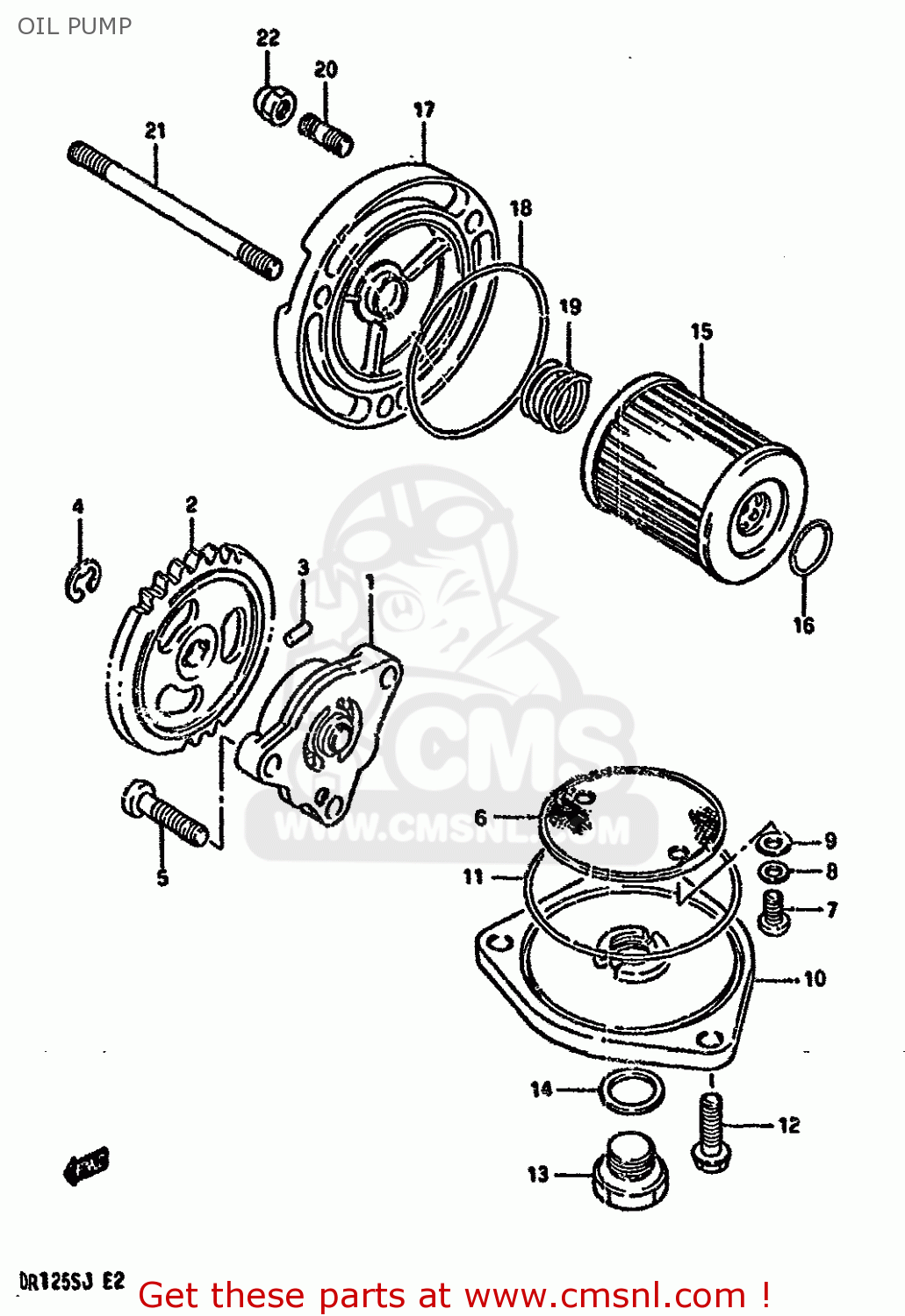

OIL PUMP

ref

part #

description

quantity

1

1640042A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 100.50

2

1633142A00
ref: 2

GEAR,OIL PUMP DRIVEN (N

€ 24.00

3

0926102008
ref: 3

PIN(2.5X11.8)

€ 1.50

4

0833211068
ref: 4

E RING 6MM

€ 2.00

5

0211206256
ref: 5

SCREW

€ 1.50

6

1652005202
ref: 6

STRAINER,ENGINE OIL

€ 4.50

7

0211205126
ref: 7

SCREW 5X12

€ 1.50

8

0832121056
ref: 8

LOCK WASHER

€ 3.00

9

0832221056
ref: 9

WASHER

€ 2.50

10

1652305200
ref: 10

CAP,OIL STRAINER

€ 9.00

11

0928060005
ref: 11

O RING(D:2.4,ID:60.5)

€ 3.00

12

0154706207
ref: 12

BOLT

€ 2.50

13

0924714001
ref: 13

PLUG

€ 5.00

14

0916814004
ref: 14

GASKET(14X19.2X2) (NAS)

€ 2.50

15

1651024501
ref: 15

FILTER,OIL

€ 8.50

16

0928013004
ref: 16

O RING(D:1.9,ID:13)

€ 2.50

17-1

1651242A00
ref: 17-1
MODEL F

CAP,OIL FILTER

€ 21.50

17-2

1651242A10
ref: 17-2
MODEL H/J

CAP,OIL FILTER

€ 43.00

18

0928054001
ref: 18

O RING(D:2.4,ID:52.6)

€ 4.00

19

0944018002
ref: 19

SPRING

€ 1.50

20

0142106128
ref: 20

STUD 6X12

€ 1.50

21

0142106908
ref: 21

STUD BOLT

€ 4.50

22

0831311065
ref: 22

NUT 6MM

€ 2.00
