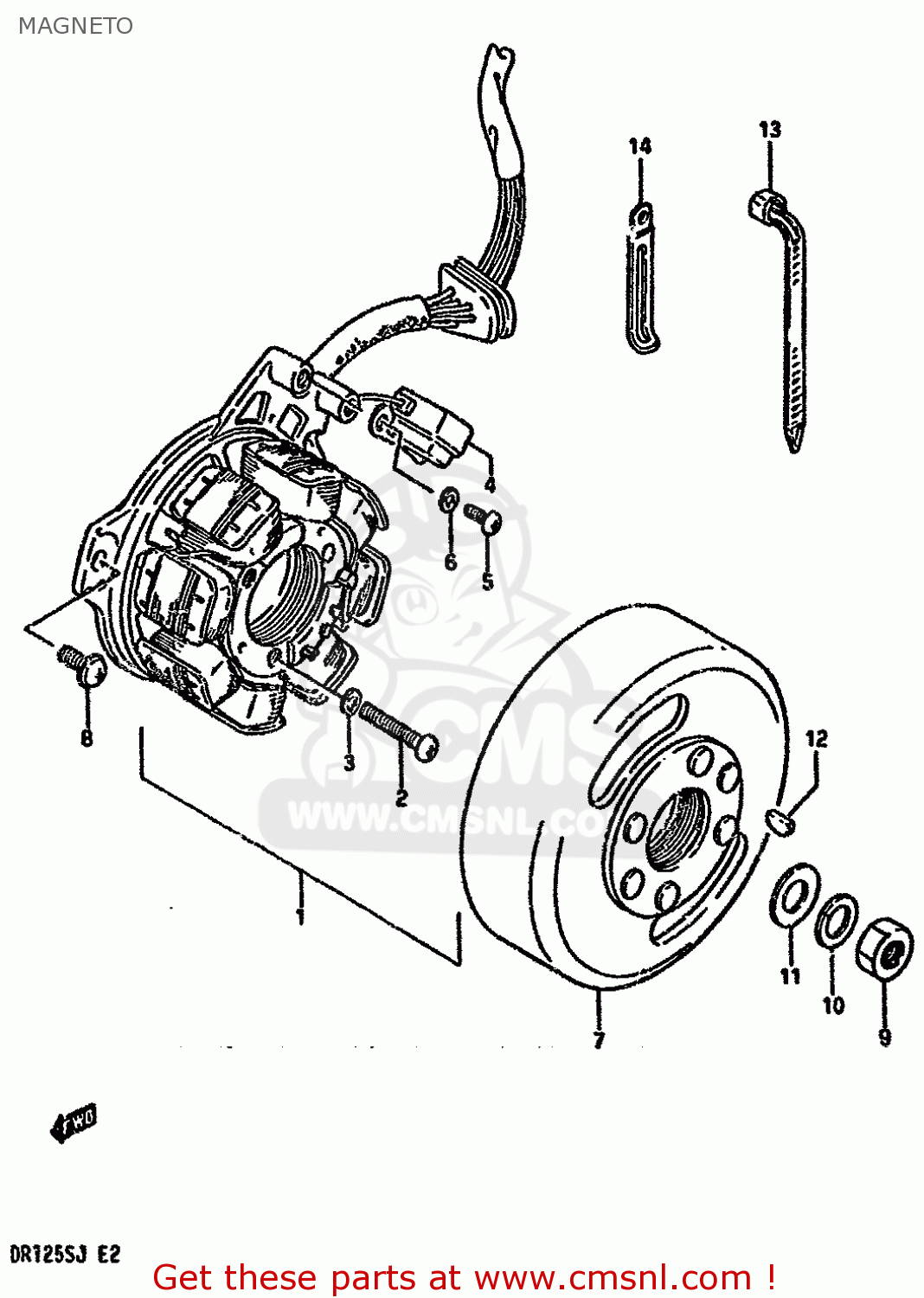

MAGNETO

ref

part #

description

quantity

1-1

3210144A11
ref: 1-1
MODEL F E1

STATOR ASSEMBLY

€ 426.50

1-2

3210144A12
ref: 1-2
MODEL H E1

STATOR ASSEMBLY

€ 426.50

1-3

3210144A01
ref: 1-3
MODEL F E2,E4,E18,E2

STATOR ASSY

€ 365.50

1-4

3210144A02
ref: 1-4
MODEL H/J E2,E4,E15,

STARTER ASSY

€ 365.50

2

0211205308
ref: 2

SCREW

€ 1.50

3

0832121057
ref: 3

LOCK WASHER

€ 2.00

4

3215022A01
ref: 4

COIL,PICK UP

€ 66.50

5

0211204128
ref: 5

SCREW

€ 1.50

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7-1

3210244A11
ref: 7-1
MODEL F E1

ROTOR ASSEMBLY

€ 246.50

7-2

3210244A12
ref: 7-2
MODEL H E1

ROTOR

€ 246.50

7-3

3210244A01
ref: 7-3
MODEL F E2,E4,E15,E1

ROTOR,FLYWHEEL

€ 319.50

7-4

3210244A02
ref: 7-4
MODEL H/J E2,E4,E15,

ROTOR ASSY

€ 319.50

8

0913905011
ref: 8

SCREW(5X14)

€ 3.00

9

0914010003
ref: 9

NUT (10MM)

€ 3.50

10

0832121107
ref: 10

WASHER,LOCK,10

€ 2.00

11

0832221108
ref: 11

WASHER

€ 2.50

12

0834131039
ref: 12

KEY

€ 2.00

13

0940714403
ref: 13
MODEL F

CLAMP(L:125)

€ 2.50

14

0940406404
ref: 14

CLAMP

€ 3.00

all assemblies
