KICK STARTER

DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)

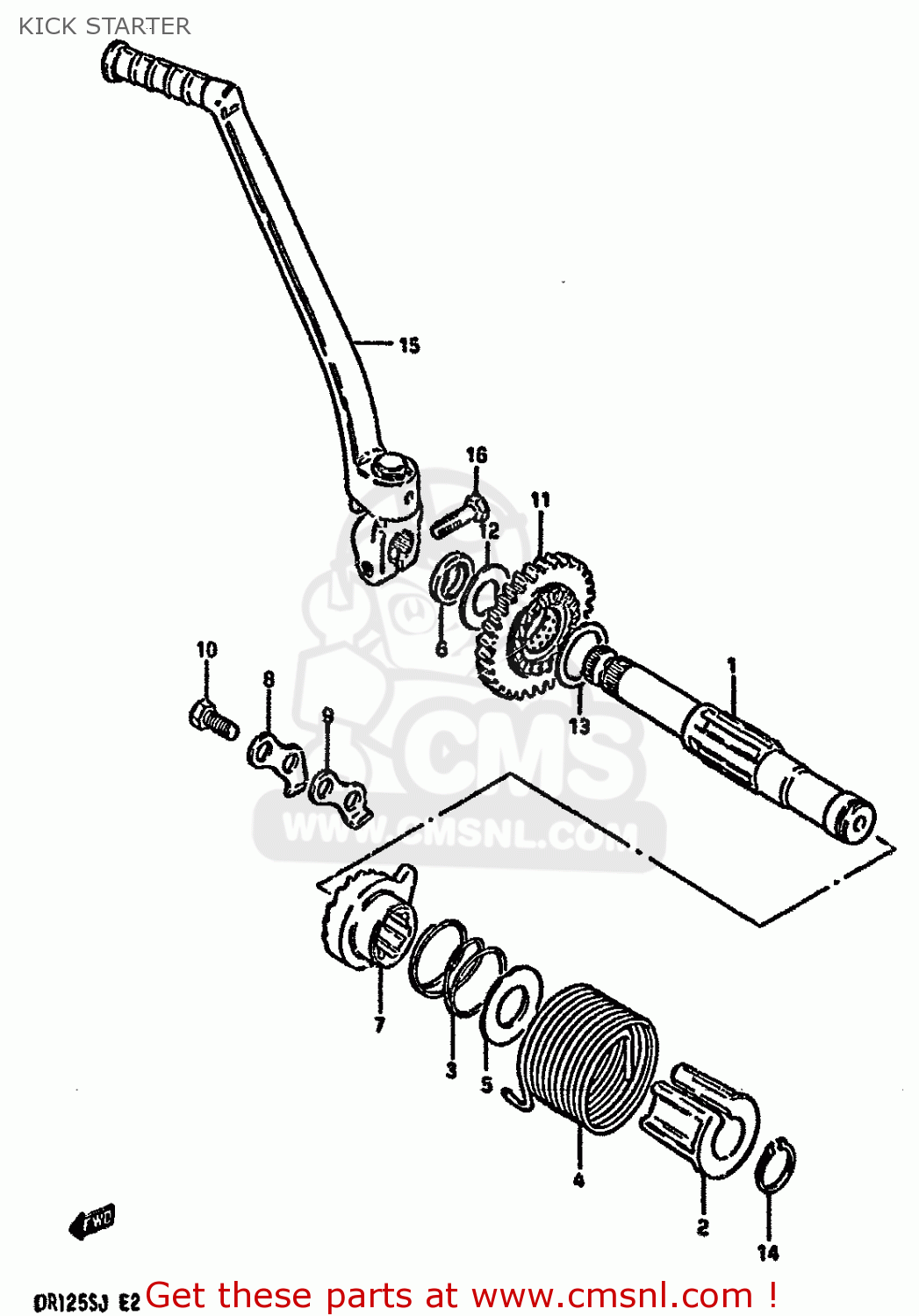

Kick starter diagram DR125S 1987 (H) (E01 E02 E04 E15 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

2621105202
ref: 1

SHAFT,KICK STARTER

€ 46.00

2622105200
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 4.50

0944032006
ref: 3

SPRING

€ 1.50

0944845003
ref: 4

SPRING

€ 4.50

0821117341
ref: 5

WASHER

€ 2.00

0928516003
ref: 6

SEAL,OIL(16X24X5)

€ 3.00

2623138201
ref: 7

STARTER,KICK

€ 25.50

2623238200
ref: 8

GUIDE,KICK STARTER

€ 4.00

2623332400
ref: 9

STOPPER,KICK STARTER

€ 3.00

0110708207
ref: 10

BOLT

€ 3.00

2624005201
ref: 11

GEAR,KICK STARTER DRIVE

€ 54.00

0916016003
ref: 12

WASHER(16X30X1)

€ 2.50

0821120261
ref: 13

WASHER

€ 2.50

0938017001
ref: 14

CIRCLIP

€ 2.00

2630042A00
ref: 15

LEVER ASSY,KICK STARTER

€ 44.50

0910008193
ref: 16

BOLT 8X25

€ 2.50
