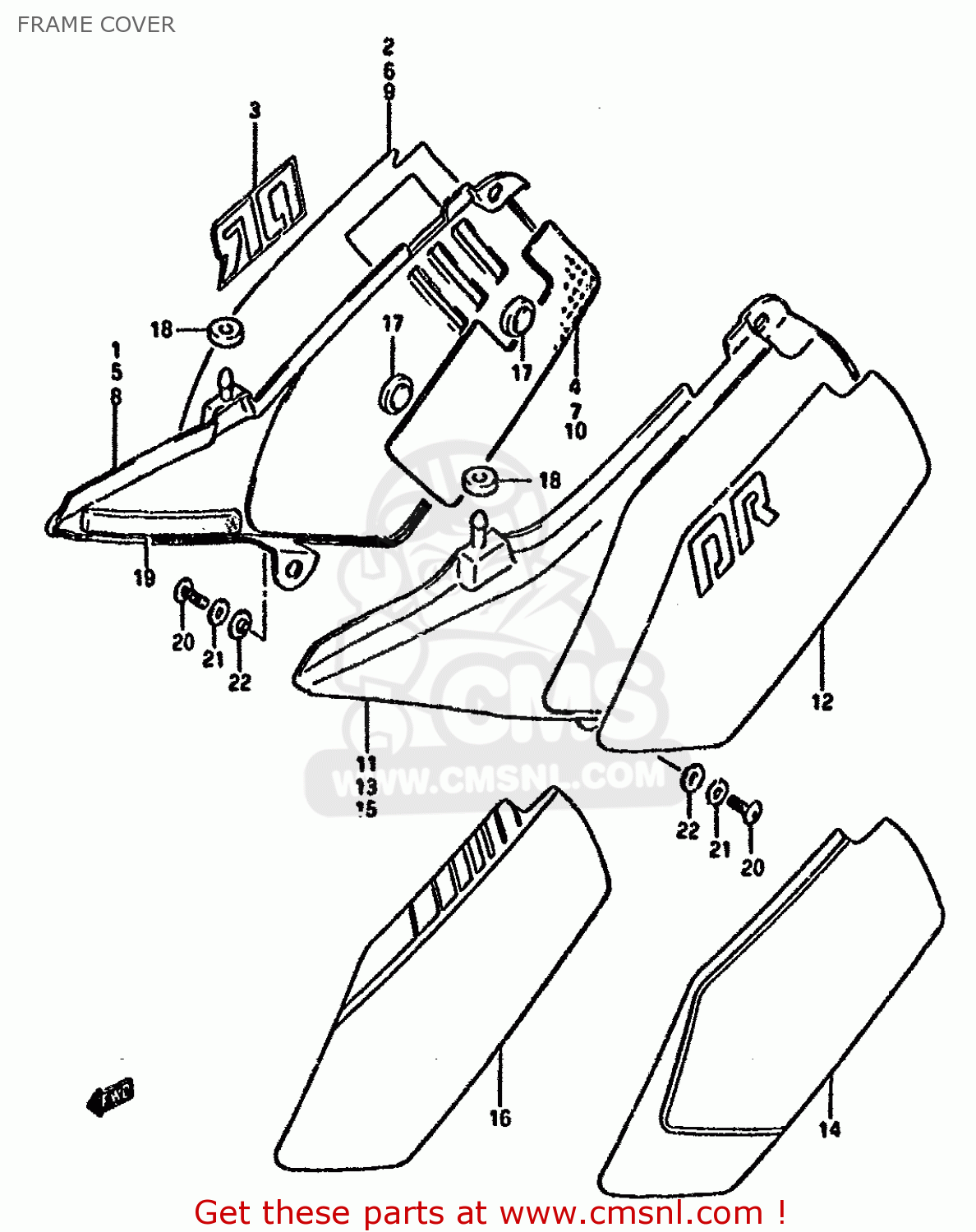

FRAME COVER

ref

part #

description

quantity

1-1

4711044A0010V
ref: 1-1
MODEL F

COVER,FRAME RH (WHITE)

€ 90.00

1-2

4711044A0019F
ref: 1-2
MODEL F

COVER,FRAME RH (BLUE)

€ 90.00

1-3

4711044A0021C
ref: 1-3
MODEL F

COVER,FRAME RH (BLACK)

€ 90.00

1-4

4711044A0014C
ref: 1-4
MODEL F

COVER,FRAME RH (RED)

€ 90.00

1-5

4711044A00163
ref: 1-5
MODEL F E2

COVER,FRAME,RIGHT

€ 90.00

2-1

6813044A2099V
ref: 2-1
MODEL F,FOR 10V

TAPE SET,FRAME COVER RH

€ 40.50

2-2

6813044A2073K
ref: 2-2
MODEL F,FOR 19F,14C,

TAPE SET,FRAME COVER,RIGHT

€ 0.00

2-3

6813044A2072H
ref: 2-3
MODEL F,FOR 21C

TAPE SET,FRAME COVER RH

€ 0.00

3-1

6813144A2099V
ref: 3-1
MODEL F,FOR 10V

EMBLEM

€ 6.00

3-2

6813144A2073K
ref: 3-2
MODEL F,FOR 19F,14C,

EMBLEM,RIGHT

€ 0.00

3-3

6813144A2072H
ref: 3-3
MODEL F,FOR 21C

EMBLEM,RH

€ 0.00

4

4716642A00
ref: 4
MODEL F

SHIELD,FRAME COVER,RIGHT

€ 0.00

5-1

4711042A6014L
ref: 5-1
MODEL H

COVER,FRAME RH (WHITE)

€ 90.00

5-2

4711042A6021C
ref: 5-2
MODEL H

COVER,FRAME RH (BLACK)

€ 90.00

5-3

4711042A6034S
ref: 5-3
MODEL H

COVER,FRAME RH (BLUE)

€ 90.00

6-1

6813042A207MS
ref: 6-1
MODEL H,FOR 14L

TAPE SET,FRAME COVER RH

€ 31.00

6-2

6813042A209DK
ref: 6-2
MODEL H,FOR 21C

TAPE SET,FRAME COVER RH

€ 0.00

6-3

6813042A209DJ
ref: 6-3
MODEL H,FOR 34S

TAPE SET,FRAME COVER RH

€ 0.00

7

4716642A00
ref: 7
MODEL H

SHIELD,FRAME COVER,RIGHT

€ 0.00

8-1

4711042A7014L
ref: 8-1
MODEL J

COVER,FRAME,R(WHITE)

€ 76.50

8-2

4711042A7021C
ref: 8-2
MODEL J

COVER,FRAME,R(BLACK)

€ 0.00

8-3

4711042A7034S
ref: 8-3
MODEL J

COVER,FRAME,R(BLUE)

€ 64.00

9-1

6813544A009YE
ref: 9-1
MODEL J FOR 14L

TAPE,FRAME COVER RH

€ 34.00

9-2

6813544A009DK
ref: 9-2
MODEL J FOR 21C

TAPE,FRAME COVER RH

€ 0.00

9-3

6813544A009DJ
ref: 9-3
MODEL J FOR 34S

TAPE,FRAME COVER,R

€ 0.00

10

4716642A00
ref: 10
MODEL H

SHIELD,FRAME COVER,RIGHT

€ 0.00

11-1

4721044A0010V
ref: 11-1
MODEL F

COVER,FRAME LH (WHITE)

€ 75.50

11-2

4721044A0019F
ref: 11-2
MODEL F

COVER,FRAME LH (BLUE)

€ 75.50

11-3

4721044A0021C
ref: 11-3
MODEL F

COVER,FRAME LH (BLACK)

€ 75.50

11-4

4721044A0014C
ref: 11-4
MODEL F

COVER,FRAME LH (RED)

€ 75.50

11-5

4721044A00163
ref: 11-5
MODEL F E2

COVER,FRAME,LEFT

€ 75.50

12-1

6814044A0099V
ref: 12-1
MODEL F,FOR 10V

TAPE SET,FRAME COVER LH

€ 0.00

12-2

6814044A0073K
ref: 12-2
MODEL F,FOR 19F,14C,

TAPE SET,FRAME COVER,LEFT

€ 0.00

12-3

6814044A0072H
ref: 12-3
MODEL F,FOR 21C

TAPE SET,FRAME COVER LH

€ 0.00

13-1

4721042A6014L
ref: 13-1
MODEL H

COVER,FRAME LH (WHITE)

€ 75.50

13-2

4721042A6021C
ref: 13-2
MODEL H

COVER,FRAME LH (BLACK)

€ 75.50

13-3

4721042A6034S
ref: 13-3
MODEL H

COVER,FRAME LH (BLUE)

€ 75.50

14-1

6814042A207MS
ref: 14-1
MODEL H,FOR 14L

TAPE SET,FRAME COVER LH

€ 0.00

14-2

6814042A209DK
ref: 14-2
MODEL H,FOR 21C

TAPE SET,FRAME COVER LH

€ 0.00

14-3

6814042A209DJ
ref: 14-3
MODEL H,FOR 34S

TAPE SET,FRAME COVER LH

€ 0.00

15-1

4721042A7014L
ref: 15-1
MODEL J

COVER,FRAME,L(WHITE)

€ 65.50

15-2

4721042A7021C
ref: 15-2
MODEL J

COVER,FRAME,L(BLACK)

€ 65.50

15-3

4721042A7034S
ref: 15-3
MODEL J

COVER,FRAME,L(BLUE)

€ 64.00

16-1

6814544A009YE
ref: 16-1
MODEL J FOR 14L

TAPE,FRAME COVER,L

€ 28.50

16-2

6814544A009DK
ref: 16-2
MODEL J FOR 21C

TAPE,FRAME COVER LH

€ 0.00

16-3

6814544A009DJ
ref: 16-3
MODEL J FOR 34S

TAPE,FRAME COVER LH

€ 0.00

17

0932110018
ref: 17

CUSHION

€ 5.00

18

4716114A00
ref: 18

CUSHION,SIDE COVER BOSS

€ 2.50

19

4716142A00
ref: 19

CUSHION,FRAME COVER

€ 5.00

20

0214206164
ref: 20

SCREW

€ 2.50

21

0916006039
ref: 21

WASHER (6.5X18X1.6)

€ 2.00

22

0916906028
ref: 22

WASHER

€ 2.00
