CAM SHAFT - VALVE (MODEL R/S/T)
DR350SE 1993 (P) USA (E03)

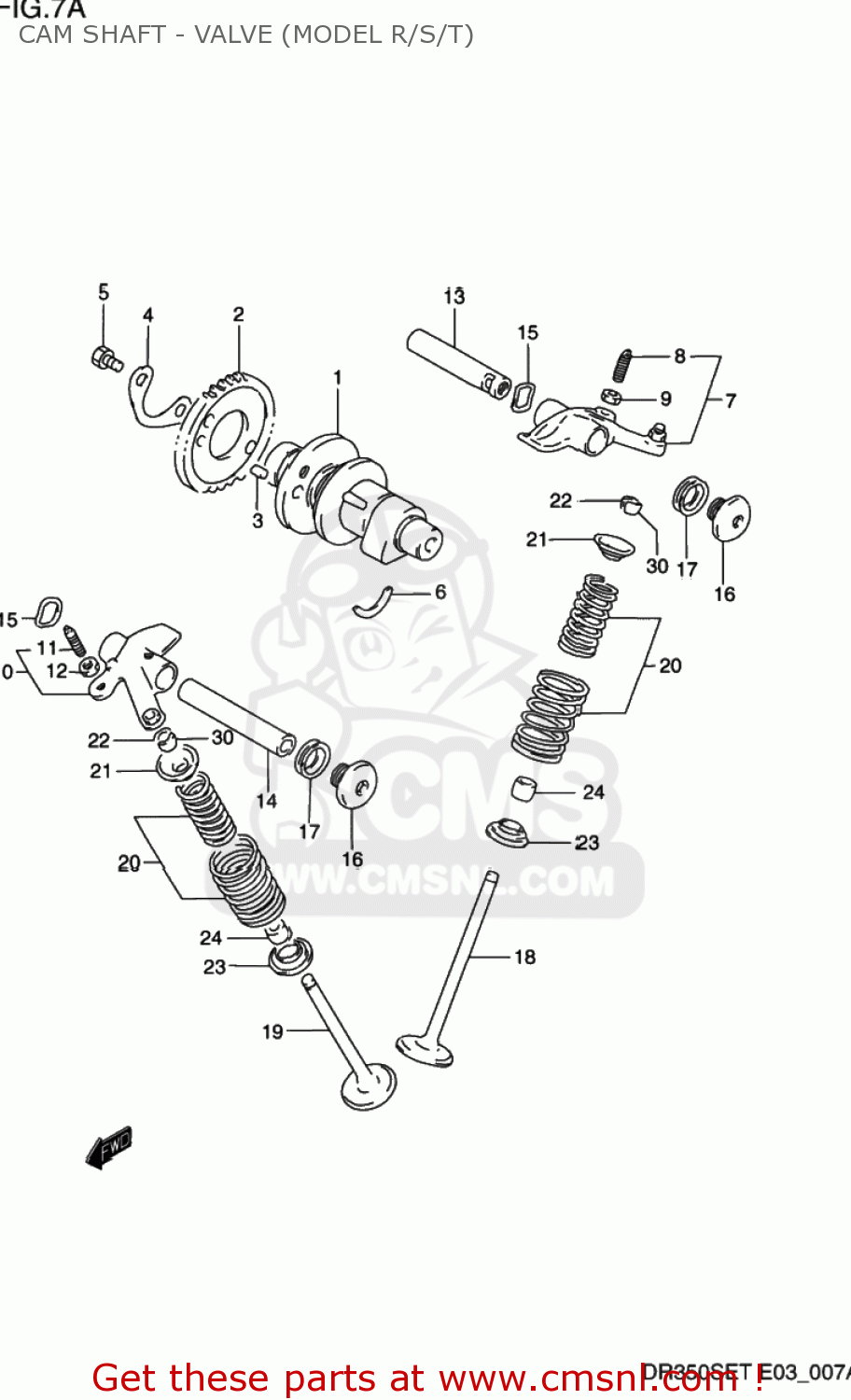

Cam shaft - valve (model r/s/t) diagram DR350SE 1993 (P) USA (E03)
CAM SHAFT - VALVE (MODEL R/S/T) DR350SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271014D60
ref: 1
12710-14D70
SHAFT COMP,CAM
€ 401.50
2
1274114D50
ref: 2
SPROCKET,CAMSHAFT
€ 37.50
3
0926105005
ref: 3
PIN(5X8)
€ 1.50
4
1274744B00
ref: 4
WASHER,SPROCKET
€ 2.00
5
0911106032
ref: 5
BOLT(6X10.5)
€ 2.00
6
0939022002
ref: 6
C RING
€ 2.00
7
1284014D50
ref: 7
12840-15G00
ARM,VALVE ROCKER,INTAKE
€ 93.00
8
1284217C50
ref: 8
SCREW,TAPPET ADJUSTING
€ 13.50
9
1284327A00
ref: 9
NUT,TAPPET ADJUSTING
€ 3.00
10
1285014D50
ref: 10
ARM,VALVE ROCKER EXHAUST
€ 101.50
11
1284217C50
ref: 11
SCREW,TAPPET ADJUSTING
€ 13.50
12
1284327A00
ref: 12
NUT,TAPPET ADJUSTING
€ 3.00
13
1286114D50
ref: 13
SHAFT,VALVE ROCKER ARM INTAKE
€ 20.00
14
1287114D50
ref: 14
SHAFT,VALVE ROCKER ARM EXHAUST
€ 18.00
15
0916412018
ref: 15
WASHER
€ 1.50
16
0924814005
ref: 16
PLUG,14X12
€ 5.00
17
0916814002
ref: 17
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
18
1291114D01
ref: 18
12911-14D10
VALVE,INTAKE
€ 25.00
19
1291214D01
ref: 19
VALVE,EXHAUST
€ 45.50
20
1292006B00
ref: 20
SPRING SET,VALVE
€ 14.00
21
1293127A01
ref: 21
RETAINER,VALVE SPRING
€ 5.50
22
1293227A00
ref: 22
COTTER VALVE
€ 2.50
23
1293381400
ref: 23
SEAT,VALVE SPRING
€ 4.00
24
0928905011
ref: 24
SEAL,OIL(5X10X9.7)
€ 6.00
