Buy Suzuki DR Parts Online


REAR FENDER (MODEL R/S/T)

DR350SE 1993 (P) USA (E03)

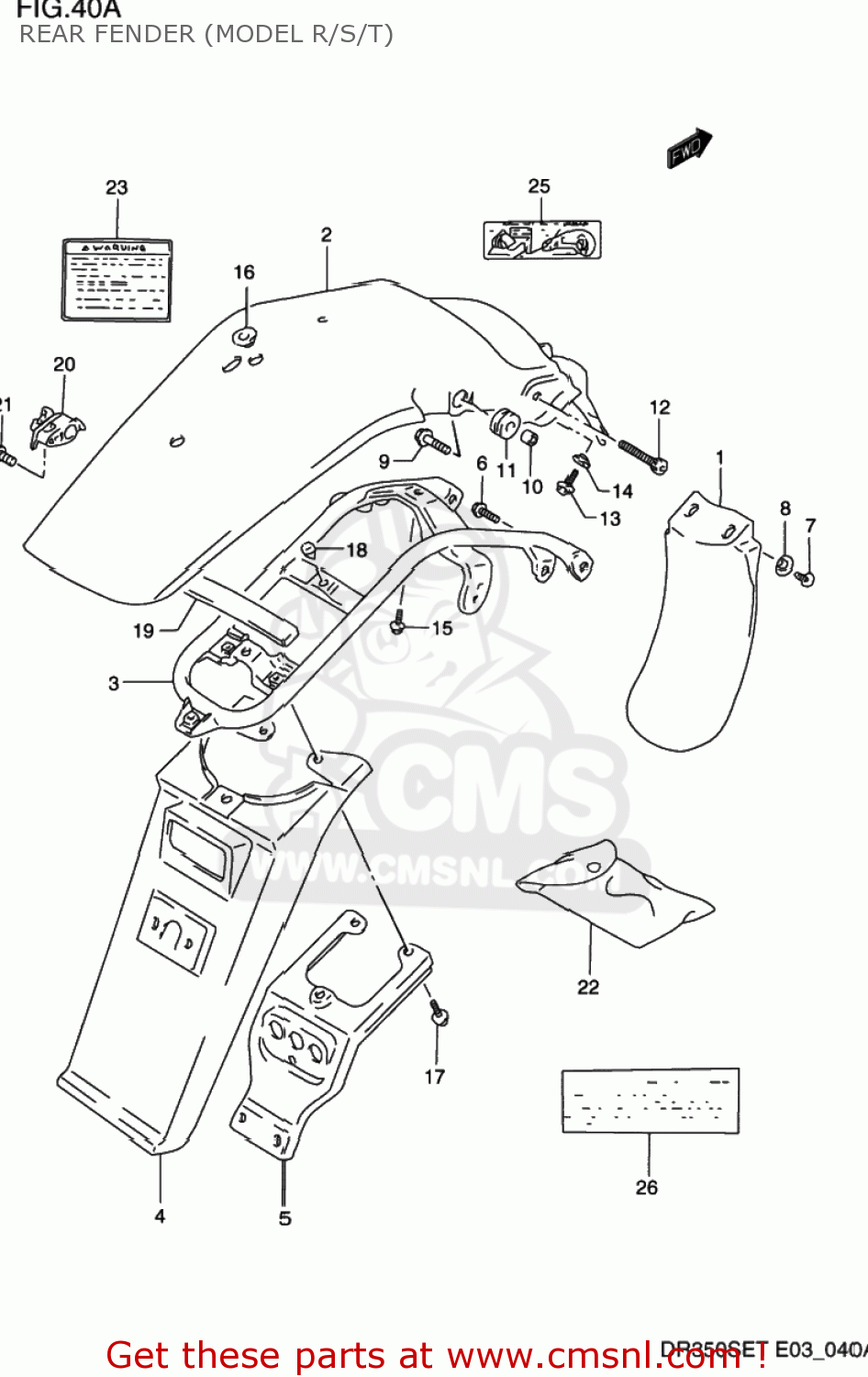

Rear fender (model r/s/t) diagram DR350SE 1993 (P) USA (E03)

REAR FENDER (MODEL R/S/T) DR350SE 1993 (P) USA (E03)
REAR FENDER (MODEL R/S/T) DR350SE 1993 (P) USA (E03)
REAR FENDER (MODEL R/S/T) DR350SE 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6311214D00
ref: 1
BODY,RR FENDER FR
6311214D00
€ 19.00
2
6311314D2330H
ref: 2
BODY,RR FENDER RR
€ 112.50
2
6311314D2330H
ref: 2
BODY,RR FENDER RR
€ 112.50
3
6312014D11
ref: 3
REINF,RR FENDER
€ 104.50
4
6331103D20
ref: 4
EXTENSION,RR FENDER
€ 0.00
5
6332003D03
ref: 5
REINFORCEMENT,RR FENDER EXT
€ 44.00
6-1
0910308291
ref: 6-1
09103-08382
BOLT
€ 3.00
6-2
0910308275
ref: 6-2
09103-08382
BOLT 8X12
€ 3.00
7
0214206123
ref: 7
02142-0612A
SCREW 6X12
0214206123
€ 2.00
8
0916906045
ref: 8
09169-06055
WASHER
0916906045
€ 2.50
9
0910308292
ref: 9
BOLT(8X30)
€ 3.00
10
0918008030
ref: 10
09180-08187
SPACER (8.8X12X7)
0918008030
€ 3.50
11
0932012011
ref: 11
CUSHION
0932012011
€ 3.00
12
0910608105
ref: 12
BOLT(8X30)
0910608105
€ 3.00
13
0155006163
ref: 13
01550-0616A
BOLT
0155006163
€ 2.50
14
0916906038
ref: 14
WASHER
0916906038
€ 2.50
15
0158008163
ref: 15
01580-0816A
BOLT
0158008163
€ 3.00
16
0916014032
ref: 16
WASHER(14.2X26X1.2)
€ 1.50
17
0158006163
ref: 17
01580-0616A
BOLT
0158006163
€ 2.50
18
0932106013
ref: 18
CUSHION
0932106013
€ 2.50
19
6319144A00
ref: 19
CUSHION(25X185X15)
€ 4.00
19
6319144A00
ref: 19
CUSHION(25X185X15)
€ 4.00
20
9570003810
ref: 20
95700-03811
LOCK SET,HELMET
9570003810
€ 59.50
21
0211205123
ref: 21
02112-0512A
SCREW
0211205123
€ 1.50
22-1
0980021024
ref: 22-1
TOOL ASSY
0980021024
€ 55.00
22-2
0980021034
ref: 22-2
TOOL ASSY
€ 55.00
23-1
6831915D00
ref: 23-1
68319-33E01
LABEL
€ 8.00
23-2
6831933E00
ref: 23-2
68319-33E01
LABEL (WARNING SAFETY),E
6831933E00
€ 8.00
24
6833214D00
ref: 24
LABEL (TIRE AIR PRESSURE)
€ 0.00
25
6838715D00
ref: 25
LABEL,PIPING DIAG
€ 0.00
26
6835326E01
ref: 26
68353-26E02
LABEL (MANUAL NOTICE)
€ 3.50
27-1
9901114D9003A
ref: 27-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
27-2
9901114D9103A
ref: 27-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
27-3
9901114D9203A
ref: 27-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
27-3
9901114D9203A
ref: 27-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
