STARTING MOTOR (MODEL T)
DR350SE 1993 (P) USA (E03)

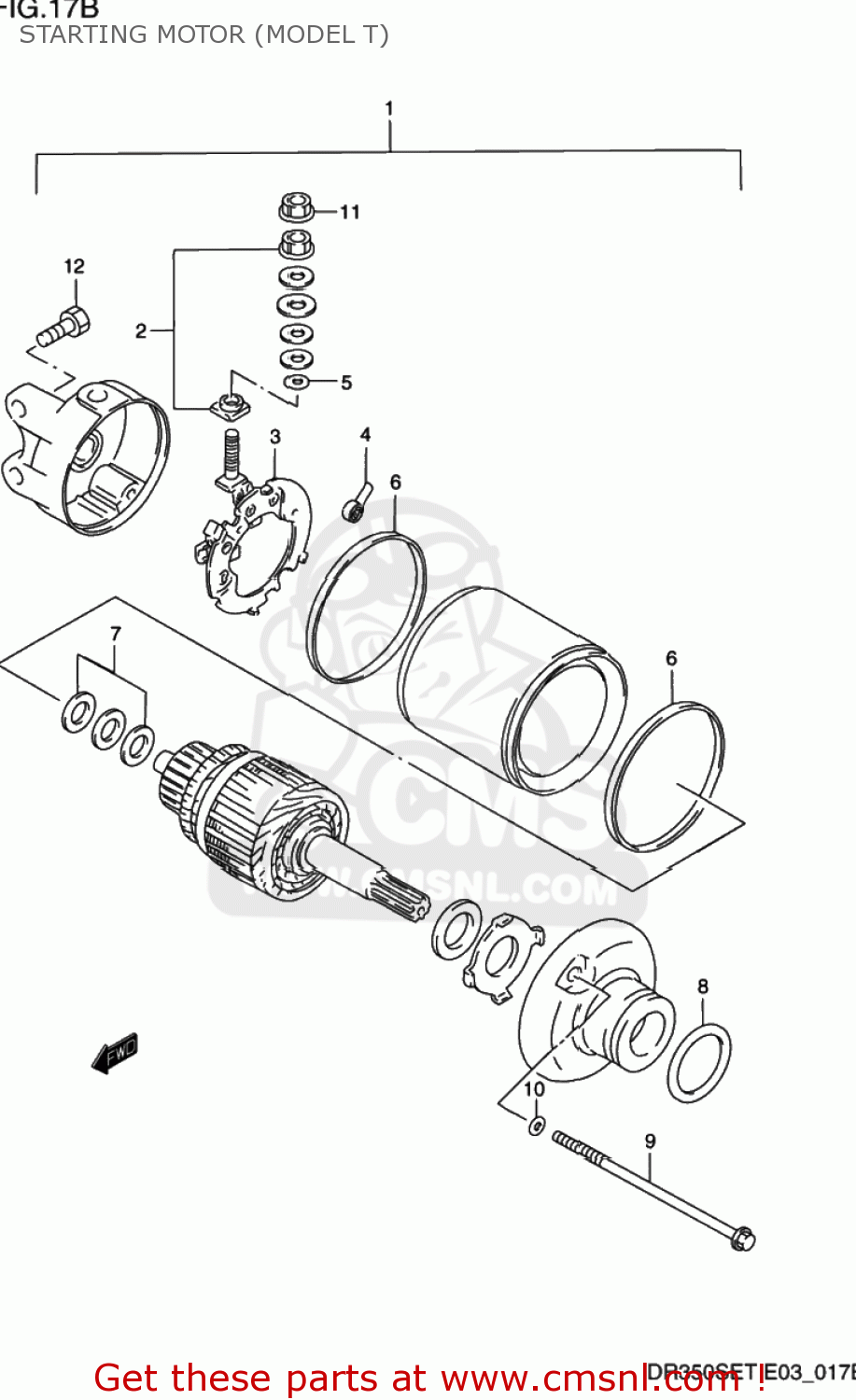

Starting motor (model t) diagram DR350SE 1993 (P) USA (E03)
STARTING MOTOR (MODEL T) DR350SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110015D10
ref: 1
MOTOR ASSY,STARTING
€ 563.50
2
3113013E00
ref: 2
BRUSH TERMINAL SET
€ 42.50
3
3113233E00
ref: 3
BRUSH HOLDER SET
€ 57.00
4
3113531300
ref: 4
SPRING,BRUSH
€ 4.00
5
3114349040
ref: 5
O RING
€ 3.00
6
3115613E00
ref: 6
O RING
€ 3.00
7
3117019B10
ref: 7
SHIM SET,STARTING MOTOR
€ 8.00
8
3126413E00
ref: 8
O RING
€ 6.00
9
3128015D10
ref: 9
SET,BOLT ASSY
€ 16.50
10
0928024003
ref: 10
O RING(D:3,ID:24.5)
€ 2.00
11
0836135068
ref: 11
08361-3506A
NUT
€ 2.00
12
0713006203
ref: 12
07130-0620B
BOLT,CRKCASE,R
€ 3.00
