LEFT HANDLE LEVER (MODEL R/S/T)
DR350SE 1993 (P) USA (E03)

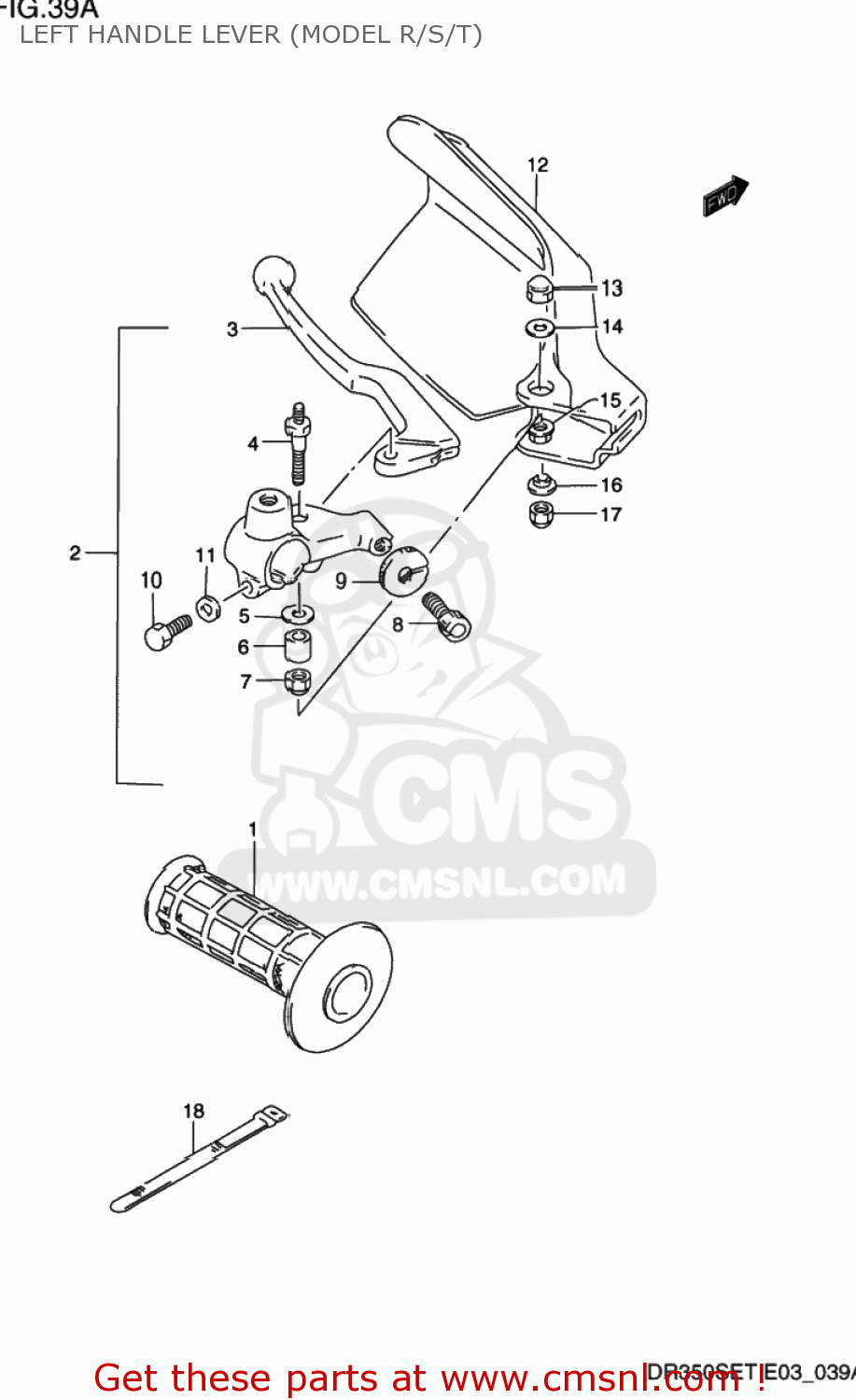

Left handle lever (model r/s/t) diagram DR350SE 1993 (P) USA (E03)
LEFT HANDLE LEVER (MODEL R/S/T) DR350SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
€ 11.00
2
5750015D11
ref: 2
LEVER ASSY,CLUTCH
€ 53.50
3
5762015D11
ref: 3
LEVER,CLUTCH
€ 26.00
4
5753144B00
ref: 4
57531-44B01
BOLT,LEVER SET
€ 6.50
5
0832201067
ref: 5
WASHER
€ 2.00
6
5753244B00
ref: 6
SPACER,LEVER SET
€ 3.50
7
0831921065
ref: 7
08319-2106B
NUT
€ 2.50
8
5744144400
ref: 8
ADJUSTER,CABLE
€ 5.50
9
5744244B00
ref: 9
NUT,LOCK
€ 11.50
10
0150006207
ref: 10
BOLT
€ 2.00
11
0832201067
ref: 11
WASHER
€ 2.00
12-1
5754131D000NF
ref: 12-1
57541-31D30-0NF
COVER,KNUCKLE,LEFT
€ 25.50
12-2
5754131D00Z16
ref: 12-2
57541-31D30-Z16
COVER,KNUCKLE,LEFT
€ 26.00
13
0831310063
ref: 13
08313-1006A
NUT
€ 2.00
14
0916006066
ref: 14
WASHER(6.5X20X1.6)
€ 2.00
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
€ 1.50
16
0916906040
ref: 16
WASHER
€ 2.00
17
0831921068
ref: 17
08319-2106A
NUT 6MM
€ 2.00
18
0940712402
ref: 18
CLAMP(L:120)
€ 3.00
