FRONT WHEEL
DR350SE 1993 (P) USA (E03)

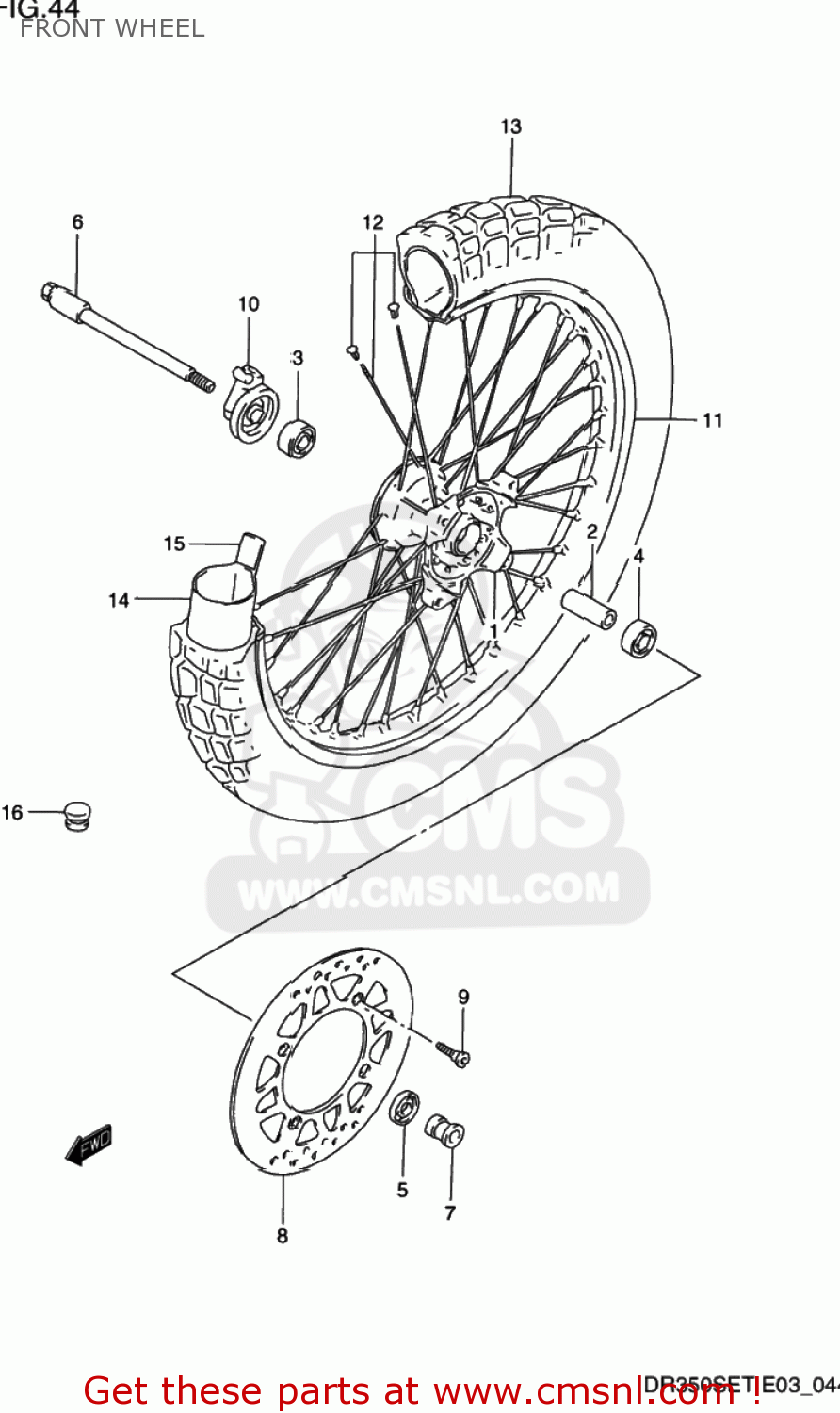

Front wheel diagram DR350SE 1993 (P) USA (E03)
FRONT WHEEL DR350SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411115D00
ref: 1
HUB,FR WHEEL
€ 185.50
2
5473144B00
ref: 2
SPACER,FR HUB BEARING
€ 11.50
3
0811362027
ref: 3
BEARING
€ 14.50
4
0812362027
ref: 4
BEARING
€ 14.50
5
0928422004
ref: 5
SEAL,OIL(22X35X5)
€ 8.00
6
5471114D00
ref: 6
AXLE,FR
€ 66.50
7
5475114D00
ref: 7
SPACER,FR AXLE,L
€ 18.50
8
5922114D00
ref: 8
DISC,FR BRAKE
€ 118.50
9-1
5942103A01
ref: 9-1
09106-08155
BOLT,BRAKE DISC
€ 4.00
9-2
5942103A10
ref: 9-2
09106-08155
BOLT,BRAKE DISC
€ 4.00
10
5460014D00
ref: 10
BOX ASSY,SPEEDOMETER GEAR
€ 87.50
11
5531108D01
ref: 11
RIM,FR WHEEL(1.60X21)
€ 235.00
12
5532044B00
ref: 12
SPOKE SET,FR WHEEL
€ 47.50
13-1
5511015D00
ref: 13-1
55110-08D10
TIRE,FRONT
€ 142.50
13-1
5511015D00
ref: 13-1
55110-08D10
TIRE,FRONT
€ 142.50
13-2
5511008D10
ref: 13-2
TIRE,FR(80/100-21)
€ 142.50
13-2
5511008D10
ref: 13-2
TIRE,FR(80/100-21)
€ 142.50
13-3
5511015D50
ref: 13-3
TIRE,FR(80/100 21)
€ 0.00
13-3
5511015D50
ref: 13-3
TIRE,FR(80/100 21)
€ 0.00
14
5520016510
ref: 14
TUBE
€ 32.50
15
5526114540
ref: 15
PROTECTOR,WHEEL INNER
€ 5.00
16
0925008013
ref: 16
CAP(OD:12)
€ 2.00
