FUEL COCK
DR350SE 1993 (P) USA (E03)

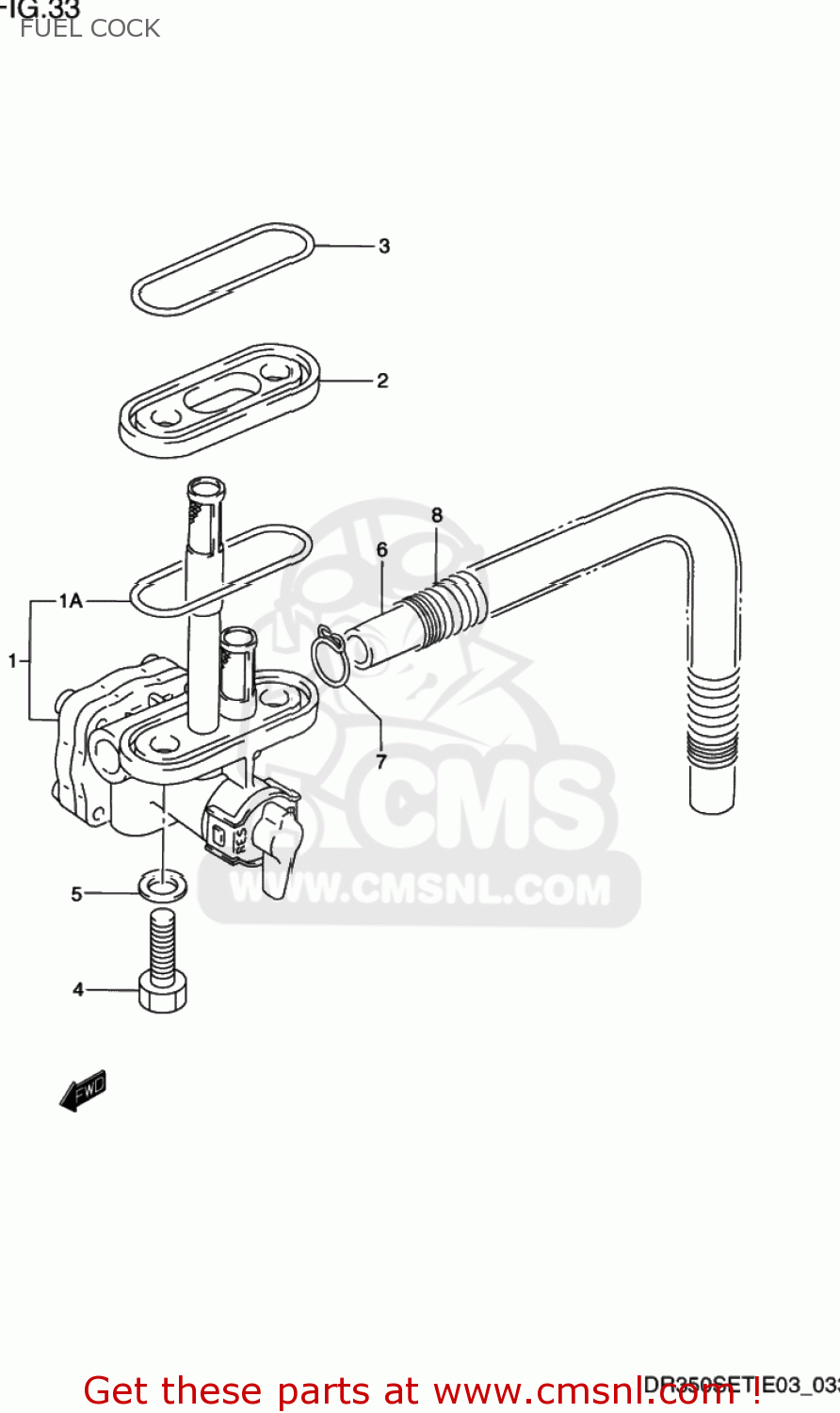

Fuel cock diagram DR350SE 1993 (P) USA (E03)
FUEL COCK DR350SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
4434887420
ref: 1A
GASKET,JOINT (NAS)
€ 5.00
1-1
4430015D10
ref: 1-1
COCK ASSY,FUEL
€ 0.00
1-2
4430015D30
ref: 1-2
44300-15D31
COCK ASSEMBLY,FUEL
€ 121.00
2
4436514A00
ref: 2
SPACER,FUEL COCK
€ 12.00
3
4436614A00
ref: 3
GASKET,FUEL COCK (NAS)
€ 2.50
4
0912806057
ref: 4
BOLT(6X20)
€ 2.00
5
0916806026
ref: 5
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
6-1
0935270103600
ref: 6-1
HOSE(7X10.2X600)
€ 8.00
6-2
0935270103600
ref: 6-2
HOSE(7X10.2X600)
€ 8.00
7
0940110401
ref: 7
CLIP
€ 1.50
8
0944013016
ref: 8
09440-13052
SPRING
€ 14.50
9-1
0940406206
ref: 9-1
09404-06432
CLAMP(L:45)
€ 2.50
9-2
0940406429
ref: 9-2
CLAMP(L:45)
€ 2.50
