CARBURETOR (MODEL R/S/T)
DR350SE 1993 (P) USA (E03)

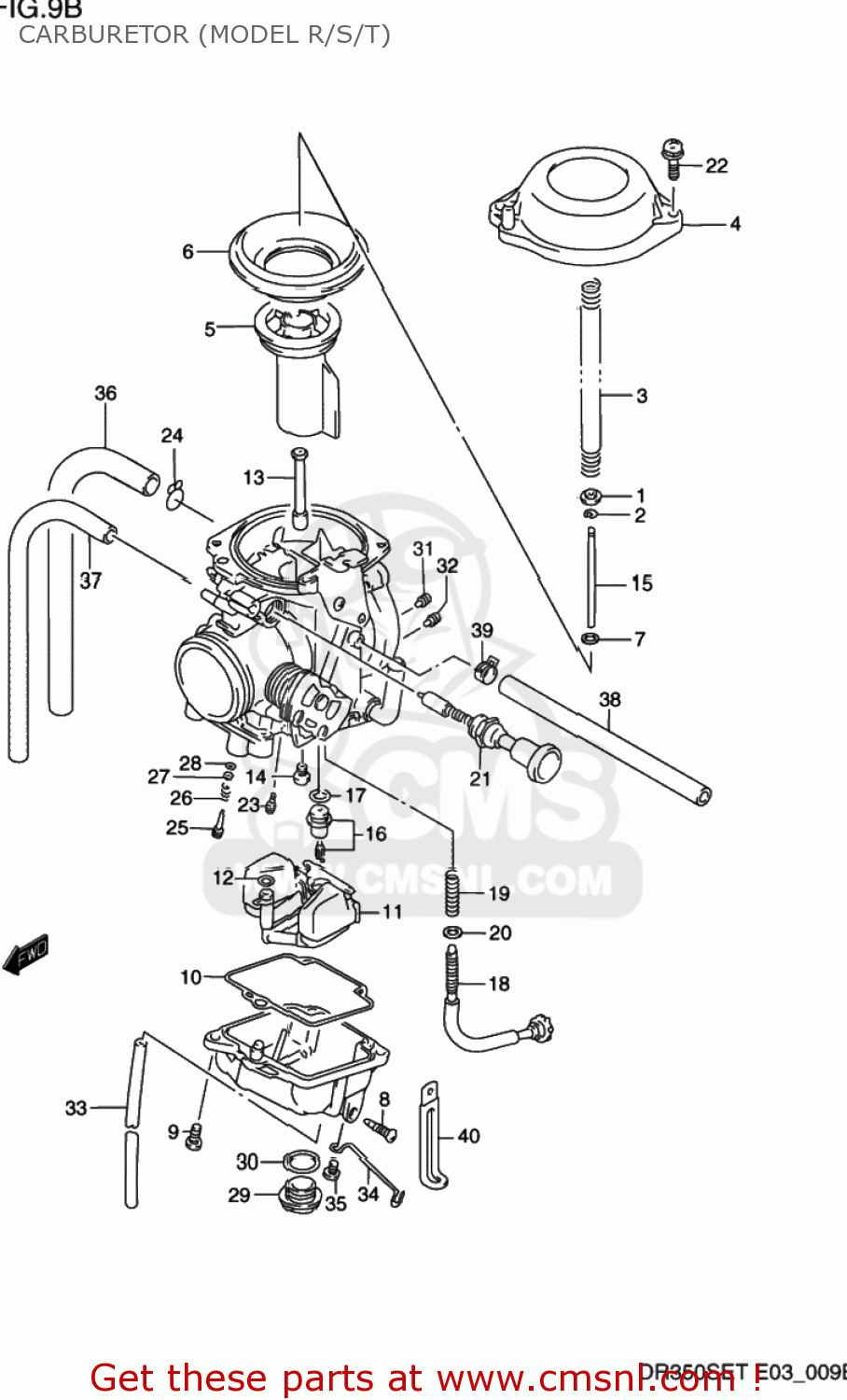

Carburetor (model r/s/t) diagram DR350SE 1993 (P) USA (E03)
CARBURETOR (MODEL R/S/T) DR350SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320014EP0
ref:
13200-14EP1
CARBURETOR ASSEMBLY
€ 249.00
1320014ES0
ref:
13200-14ES1
CARBURETOR ASSEMBLY
€ 249.00
1
1338242A00
ref: 1
RING
€ 3.50
2
1339401D00
ref: 2
E RING
€ 4.50
3
1341744B00
ref: 3
SPRING
€ 6.00
4
1350201D00
ref: 4
COVER,DIAPHRAGM
€ 36.00
5
1355144B10
ref: 5
VALVE PISTON
€ 74.50
6
1350744B00
ref: 6
DIAPHRAGM
€ 29.00
7
1338747010
ref: 7
RING
€ 7.50
8
1324713A00
ref: 8
13247-02340
SCREW,DRAIN
€ 5.50
9-1
1360205128
ref: 9-1
02112-05127
SCREW
€ 2.50
9-2
0211205127
ref: 9-2
SCREW
€ 2.50
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11
1324017E10
ref: 11
FLOAT ASSY
€ 40.00
12
1337446710
ref: 12
O RING
€ 4.50
13
0949400691
ref: 13
09494-00883
JET,NEEDLE (O-6)
€ 40.50
14
0949125011
ref: 14
JET,MAIN(127.5)
€ 10.00
15
1338314D20
ref: 15
NEEDLE,JET
€ 12.50
16
1337044B00
ref: 16
13370-02D00
VALVE ASSEMBLY,NEEDLE
€ 46.50
17
1337444080
ref: 17
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
18
1326715E00
ref: 18
ADJUSTER
€ 42.50
19
1326831210
ref: 19
SPRING,THROTTLE SCREW
€ 4.00
20
1361543010
ref: 20
WASHER,STARTER SHAFT
€ 2.50
21-1
1344114E00
ref: 21-1
13411-14E10
PLUNGER ASSEMBLY
€ 51.00
21-2
1341114E00
ref: 21-2
13411-14E10
PLUNGER ASSEMBLY
€ 51.00
22-1
1360234390
ref: 22-1
02112-7516A
SCREW
€ 2.50
22-2
0211275163
ref: 22-2
02112-7516A
SCREW
€ 2.50
23
0949235010
ref: 23
JET,PILOT(37.5)
€ 10.50
24
0940110410
ref: 24
09401-10401
CLIP
€ 1.50
25
1327947070
ref: 25
SCREW,PILOT
€ 11.50
26
1326847070
ref: 26
SPRING
€ 5.00
27
1329129900
ref: 27
WASHER
€ 2.00
28
1329529900
ref: 28
O RING,PILOT AIR SCREW
€ 4.00
29
1324732210
ref: 29
SCREW,GUIDE
€ 13.00
30
1324941310
ref: 30
O RING,DRAIN PLUG
€ 5.00
31
0949326004
ref: 31
JET,AIR(1.3)
€ 14.50
32
0949360004
ref: 32
JET,AIR(0.6)
€ 11.00
33
0935230503600
ref: 33
HOSE(3X5X600)
€ 8.00
34
1367115D60
ref: 34
CLIP
€ 12.00
35
0211205087
ref: 35
SCREW
€ 2.00
36
0935270113600
ref: 36
HOSE(7X11X600)
€ 17.50
37
0935445853600
ref: 37
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
38-1
1368335B00
ref: 38-1
13520-02C01
HOSE
€ 13.00
38-2
0935250823600
ref: 38-2
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
39
1367114E00
ref: 39
CLIP
€ 0.00
40-1
0940406402
ref: 40-1
09404-06432
CLAMP
€ 2.50
40-2
0940406429
ref: 40-2
CLAMP(L:45)
€ 2.50
