FRONT WHEEL

DR350SE 1995 (S)

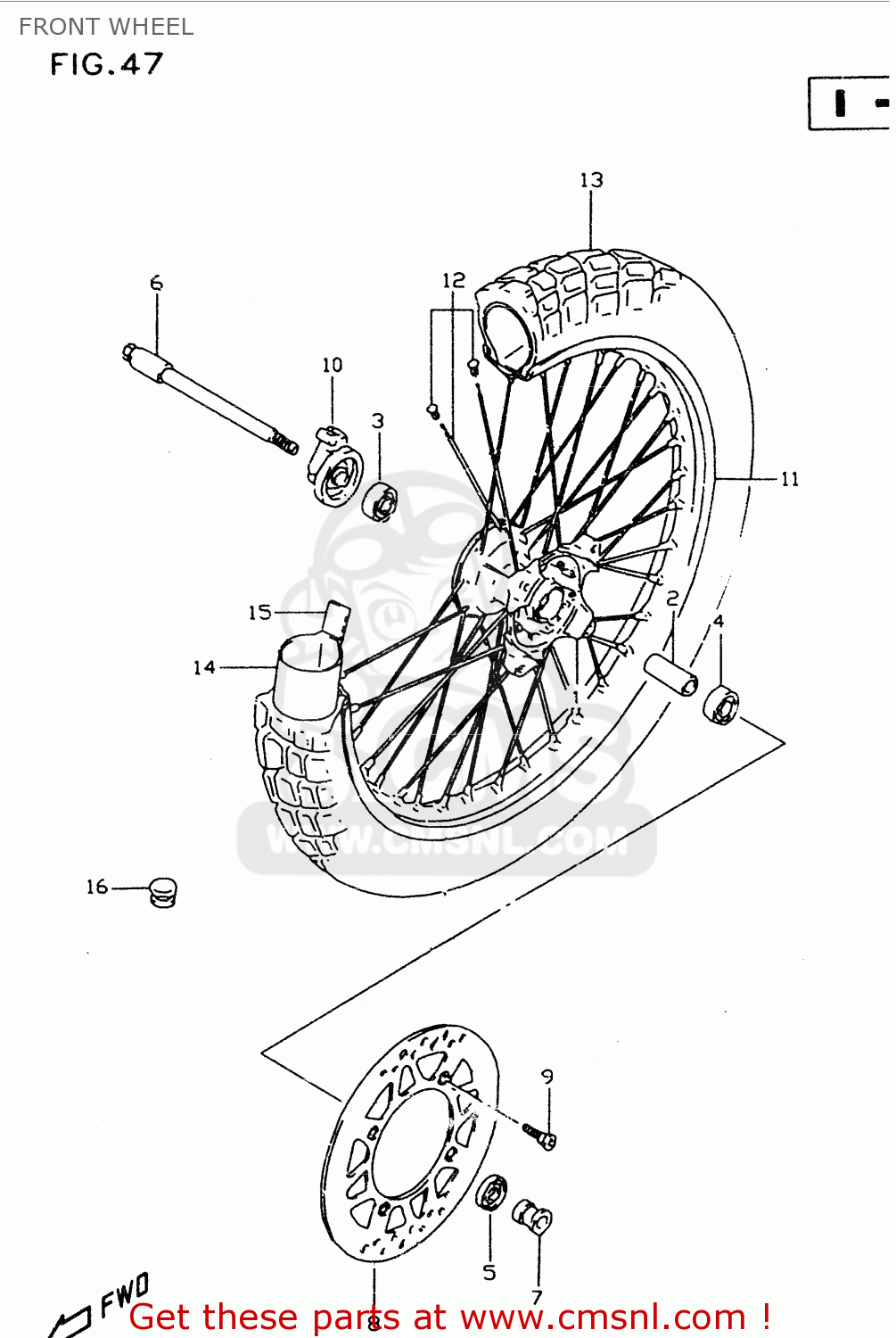

Front wheel diagram DR350SE 1995 (S)

FRONT WHEEL DR350SE 1995 (S)

FRONT WHEEL DR350SE 1995 (S)

prices are in EUR

ref

part #

description

quantity

1

5411115D00
ref: 1

HUB,FR WHEEL

€ 185.50

2

5473144B00
ref: 2

SPACER,FR HUB BEARING

€ 11.50

3

0811362027
ref: 3

BEARING

€ 14.50

4

0812362027
ref: 4

BEARING

€ 14.50

5

0928422004
ref: 5

SEAL,OIL(22X35X5)

€ 8.00

6

5471114D00
ref: 6

AXLE,FR

€ 66.50

7

5475114D00
ref: 7

SPACER,FR AXLE,L

€ 18.50

8

5922114D00
ref: 8

DISC,FR BRAKE

€ 118.50

9

5942103A10
ref: 9

BOLT,BRAKE DISC

€ 4.00

10

5460014D00
ref: 10

BOX ASSY,SPEEDOMETER GEAR

€ 87.50

11

5531108D01
ref: 11

RIM,FR WHEEL(1.60X21)

€ 235.00

12

5532044B00
ref: 12

SPOKE SET,FR WHEEL

€ 47.50

13-1

5511008D10
ref: 13-1

TIRE,FR(80/100-21)

€ 142.50

13-2

5511015D70
ref: 13-2
MODEL S

TIRE, FRONT (3.00-21) BRIDGESTONE

€ 0.00

14

5520016510
ref: 14

TUBE

€ 32.50

15

5526114540
ref: 15

PROTECTOR,WHEEL INNER

€ 5.00

16

0925003013
ref: 16

CAP, BEAD STOPPER

€ 0.00
