HEADLAMP (MODEL T/V/W)
DR350SE 1995 (S)

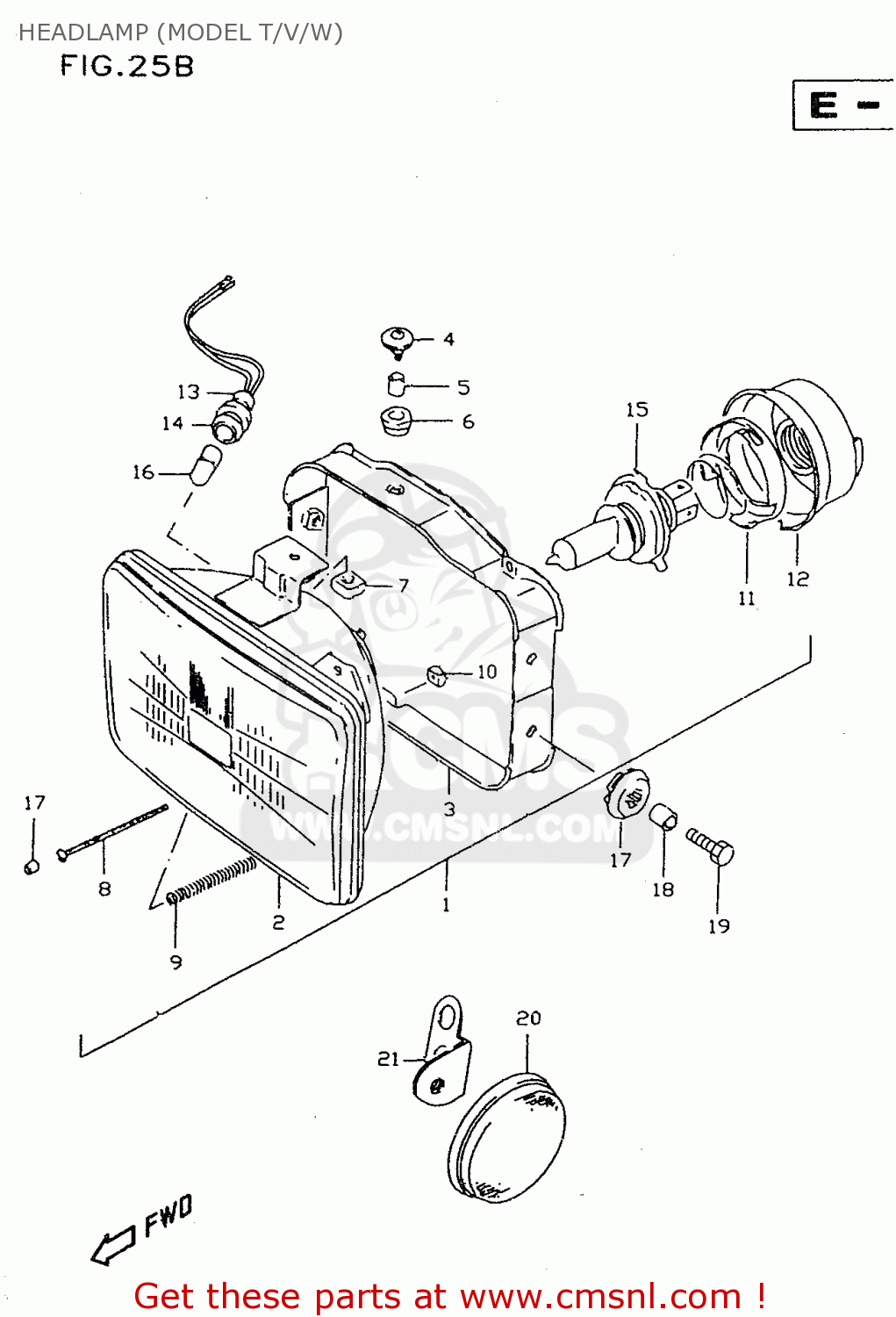

Headlamp (model t/v/w) diagram DR350SE 1995 (S)
HEADLAMP (MODEL T/V/W) DR350SE 1995 (S)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510042A60999
ref: 1-1
HEADLAMP ASSY
€ 191.50
1-2
3510042A50999
ref: 1-2
E4,E18,E22,E34,E94
HEADLAMP ASSY
€ 164.00
1-3
3510014A31999
ref: 1-3
E24
HEADLAMP ASSEMBLY
€ 180.50
2-1
3512142A60
ref: 2-1
LAMP UNIT
€ 0.00
2-2
3512114A51
ref: 2-2
E4,E18,E22,E34,E94
LAMP UNIT
€ 102.00
2-3
3512114A31
ref: 2-3
E24
LAMP UNIT
€ 90.00
3
3514114A00
ref: 3
HOUSING
€ 31.00
4
3513638A00
ref: 4
SCREW,MOUNTING
€ 2.50
5
3513314A00
ref: 5
SPACER
€ 3.50
6
3513945230
ref: 6
CUSHION
€ 1.50
7
3513545900
ref: 7
NUT
€ 2.50
8
3515145900
ref: 8
SCREW
€ 4.00
9
3515449200
ref: 9
SPRING
€ 3.50
10
3513545600
ref: 10
NUT
€ 3.00
11
3513601A00
ref: 11
HOLDER,BULB
€ 6.00
12
3517301440
ref: 12
COVER,SOCKET
€ 10.00
13-1
3611842A60
ref: 13-1
SOCKET
€ 0.00
13-2
3611812E20
ref: 13-2
E4,E18,E22,E34,E94
CORD,POSITION
€ 23.50
14
3611622630
ref: 14
JOINT,RUBBER
€ 5.00
15
0947112060
ref: 15
BULB(12V60/55W,H4)
€ 8.00
16
0947112063
ref: 16
BULB(12V4W)
€ 6.00
17
0932009018
ref: 17
CUSHION
€ 2.00
18
0918006138
ref: 18
SPACER(6.3X9.1X11.5)
€ 1.00
19
0911606167
ref: 19
BOLT(6X20)
€ 2.00
20
3595014A00
ref: 20
E18
REFLECTOR,REFLEX FR
€ 15.00
21-1
3595614D01
ref: 21-1
E18
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
21-2
3595714D01
ref: 21-2
E18
BRACKET,FR SIDE REFLECTOR,L
€ 0.00
