FUEL TANK (MODEL V/W)
DR350SE 1995 (S)

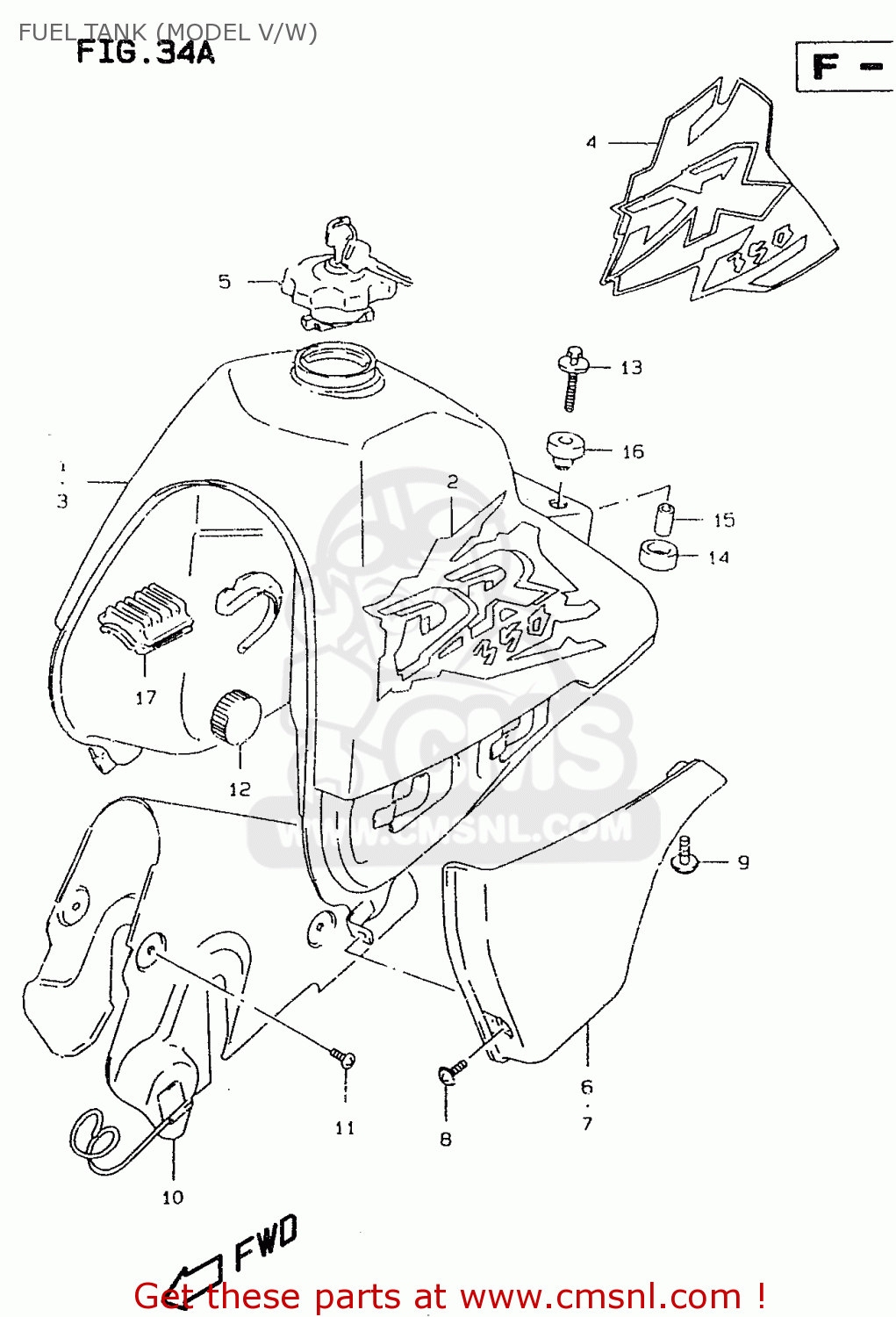

Fuel tank (model v/w) diagram DR350SE 1995 (S)
FUEL TANK (MODEL V/W) DR350SE 1995 (S)
×
prices are in EUR
ref
part #
description
quantity
1-1
4910014E0030H
ref: 1-1
MODEL V FOR E3D
TANK ASSY, FUEL (WHITE)
€ 775.00
1-2
4910014E00019
ref: 1-2
MODEL V FOR 019
TANK ASSY, FUEL (BLACK)
€ 775.00
1-3
4910014E1030H
ref: 1-3
MODEL V E22 FOR E3D
TANK ASSY, FUEL (WHITE)
€ 0.00
1-4
4910014E10019
ref: 1-4
MODEL V E22 FOR 019
TANK ASSY, FUEL (BLACK)
€ 0.00
2-1
6811014E40Y2E
ref: 2-1
MODEL V FOR 30H
TAPE SET,FUEL TANK
€ 86.50
2-2
6811014E40Y2F
ref: 2-2
MODEL V FOR 019
TAPE SET,FUEL TANK
€ 97.00
3-1
4910014E4030H
ref: 3-1
MODEL W FOR E3D
TANK ASSY,FUEL(WHITE)
€ 775.00
3-2
4910014E40019
ref: 3-2
MODEL W FOR 019
TANK ASSY, FUEL (BLACK)
€ 775.00
3-3
4910014E7030H
ref: 3-3
MODEL W E22 FOR E3D
TANK ASSY, FUEL (WHITE)
€ 0.00
3-4
4910014E70019
ref: 3-4
MODEL W E22 FOR 019
TANK ASSY, FUEL (BLACK)
€ 362.50
4-1
6811014E60Y5P
ref: 4-1
MODEL W FOR 30H
TAPE SET,FUEL TANK
€ 123.00
4-2
6811014E60J6Y
ref: 4-2
MODEL W FOR 019
TAPE SET, FUEL TANK
€ 110.50
5
4420003811
ref: 5
CAP SET,FUEL TANK
€ 90.50
6-1
4417115D0030H
ref: 6-1
FOR E3D
COVER,FUEL TANK,R
€ 20.50
6-2
4417115D00019
ref: 6-2
FOR 019
COVER,FUEL TANK,R
€ 14.50
7-1
4418115D0030H
ref: 7-1
FOR E3D
COVER,FUEL TANK,L
€ 18.50
7-2
4418115D00019
ref: 7-2
FOR 019
COVER,FUEL TANK,L
€ 19.50
8
0913606002
ref: 8
SCREW(6X12)
€ 2.50
9
0214206107
ref: 9
SCREW
€ 2.00
10
4913114D20
ref: 10
SHIELD,FUEL TANK
€ 26.50
11
0156005103
ref: 11
BOLT
€ 0.00
12
0932910016
ref: 12
CUSHION
€ 3.00
13
0911606172
ref: 13
BOLT(6X30)
€ 2.50
14
0932014013
ref: 14
CUSHION
€ 3.00
15
0918006271
ref: 15
SPACER(6.5X9X18)
€ 2.00
16
0932010020
ref: 16
CUSHION
€ 4.00
17
4454115D01
ref: 17
CUSHION,FUEL TANK FR UPR
€ 18.50
