LEFT HANDLE LEVER (MODEL R/S/T)
DR350SE 1995 (S)

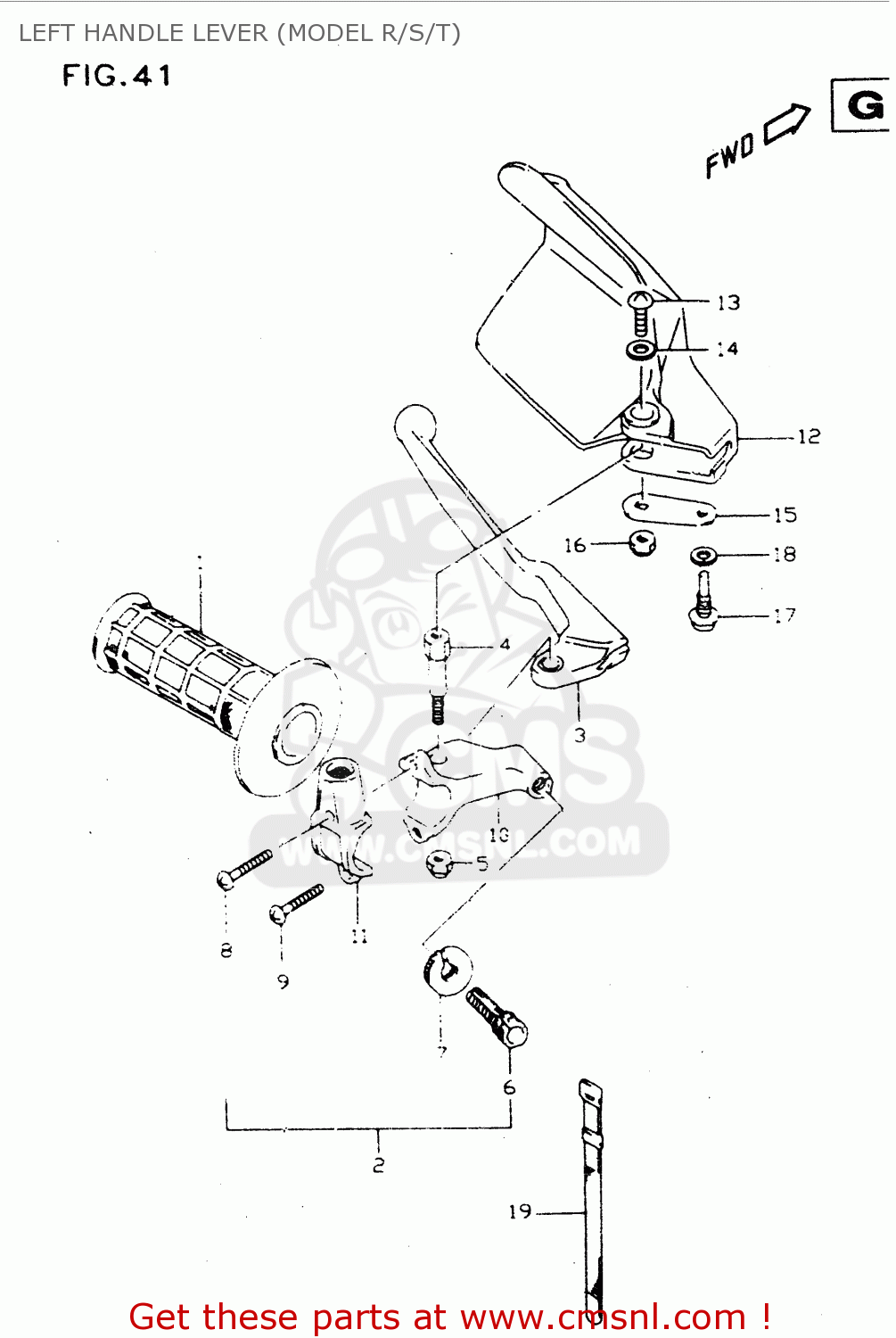

Left handle lever (model r/s/t) diagram DR350SE 1995 (S)
LEFT HANDLE LEVER (MODEL R/S/T) DR350SE 1995 (S)
×
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
€ 11.00
2
5750015D00
ref: 2
LEVER ASSY,CLUTCH
€ 53.50
3
5762014300
ref: 3
LEVER,CLUTCH
€ 26.00
4
5763105D00
ref: 4
BOLT,LEVER SET
€ 7.00
5
0831921068
ref: 5
NUT 6MM
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744205D00
ref: 7
NUT,LOCK
€ 7.50
8
0912505105
ref: 8
SCREW
€ 4.50
9
0912505102
ref: 9
SCREW(5X14)
€ 2.50
10
5751114300
ref: 10
HOLDER,CLUTCH LEVER
€ 29.50
11
5751203D00
ref: 11
BRACKET,HOLDER
€ 24.00
12-1
5754105D010NF
ref: 12-1
MODEL R/S FOR C3K
COVER,KNUCKLE,L
€ 31.00
12-2
5754105D0125Y
ref: 12-2
FOR C3P
COVER,KNUCKLE,L
€ 26.50
12-3
5754105D01Z16
ref: 12-3
MODEL T FOR E3D
COVER,KNUCKLE,L
€ 25.50
13
0214205107
ref: 13
SCREW
€ 2.50
14
0916005017
ref: 14
WASHER (5.5X16X1.2)
€ 2.50
15
5754205D00
ref: 15
PLATE,KNUCKLE COVER,L LWR
€ 3.50
16
0831921068
ref: 16
NUT 6MM
€ 2.00
17
0913906086
ref: 17
SCREW(6X19)
€ 3.00
18
0832101063
ref: 18
LOCK WASHER
€ 2.00
19
0940712402
ref: 19
CLAMP(L:120)
€ 3.00
