STARTING MOTOR (MODEL T/V/W)

DR350SE 1995 (S)

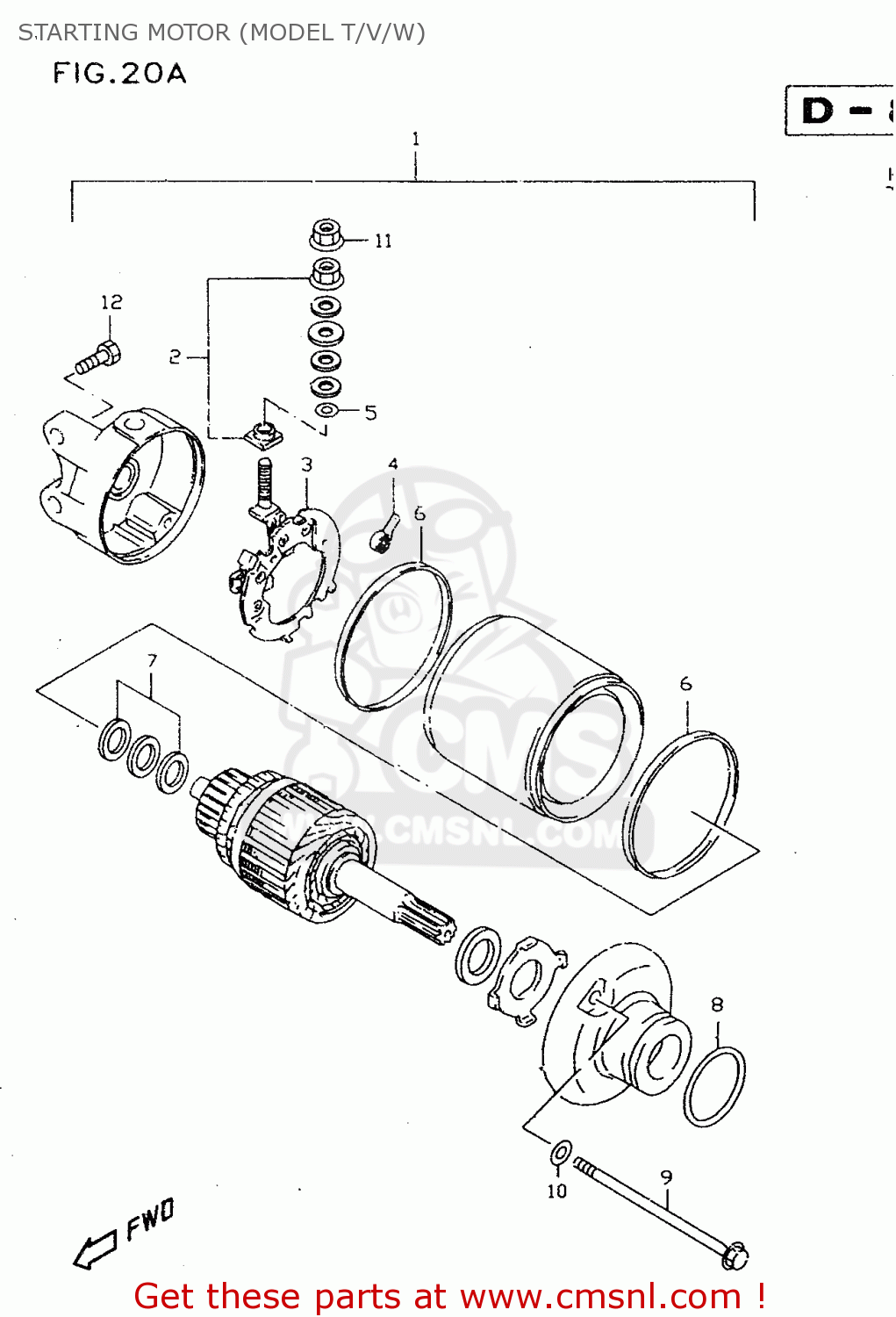

Starting motor (model t/v/w) diagram DR350SE 1995 (S)

STARTING MOTOR (MODEL T/V/W) DR350SE 1995 (S)

STARTING MOTOR (MODEL T/V/W) DR350SE 1995 (S)

prices are in EUR

ref

part #

description

quantity

1

3110015D10
ref: 1

MOTOR ASSY,STARTING

€ 563.50

2

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3

3113233E00
ref: 3

BRUSH HOLDER SET

€ 57.00

4

3113531300
ref: 4

SPRING,BRUSH

€ 4.00

5

3114349040
ref: 5

O RING

€ 3.00

6

3115613E00
ref: 6

O RING

€ 3.00

7

3117019B10
ref: 7

SHIM SET,STARTING MOTOR

€ 8.00

8

3126413E00
ref: 8

O RING

€ 6.00

9

3128015D10
ref: 9

SET,BOLT ASSY

€ 16.50

10

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

11

0836135068
ref: 11

NUT

€ 2.00

12

0713006203
ref: 12

BOLT,CRKCASE,R

€ 3.00
