WIRING HARNESS (MODEL R/S)
DR350SE 1995 (S)

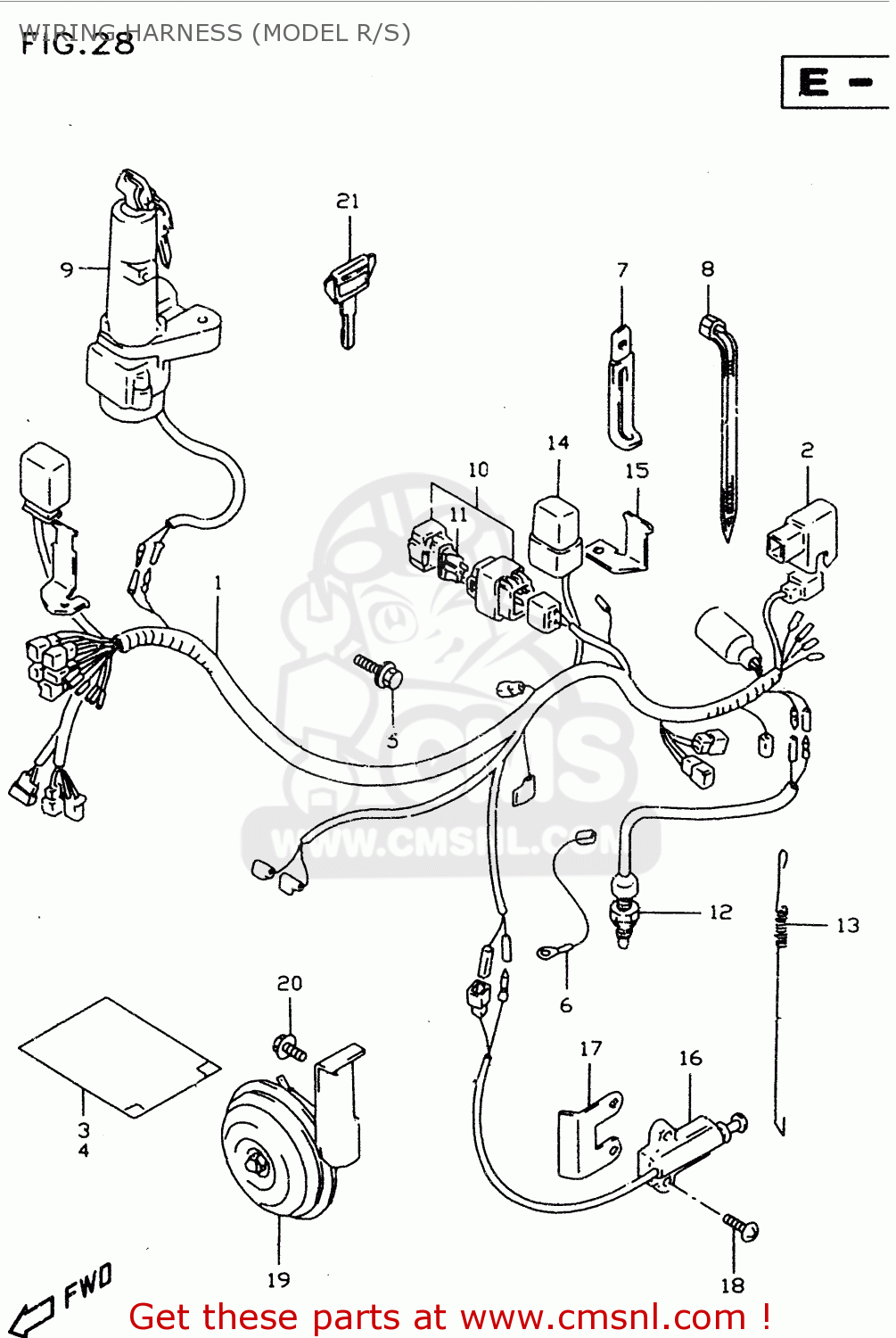

Wiring harness (model r/s) diagram DR350SE 1995 (S)
WIRING HARNESS (MODEL R/S) DR350SE 1995 (S)
×
prices are in EUR
ref
part #
description
quantity
1
3661015D80
ref: 1
HARNESS,WIRING
€ 302.50
2
3362415D00
ref: 2
CAP,BATTERY PLUS
€ 6.00
3-1
3661815D02
ref: 3-1
MODEL R
COVER,WIRING HARNESS
€ 12.00
3-2
3661915D11
ref: 3-2
GUIDE,WIRING HARNESS
€ 142.00
4
3661815D20
ref: 4
MODEL S
COVER,WIRING HARNESS
€ 12.00
5
0155006103
ref: 5
BOLT
€ 2.50
6
3685105D00
ref: 6
WIRE,REGULATOR EARTH LEAD
€ 3.00
7-1
0940406413
ref: 7-1
CLAMP
€ 2.50
7-2
0940406429
ref: 7-2
CLAMP(L:45)
€ 2.50
7-3
0940406426
ref: 7-3
CLAMP
€ 3.00
7-4
0940408414
ref: 7-4
CLAMP
€ 3.50
8-1
0940703401
ref: 8-1
CLAMP(L:33)
€ 3.50
8-2
0940710404
ref: 8-2
CLAMP(L:100)
€ 4.00
8-3
0940714403
ref: 8-3
CLAMP(L:125)
€ 2.50
8-4
0940718403
ref: 8-4
CLAMP L:165
€ 2.50
8-5
0940725401
ref: 8-5
CLAMP(L:235)
€ 4.00
9
3711003D00
ref: 9
SWITCH ASSEMBLY,IGNITION
€ 58.50
10-1
3674009301
ref: 10-1
MODEL R
BOX ASSEMBLY,FUSE
€ 18.00
10-2
3674024B01
ref: 10-2
MODEL S
BOX ASSY,FUSE
€ 18.00
11
0948120101
ref: 11
FUSE(20A)
€ 2.00
12
3774031D00
ref: 12
SWITCH ASSY,STOP LAMP
€ 20.50
13
0944306080
ref: 13
SPRING
€ 4.00
14
3874024X50
ref: 14
RELAY ASSY
€ 37.50
15
3674414D01
ref: 15
BRACKET,FUSE
€ 0.00
16
3784012X50
ref: 16
<-37840-12D00
SWITCH ASSY,SIDE STAND WARNING
€ 76.00
17
3784114D00
ref: 17
PROTECTOR,SIDE STAND SWITCH
€ 4.50
18
0214206203
ref: 18
SCREW
€ 2.00
19-1
3850014D01
ref: 19-1
HORN ASSEMBLY
€ 54.50
19-2
3850014D11
ref: 19-2
E34
HORN ASSY
€ 0.00
20
0155006163
ref: 20
BOLT
€ 2.50
21-1
3714603A00
ref: 21-1
OPT
KEY,BLANK(TYPE:C)
€ 6.00
21-2
3714603A10
ref: 21-2
OPT
KEY,BLANK(TYPE:D)
€ 6.00
21-3
3714603A20
ref: 21-3
OPT
KEY,BLANK(TYPE:E)
€ 6.00
21-4
3714603A30
ref: 21-4
OPT
KEY,BLANK(TYPE:F)
€ 6.00
