SEAT
DR350SE 1995 (S)

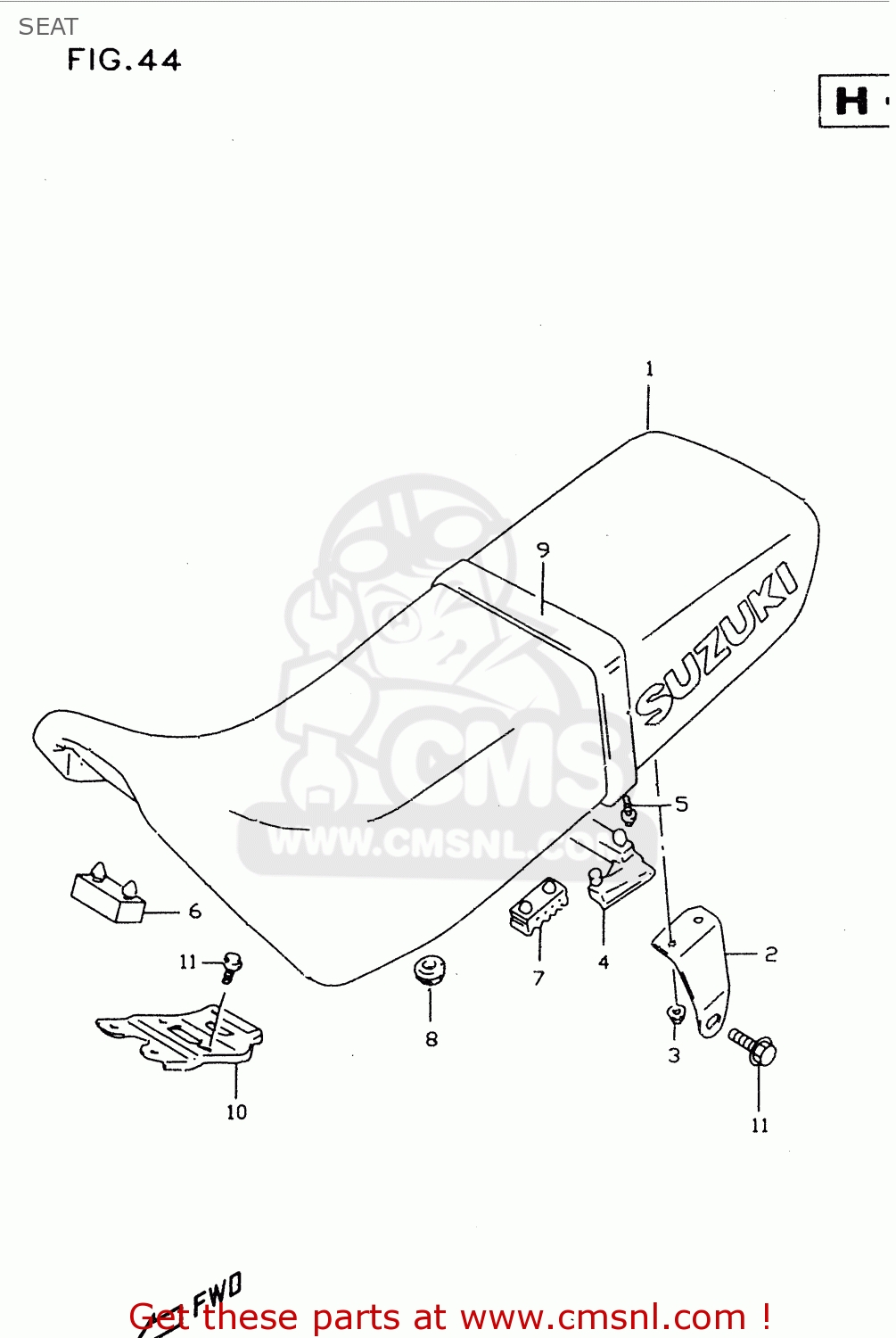

Seat diagram DR350SE 1995 (S)
SEAT DR350SE 1995 (S)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015D00G56
ref: 1-1
MODEL R/S E2,E22 FOR
SEAT SET
€ 279.50
1-2
4510015D009DD
ref: 1-2
MODEL R/S E2,E22 FOR
SEAT SET
€ 275.50
1-3
4510015D10G56
ref: 1-3
MODEL R/S E4,E18,E21
SEAT SET
€ 279.50
1-4
4510015D109DD
ref: 1-4
MODEL R/S E4,E18,E21
SEAT SET
€ 279.50
1-5
4510015D00E5J
ref: 1-5
MODEL T E2,E22 FOR E
SEAT SET
€ 0.00
1-6
4510015D00A5K
ref: 1-6
MODEL T E2,E22 FOR C
SEAT ASSY (YELLOW/PURPLE)
€ 0.00
1-7
4510015D10E5J
ref: 1-7
MODEL T E4,E18,E24,E
SEAT SET
€ 0.00
1-8
4510015D10A5K
ref: 1-8
MODEL T E4,E18,E24,E
SEAT SET
€ 272.00
1-9
4510015D30E8U
ref: 1-9
MODEL V/W E2,E22 FOR
SEAT ASSY (PURPLE/YELLOW)
€ 0.00
1-10
4510015D30F6T
ref: 1-10
MODEL V/W E2,E22 FOR
SEAT ASSY (BLACK/GRAY)
€ 0.00
1-11
4510015D40E8U
ref: 1-11
MODEL V/W E4,E18,E24
SEAT SET
€ 199.00
1-12
4510015D40F6T
ref: 1-12
MODEL V/W E4,E18,E24
SEAT SET
€ 323.00
2-1
4511614D00
ref: 2-1
BRACKET,SEAT,R
€ 8.00
2-2
4511714D00
ref: 2-2
BRACKET,SEAT,L
€ 8.00
3
0831610063
ref: 3
NUT
€ 2.50
4
4525514D00
ref: 4
CUSHION
€ 30.00
5
0155006203
ref: 5
BOLT
€ 2.50
6
0932108006
ref: 6
CUSHION
€ 3.00
7
4514931300
ref: 7
CUSHION,SEAT(40X20X15)
€ 2.00
8
0932008013
ref: 8
CUSHION
€ 4.00
9-1
4518015D106LF
ref: 9-1
MODEL R/S E4,E18,E21
BAND ASSY,SEAT
€ 0.00
9-2
4518015D104UZ
ref: 9-2
MODEL R/S E4,E18,E21
BAND,SEAT GRIP (BLUE)
€ 0.00
9-3
4518015D10R32
ref: 9-3
MODEL T E4,E18,E24,E
BAND ASSY,SEAT
€ 0.00
9-4
4518015D106LF
ref: 9-4
MODEL T E4,E18,E24,E
BAND ASSY,SEAT
€ 0.00
9-5
4518015D10R32
ref: 9-5
MODEL V/W E4,E18,E24
BAND ASSY,SEAT
€ 0.00
9-6
4518015D10S04
ref: 9-6
MODEL V/W E4,E18,E24
BAND ASSY,SEAT
€ 0.00
10
4512015D01
ref: 10
PLATE,SEAT FR HOOK
€ 16.50
11
0155008123
ref: 11
BOLT
€ 3.50
