AIR CLEANER

DR400S 1980 (T)

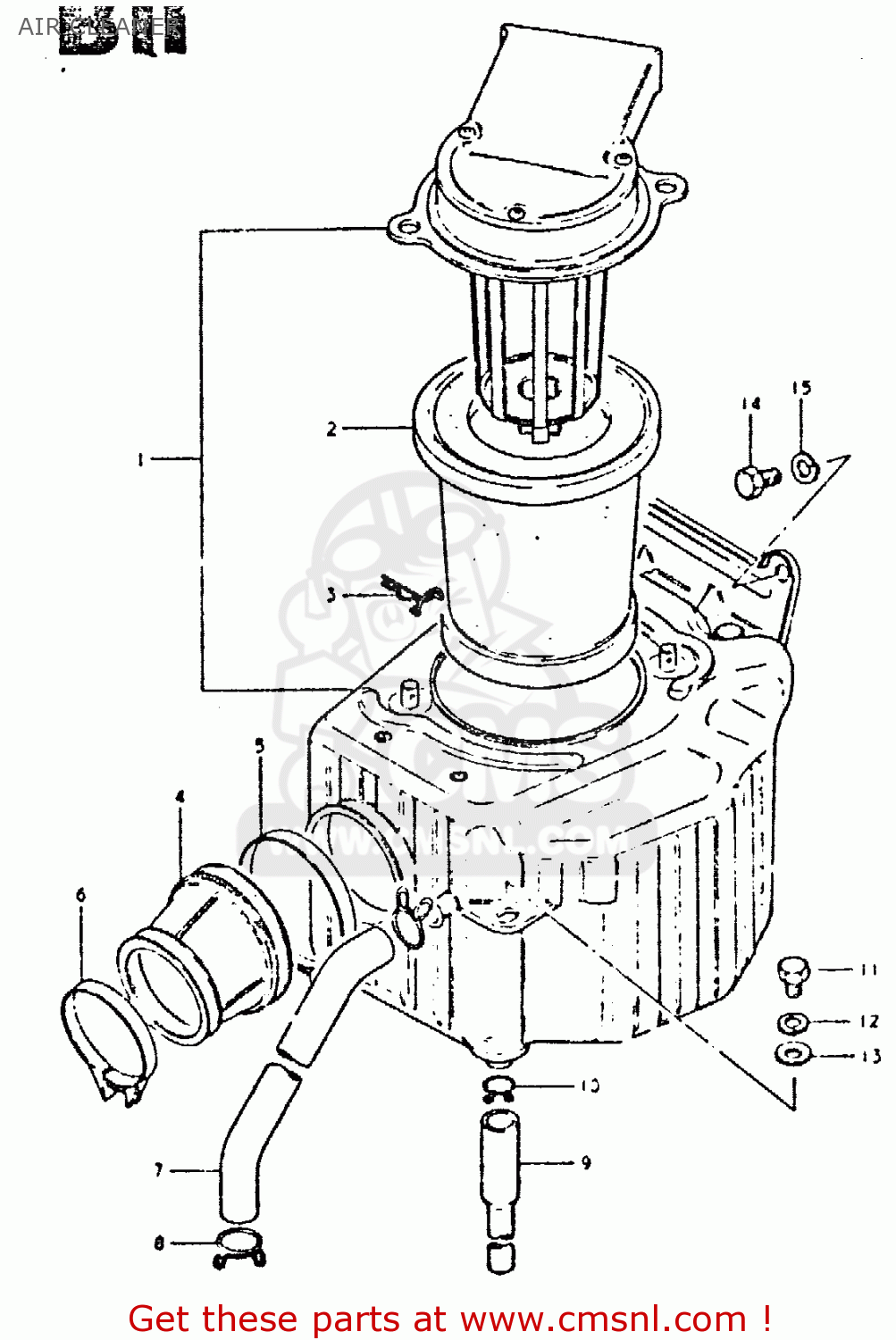

Air cleaner diagram DR400S 1980 (T)

AIR CLEANER DR400S 1980 (T)

AIR CLEANER DR400S 1980 (T)

prices are in EUR

ref

part #

description

quantity

1-1

1370037210
ref: 1-1

CLEANER ASSY, AIR

€ 118.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

1378137200
ref: 2

FILTER

€ 33.50

3

1382337200
ref: 3

SNAP PIN,AIR CLEANER

€ 0.00

4

1388137200
ref: 4

TUBE,AIR CLEANER OUTLET

€ 37.00

5

0940272206
ref: 5

CLAMP

€ 7.50

6

0940258206
ref: 6

CLAMP

€ 5.00

7

1385237200
ref: 7

TUBE,BREATHER

€ 0.00

8

1382800020
ref: 8

CLIP,BREATHER TUBE

€ 2.00

9-1

1387000070
ref: 9-1

DRAIN TUBE

€ 13.50

9-2

NOTUSED
ref: 9-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

0940114301
ref: 10

CLIP

€ 2.00

11

0110706168
ref: 11

BOLT, UPPER

€ 3.00

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

0832211068
ref: 13

WASHER 6MM

€ 2.00

14

0110706128
ref: 14

BOLT

€ 2.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50
