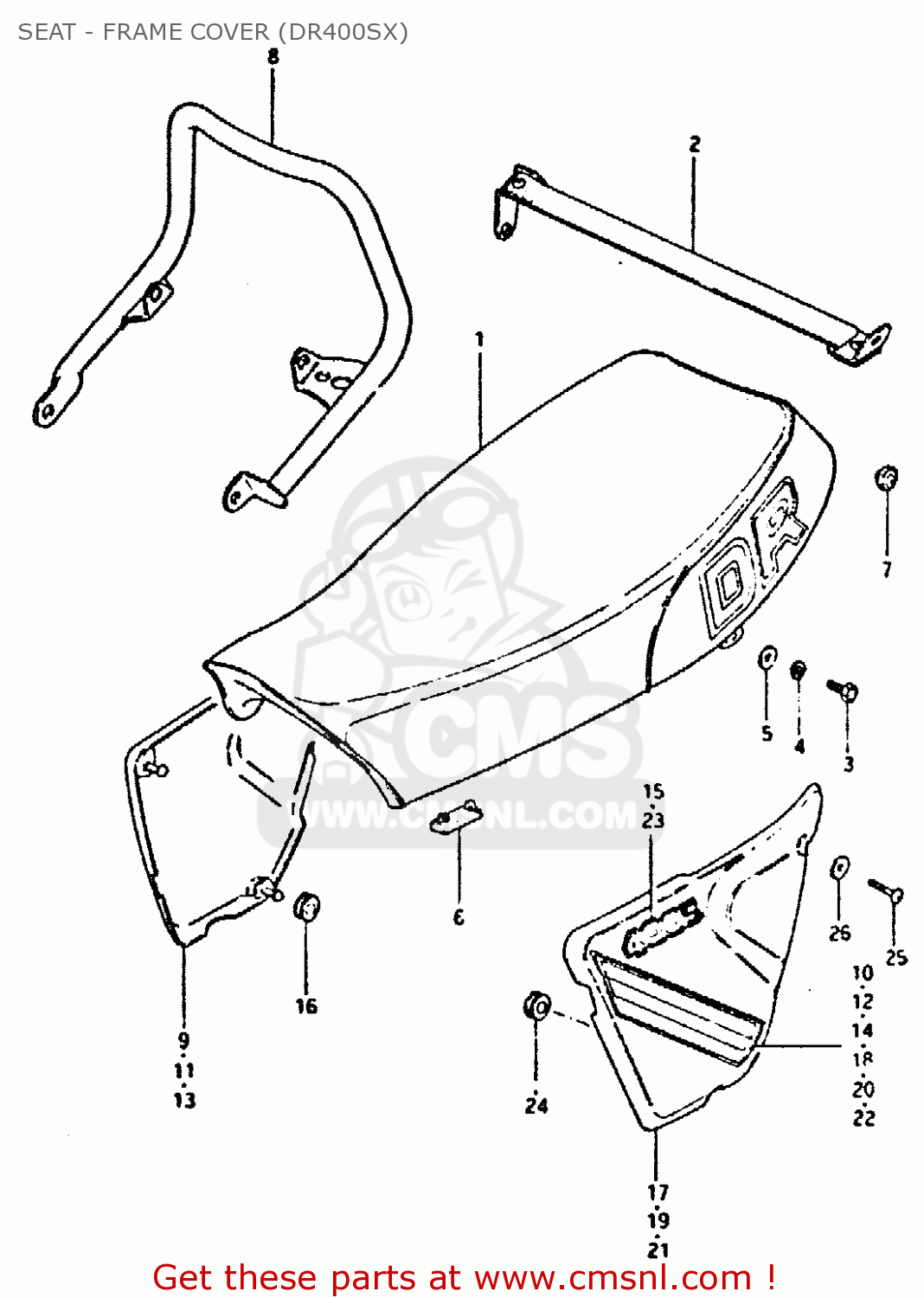

SEAT - FRAME COVER (DR400SX)

ref

part #

description

quantity

1

4510037211865
ref: 1

SEAT ASSY (BLACK)

€ 0.00

2

4518037210
ref: 2

BAND, SEAT GRIP

€ 0.00

3

0110708168
ref: 3

BOLT

€ 2.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

0832211088
ref: 5

WASHER

€ 2.00

6

0932108009
ref: 6

CUSHION

€ 4.00

7

0932110007
ref: 7

CUSHION

€ 4.50

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9-1

471113720010V
ref: 9-1

COVER,FRAME,RIGHT

€ 41.00

9-2

4711137200163
ref: 9-2

COVER, FRAME RH (YELLOW)

€ 41.00

10

681363721067H
ref: 10

TAPE, RH

€ 10.00

11

471113720008Y
ref: 11

COVER, FRAME RH (BLUE)

€ 41.00

12

681363721074U
ref: 12

TAPE, RH

€ 0.00

13

471113720007P
ref: 13

COVER, FRAME RH (RED)

€ 41.00

14

681363721074T
ref: 14

TAPE, RH

€ 0.00

15

681313722077D
ref: 15

EMBLEM

€ 5.50

16

0932008018
ref: 16

CUSHION

€ 4.00

17-1

472113720010V
ref: 17-1

COVER,FRAME,LEFT

€ 41.00

17-2

4721137200163
ref: 17-2

COVER, FRAME LH (YELLOW)

€ 41.00

18

681463721067H
ref: 18

TAPE, LH

€ 9.50

19

472113720008Y
ref: 19

COVER, FRAME LH (BLUE)

€ 41.00

20

681463721074U
ref: 20

TAPE, LH

€ 9.50

21

472113720007P
ref: 21

COVER, FRAME LH (RED)

€ 41.00

22

681463721074T
ref: 22

TAPE, LH

€ 0.00

23

681313722077D
ref: 23

EMBLEM

€ 5.50

24

0932008018
ref: 24

CUSHION

€ 4.00

25

0214206308
ref: 25

SCREW

€ 2.00

26

0916006007
ref: 26

WASHER

€ 2.00
