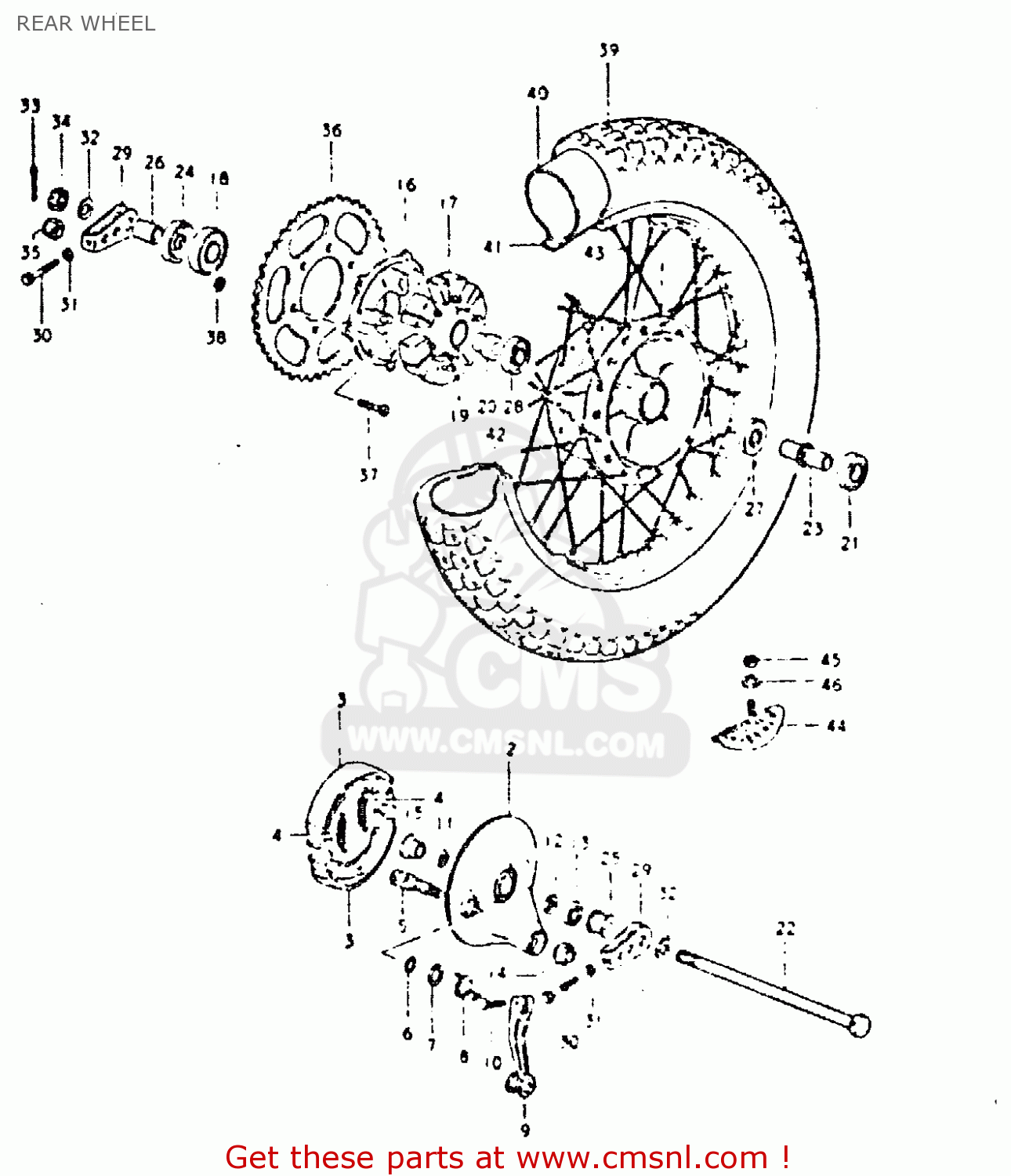

REAR WHEEL

ref

part #

description

quantity

1

6411037200
ref: 1

DRUM,REAR HUB

€ 234.00

2

6421037200
ref: 2

PANEL,REAR HUB

€ 129.50

3

5441032400
ref: 3

SHOE,BRAKE (MCA)

€ 35.00

4

5542041100
ref: 4

SPRING

€ 5.50

5

5444008003
ref: 5

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7

WASHER (15X24X1.6)

€ 2.50

8

0944833006
ref: 8

SPRING

€ 11.00

9

6445137200
ref: 9

LEVER,REAR BRAKE CAM

€ 18.00

10

0110706258
ref: 10

BOLT

€ 2.00

11

0926324013
ref: 11

BEARING(24X31X28)

€ 25.00

12

0821117367
ref: 12

THRUST WASHER

€ 0.00

13

6484537200
ref: 13

CVR,RR BRAKE AHR PNL DUST SEAL

€ 12.00

14

6435240400
ref: 14

SPHERICAL BEARING,TORQUE

€ 69.50

15

6421337200
ref: 15

SPACER,REAR HUB PANEL

€ 25.00

16

6461137200
ref: 16

DRUM,REAR SPROCKET MOUNT

€ 150.50

17

6465137200
ref: 17

ABSORBER,RR HUB SHOCK

€ 10.00

18

0811362057
ref: 18

BEARING

€ 18.00

19

0928058001
ref: 19

O-RING

€ 3.00

20

6473337200
ref: 20

SPACER,REAR SPROCKET DRUM

€ 13.00

21

0928555002
ref: 21

OIL SEAL

€ 9.00

22

6471133000
ref: 22

AXLE,REAR

€ 33.50

23

6473037200
ref: 23

SPACER,REAR HUB BEARING

€ 13.00

24

0928530001
ref: 24

SEAL,OIL(30.5X52X8)

€ 20.00

25

6474137200
ref: 25

SPACER,REAR AXLE,RIGHT

€ 17.00

26

0918017055
ref: 26

SPACER(17X30.5X16.3)

€ 8.00

27

0814362037
ref: 27

BEARING

€ 18.50

28

0814363037
ref: 28

BEARING

€ 23.00

29

6141037200
ref: 29

ADJUSTER,CHAIN

€ 7.50

30

0910408006
ref: 30

BOLT

€ 3.00

31

0831012088
ref: 31

NUT

€ 2.00

32

0916017013
ref: 32

WASHER (17X30X3.2)

€ 2.00

33

0411140308
ref: 33

PIN,COTTER

€ 1.50

34

0914116001
ref: 34

NUT

€ 6.50

35

NOTUSED
ref: 35

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

36-1

6451137200
ref: 36-1
~F.NO. 102449, MODEL

SPROCKET, REAR (NT:46)

€ 152.00

36-2

6451137210
ref: 36-2
F.NO. 102450~, MODEL

SPROCKET,RR NT

€ 92.00

36-3

NOTUSED
ref: 36-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

37

0912008004
ref: 37

SCREW(8X33.5)

€ 3.00

38

0831931088
ref: 38

NUT

€ 2.50

39

6510030901
ref: 39
IRC

TIRE

€ 0.00

40

6520049015
ref: 40

TUBE,INNER

€ 39.00

41

6526115010
ref: 41

PROTECTOR,WHEEL,INNER

€ 3.50

42

6531137210
ref: 42

RIM,REAR WHEEL

€ 0.00

43-1

6532037200
ref: 43-1
MODEL T

SPOKE SET,REAR WHEEL

€ 79.00

43-2

6532037201
ref: 43-2
MODEL X

SPOKE ASSY,RR WHEEL

€ 79.00

44-1

6527030001
ref: 44-1
MODEL T

STOPPER,BEAD

€ 30.50

44-2

6527032101
ref: 44-2
MODEL X

STOPPER,BEAD

€ 38.00

45

0831012088
ref: 45

NUT

€ 2.00

46

0832211088
ref: 46

WASHER

€ 2.00
