REAR COMBINATION LAMP (E22)
DR400S 1980 (T)

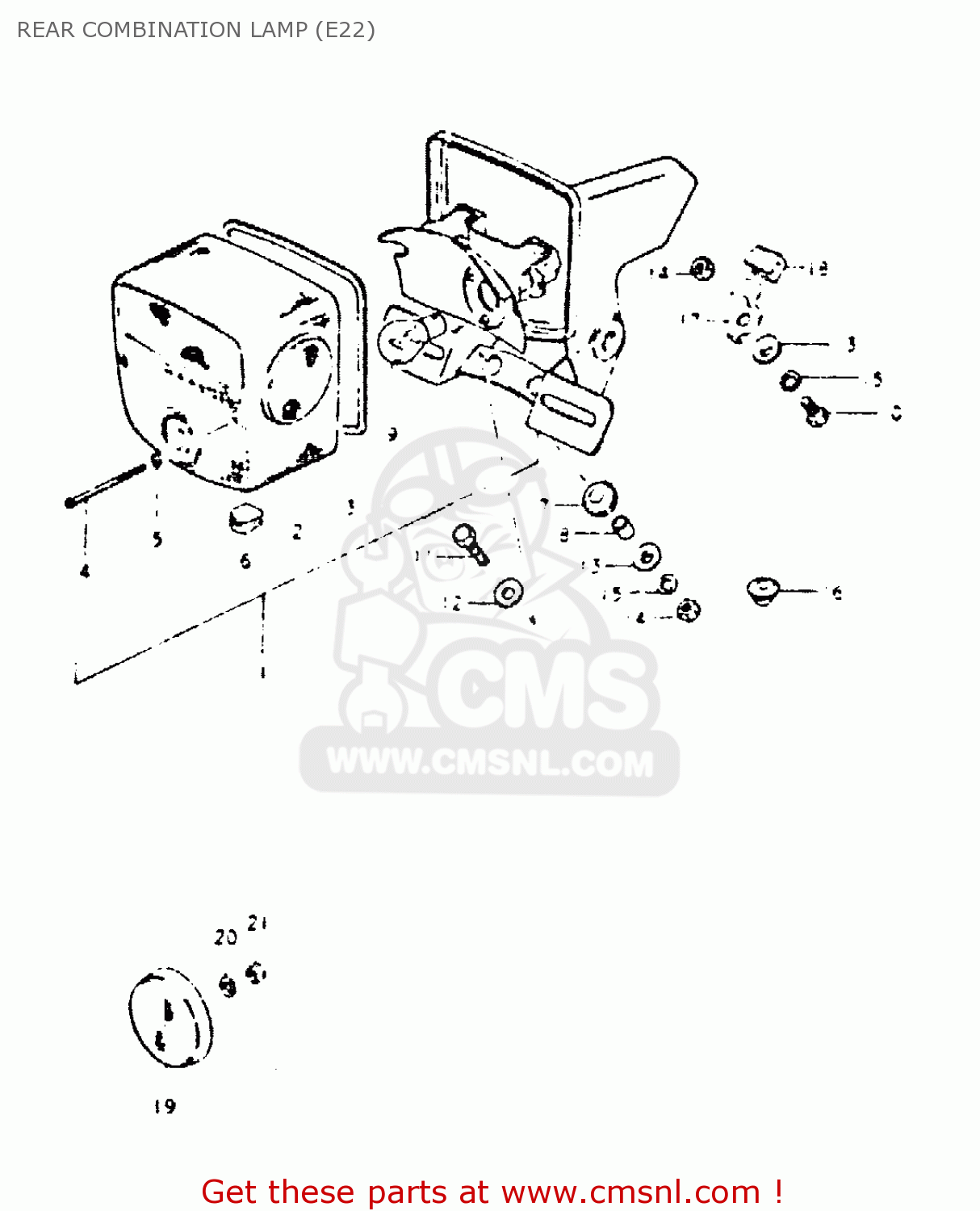

Rear combination lamp (e22) diagram DR400S 1980 (T)
REAR COMBINATION LAMP (E22) DR400S 1980 (T)
×
prices are in EUR
ref
part #
description
quantity
1
3571037290999
ref: 1
LAMP ASSY, TAIL
€ 0.00
2
3571230641
ref: 2
LENS
€ 47.00
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4
0912504002
ref: 4
SCREW (4X55)
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
3572830640
ref: 6
GROMMET,REAR COMBINATION LAMP
€ 3.00
7
3576532410
ref: 7
CUSHION,REAR COMBINATION LAMP
€ 3.00
8
3576637120
ref: 8
SPACER
€ 2.50
9
0947106034
ref: 9
EXECUTED LOCALLY
BULB (6V,21/5W)
€ 0.00
10
0110706208
ref: 10
BOLT
€ 2.00
11
0110706308
ref: 11
BOLT
€ 2.50
12
0916006027
ref: 12
WASHER (6.5X20X1.2)
€ 2.00
13
0916906016
ref: 13
WASHER
€ 1.50
14
0831011068
ref: 14
NUT
€ 2.50
15
0832221068
ref: 15
WASHER
€ 2.00
16
0930807004
ref: 16
GROMMET
€ 2.50
17-1
3579337200
ref: 17-1
MODEL T
PLATE,TAIL LAMP
€ 2.00
17-2
3579337400
ref: 17-2
MODEL X
PLATE
€ 0.00
18-1
3571737200
ref: 18-1
MODEL T
CUSHION,REAR COMBINATION LAMP
€ 3.00
18-2
3571737400
ref: 18-2
MODEL X
CUSHION
€ 9.50
19
3597045611
ref: 19
REFLECTOR,REFLEX
€ 47.50
20
0832221058
ref: 20
WASHER
€ 2.50
21
0831011058
ref: 21
NUT
€ 2.50
