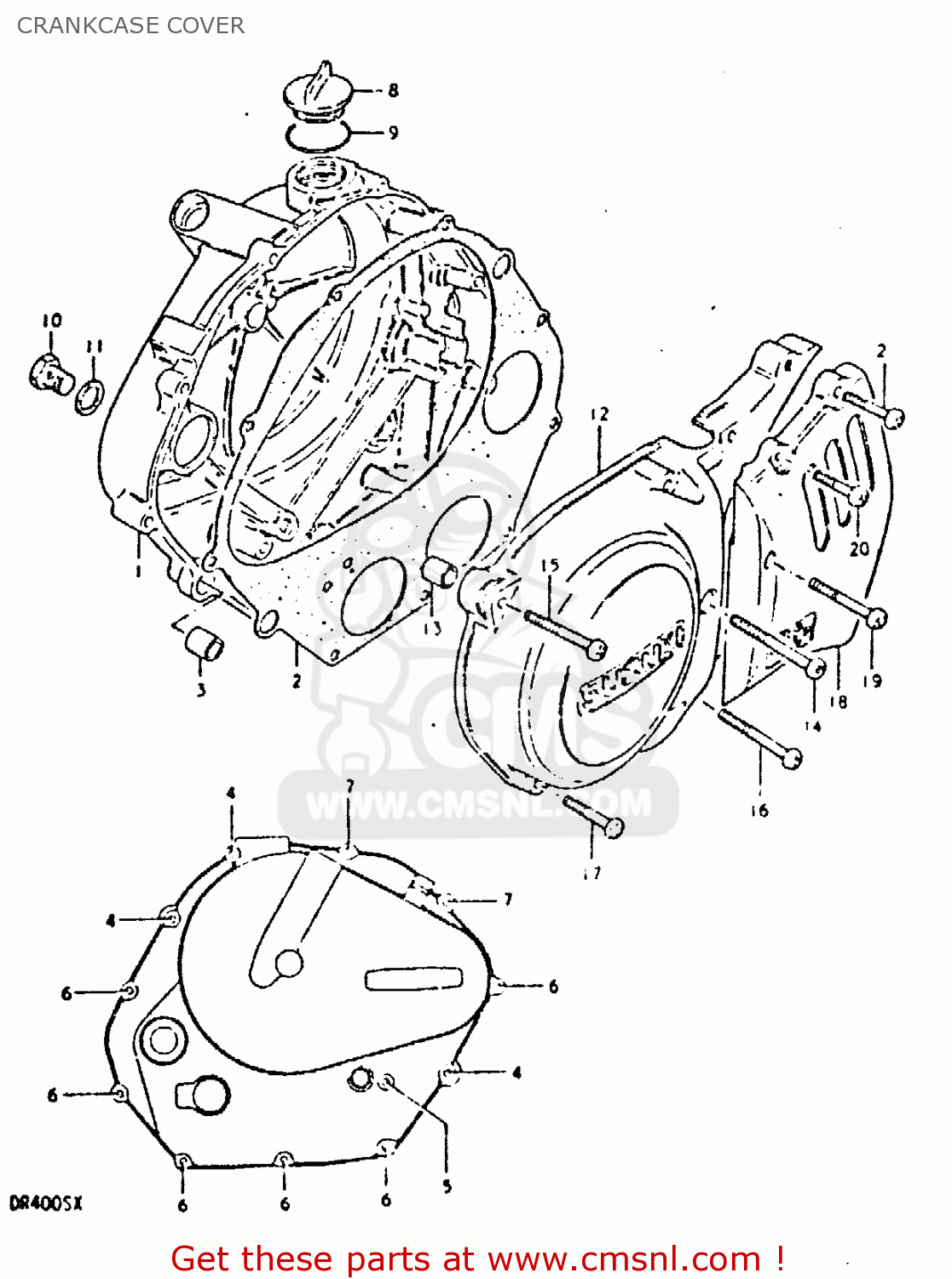

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134032401
ref: 1-1
FOR SCREW

COVER,CLUTCH

€ 228.50

1-2

1134032402
ref: 1-2
FOR BOLT

COVER,CLUTCH

€ 228.50

2

1148232400
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 23.00

3

0920613001
ref: 3

PIN

€ 2.50

4-1

0211206508
ref: 4-1

SCREW

€ 2.50

4-2

0154706508
ref: 4-2

BOLT (6X50)

€ 2.50

5-1

0211206408
ref: 5-1

SCREW

€ 2.00

5-2

0154706408
ref: 5-2

BOLT (6X40)

€ 2.50

6-1

0211206358
ref: 6-1

SCREW (6X35)

€ 2.50

6-2

0154706358
ref: 6-2

BOLT (6X35)

€ 2.50

7-1

0211206258
ref: 7-1

SCREW

€ 2.00

7-2

0154706258
ref: 7-2

BOLT

€ 2.50

8

0925930001
ref: 8

CAP

€ 8.50

9

0928032005
ref: 9

O RING(D:2.2,ID:32)

€ 2.00

10

0924714012
ref: 10

PLUG (14X12)

€ 3.50

11

0916814004
ref: 11

GASKET(14X19.2X2) (NAS)

€ 2.50

12-1

1135132501
ref: 12-1
FOR SCREW

COVER

€ 87.00

12-2

1135132502
ref: 12-2
FOR BOLT

COVER

€ 87.00

13

0920613001
ref: 13

PIN

€ 2.50

14-1

0211206608
ref: 14-1

SCREW 6X60

€ 2.50

14-2

0154706608
ref: 14-2

BOLT

€ 2.50

15-1

0211206508
ref: 15-1

SCREW

€ 2.50

15-2

0154706508
ref: 15-2

BOLT (6X50)

€ 2.50

16-1

0211206458
ref: 16-1

SCREW (6X45)

€ 2.00

16-2

0154706458
ref: 16-2

BOLT

€ 2.50

17-1

0211206358
ref: 17-1

SCREW (6X35)

€ 2.50

17-2

0154706958
ref: 17-2

BOLT 6X95

€ 4.00

18-1

1136132500
ref: 18-1
FOR SCREW

COVER,SPROCKET

€ 49.00

18-2

1136132501
ref: 18-2
FOR BOLT

COVER,SPROCKET

€ 49.00

19-1

0211206408
ref: 19-1

SCREW

€ 2.00

19-2

0154706408
ref: 19-2

BOLT (6X40)

€ 2.50

20-1

0211206258
ref: 20-1

SCREW

€ 2.00

20-2

0154706258
ref: 20-2

BOLT

€ 2.50

21-1

0211206208
ref: 21-1

SCREW

€ 2.00

21-2

0154706258
ref: 21-2

BOLT

€ 2.50

all assemblies
