TURN SIGNAL LAMP (E4, E17, E21, E25, E34)
DR400S 1980 (T)

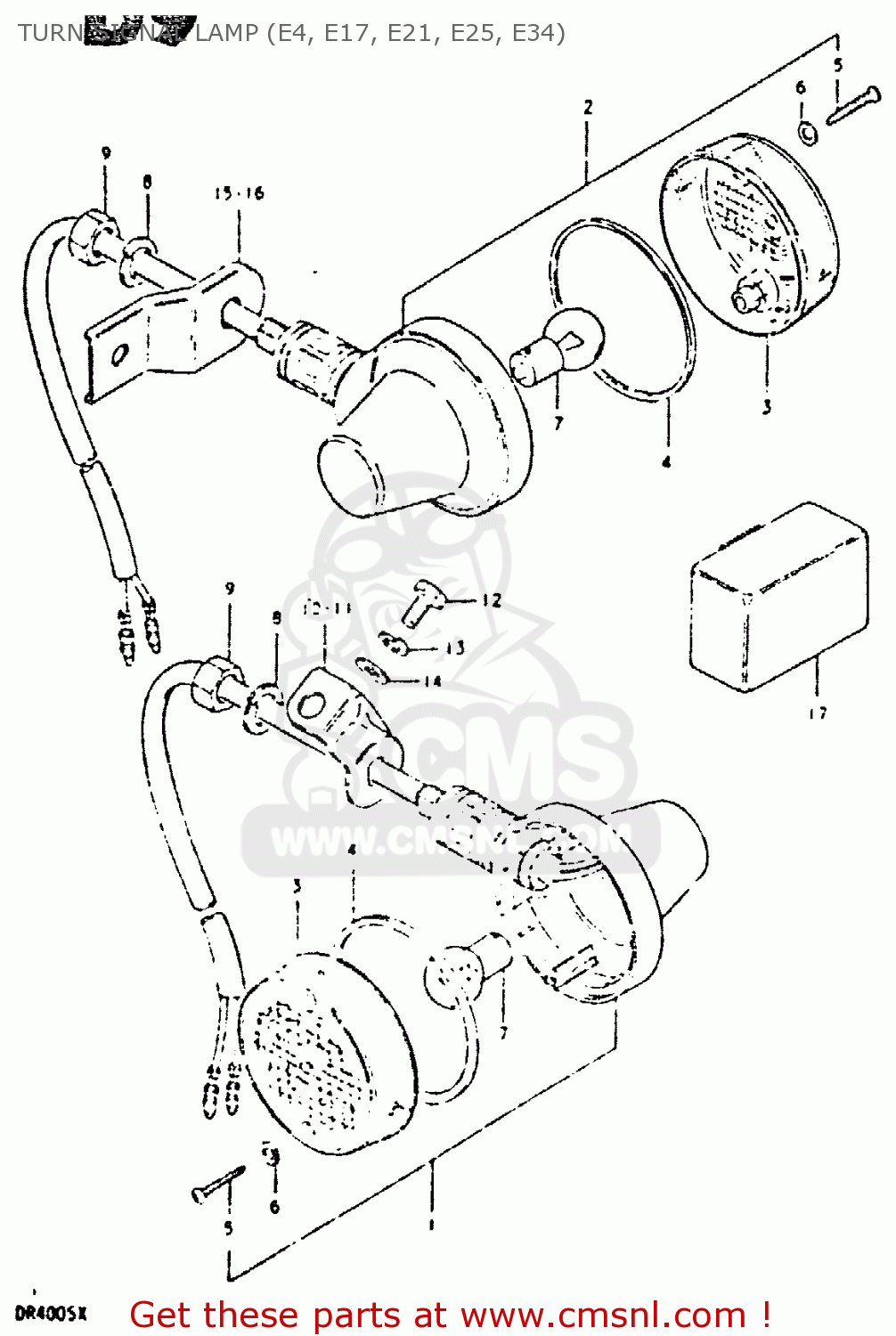

Turn signal lamp (e4, e17, e21, e25, e34) diagram DR400S 1980 (T)
TURN SIGNAL LAMP (E4, E17, E21, E25, E34) DR400S 1980 (T)
×
prices are in EUR
ref
part #
description
quantity
1
3560343521999
ref: 1
LAMP, FRONT TURN SIGNAL
€ 0.00
2
3560348521999
ref: 2
LAMP ASSY,RR TURNSIGNAL
€ 72.50
3
3561248510
ref: 3
LENS
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
€ 7.00
5
0321104258
ref: 5
SCREW TAPP.
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947106023
ref: 7
BULB(6V/10W,STANLEY,A4117)
€ 4.00
8
0832121128
ref: 8
WASHER,LOCK 12
€ 2.50
9
0831012128
ref: 9
NUT
€ 3.00
10
512512990008C
ref: 10
BRACKET,TURN SIGNAL LAMP
€ 7.50
11
512522990008C
ref: 11
BRACKET,TURN SIGNAL LAMP
€ 7.50
12
0110706128
ref: 12
BOLT
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
€ 2.50
14
0832221068
ref: 14
WASHER
€ 2.00
15
3562137200
ref: 15
BRACKET, REAR RH
€ 17.50
16
3564137200
ref: 16
BRACKET, REAR LH
€ 3.50
17
3861039121
ref: 17
RELAY, TURN SIGNAL
€ 49.00
