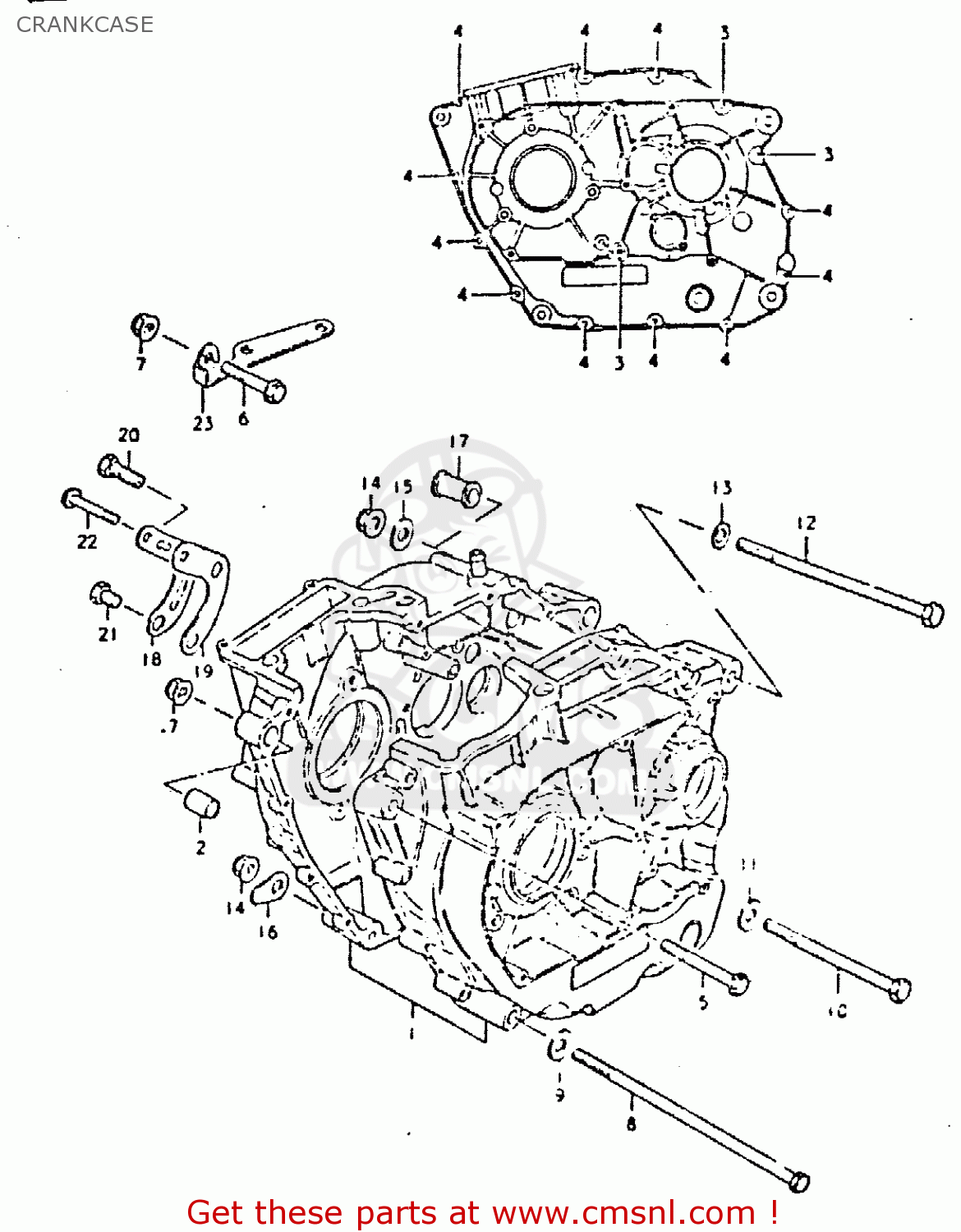

CRANKCASE

ref

part #

description

quantity

1

1130032840
ref: 1

CRANKCASE SET

€ 285.00

2

0920613001
ref: 2

PIN

€ 2.50

3

0211206508
ref: 3

SCREW

€ 2.50

4

0211206358
ref: 4

SCREW (6X35)

€ 2.50

5

0151708708
ref: 5

BOLT (8X70)

€ 2.00

6-1

0151708508
ref: 6-1
E.NO. 102691~

BOLT

€ 3.50

6-2

0151708558
ref: 6-2
~E.NO. 102690

BOLT 8X55

€ 3.00

7

0831931088
ref: 7

NUT

€ 2.50

8

0910010121
ref: 8

BOLT(10X190)

€ 8.50

9

0832221108
ref: 9

WASHER

€ 2.50

10

0910010116
ref: 10

BOLT 10X115

€ 3.50

11

0916010005
ref: 11

WASHER(10.5X20X3.2)

€ 2.00

12

0910010120
ref: 12

BOLT 10X155

€ 4.50

13

0916010001
ref: 13

WASHER

€ 2.00

14

0831931108
ref: 14

NUT

€ 3.00

15

0916010005
ref: 15

WASHER(10.5X20X3.2)

€ 2.00

16-1

0916910011
ref: 16-1

WASHER

€ 1.00

16-2

0916910012
ref: 16-2

WASHER

€ 1.00

17

1161032400
ref: 17

SPACER

€ 12.00

18

1139432400
ref: 18

CAP,OIL GALLERY

€ 0.00

19

1149732400
ref: 19

GASKET,OIL GALLERY (MCA)

€ 2.50

20

0936010007
ref: 20

BOLT,UNION

€ 6.50

21

0924710001
ref: 21

PLUG

€ 3.00

22

0151706558
ref: 22

BOLT

€ 2.50

23

1113137990
ref: 23
~E.NO. 102690 FOR 11

PIPE,CYLINDER HEAD OIL

€ 0.00
