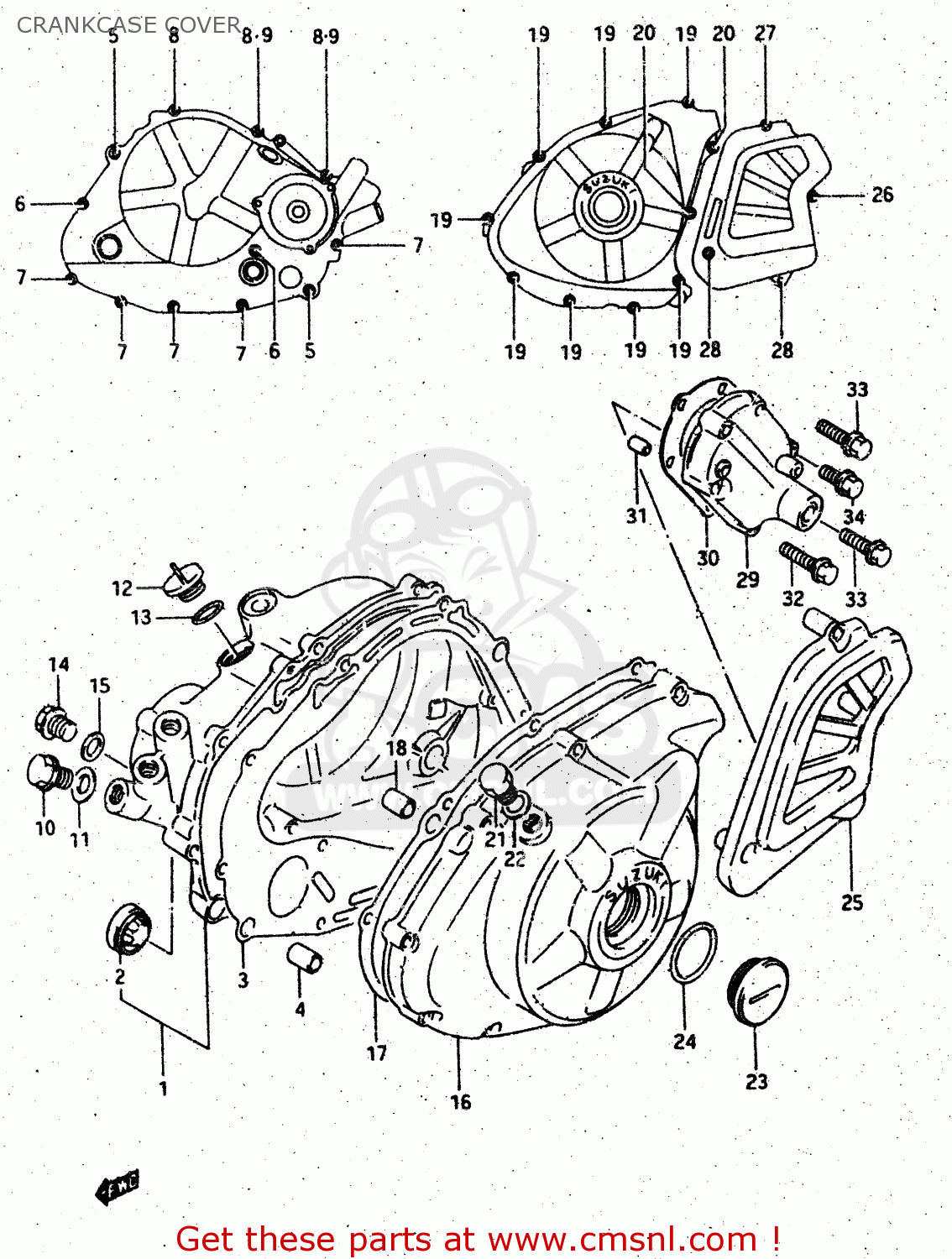

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134014A03
ref: 1-1
MODEL G/H

COVER,CLUTCH

€ 186.50

1-2

1134014A04
ref: 1-2
MODEL J

COVER,CLUTCH

€ 186.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3-1

1148214A01
ref: 3-1
MODEL G/H

GASKET,CLUTCH COVER

€ 29.50

3-2

1148214A03
ref: 3-2
MODEL J

GASKET,CLUTCH COVER (MCA)

€ 29.50

4

0920613001
ref: 4

PIN

€ 2.50

5

0154706505
ref: 5

BOLT 6X50

€ 3.50

6

0154706404
ref: 6

BOLT 6X40

€ 3.00

7

0154706354
ref: 7

BOLT 6X35

€ 3.00

8

0154706254
ref: 8

BOLT 6X25

€ 2.50

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

0924714015
ref: 10

PLUG(14X12)

€ 2.50

11

0916814004
ref: 11

GASKET(14X19.2X2) (NAS)

€ 2.50

12

0925920013
ref: 12

PLUG

€ 9.50

13

0928017003
ref: 13

O RING(D:3.1,ID:16.8)

€ 2.00

14

0924714015
ref: 14

PLUG(14X12)

€ 2.50

15

0916814004
ref: 15

GASKET(14X19.2X2) (NAS)

€ 2.50

16

1135114A10
ref: 16

COVER,MAGNETO

€ 129.00

17

1148314A00
ref: 17

GASKET,MAGNETO COVER (MCA)

€ 41.00

18

0920613001
ref: 18

PIN

€ 2.50

19

0154706304
ref: 19

BOLT 6X30

€ 2.50

20

0154706254
ref: 20

BOLT 6X25

€ 2.50

21

0924712103
ref: 21

PLUG(12X9)

€ 3.50

22

0916812002
ref: 22

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

23

0925936007
ref: 23

PLUG

€ 10.50

24

0928033004
ref: 24

O RING(D:3.1,ID:32.7)

€ 2.50

25

1136114A01
ref: 25

COVER,ENGINE SPROCKET

€ 48.50

26

0154706454
ref: 26

BOLT

€ 3.00

27

0154706354
ref: 27

BOLT 6X35

€ 3.00

28

0154706205
ref: 28

BOLT 6X20

€ 2.50

29

1137137400
ref: 29

COVER,GEAR SHIFT

€ 37.00

30

1148514A00
ref: 30

GASKET,GEAR SHIFT COVER (MCA)

€ 4.50

31

0421109129
ref: 31

PIN

€ 2.00

32

0154706354
ref: 32

BOLT 6X35

€ 3.00

33

0154706304
ref: 33

BOLT 6X30

€ 2.50

34

0154706205
ref: 34

BOLT 6X20

€ 2.50
