CYLINDER HEAD
DR500R 1987 (H)

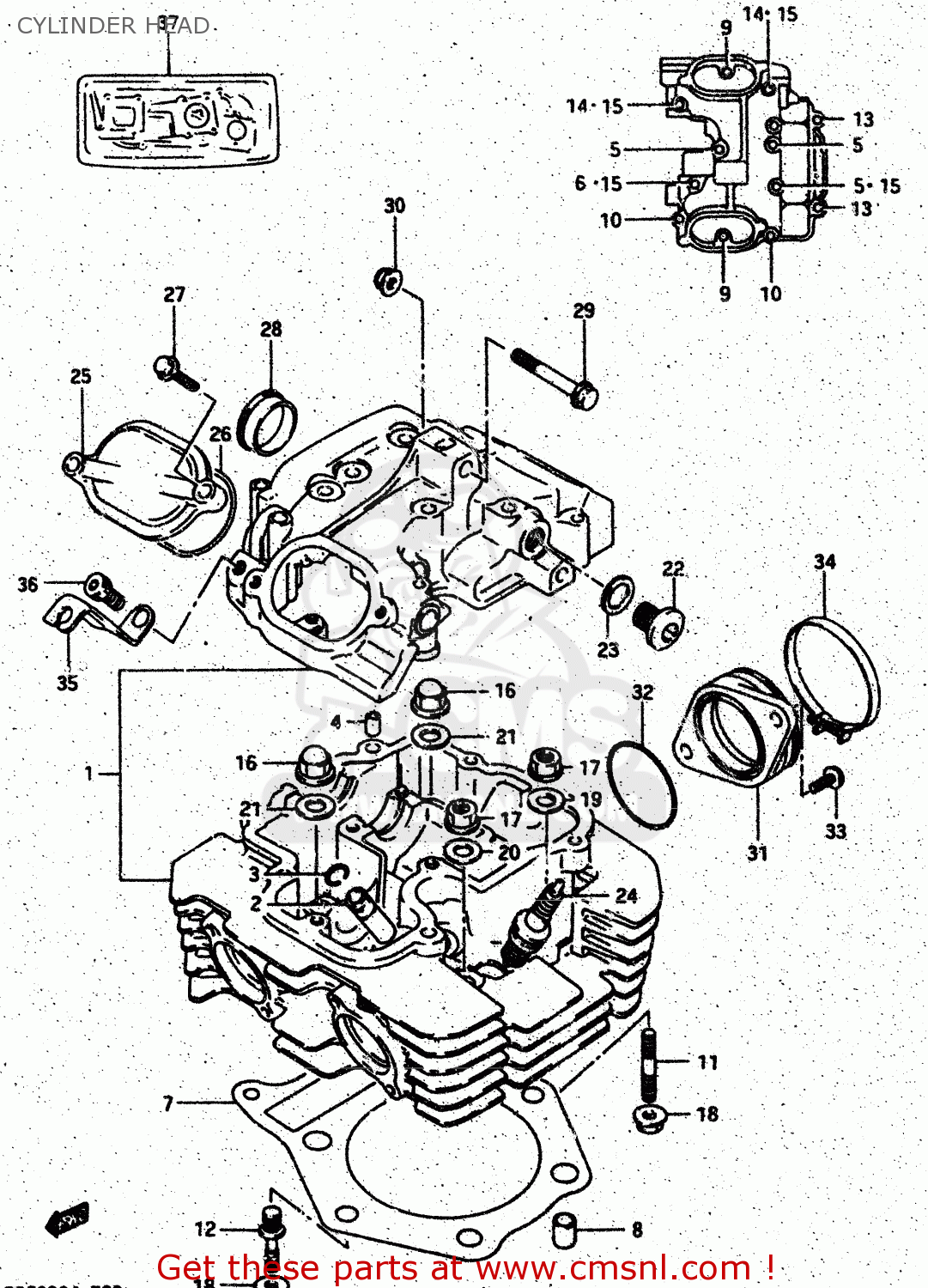

Cylinder head diagram DR500R 1987 (H)
CYLINDER HEAD DR500R 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110014A02
ref: 1-1
MODEL G/H,TO 11100-1
HEAD ASSEMBLY,CYLINDER
€ 804.50
1-2
1110014A03
ref: 1-2
MODEL J
HEAD ASSEMBLY,CYLINDER
€ 804.50
2
1111537470
ref: 2
GUIDE,VALVE
€ 20.00
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0151706605
ref: 5
BOLT ,6X60
€ 2.50
6
0910306040
ref: 6
BOLT 6X55
€ 7.00
7
1114114A01
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 48.00
8
0920613001
ref: 8
PIN
€ 2.50
9
0151706254
ref: 9
BOLT
€ 2.50
10
0151706404
ref: 10
BOLT
€ 2.00
11
0910808161
ref: 11
STUD
€ 3.50
12
0910808162
ref: 12
STUD
€ 12.50
13
0910306085
ref: 13
BOLT(6X130)
€ 4.50
14
0151706605
ref: 14
BOLT ,6X60
€ 2.50
15
0916806023
ref: 15
GASKET(5.8X13X1.2) (NAS)
€ 2.00
16
0915910025
ref: 16
NUT
€ 2.00
17
0831616105
ref: 17
NUT
€ 2.00
18
0831616085
ref: 18
NUT 8MM
€ 3.00
19
0916010039
ref: 19
WASHER(10.5X22X2.3)
€ 2.50
20
0916010093
ref: 20
WASHER(10.5X24X2.3)
€ 2.00
21
0916810017
ref: 21
GASKET(10.5X22X2) (NAS)
€ 3.50
22
0924814004
ref: 22
PLUG
€ 5.00
23
0916814004
ref: 23
GASKET(14X19.2X2) (NAS)
€ 2.50
24-1
0948200330
ref: 24-1
PLUG,SPARK(DPR9EA-9)
€ 4.00
24-2
0948200331111
ref: 24-2
SPARK PLUG X27EPR-U9
€ 4.00
25
1117514A00
ref: 25
CAP,INSPECTION
€ 16.00
26
0928060004
ref: 26
O RING(D:2.4,ID:23)
€ 4.50
27
0151706254
ref: 27
BOLT
€ 2.50
28
0924130004
ref: 28
PLUG(OD:30)
€ 6.50
29
0910308082
ref: 29
BOLT 8X50
€ 7.00
30
0831931085
ref: 30
NUT
€ 2.50
31-1
1311014A02
ref: 31-1
MODEL G/H
PIPE,INTAKE
€ 36.00
31-2
1311014A11
ref: 31-2
MODEL J
PIPE,INTAKE
€ 38.50
32
0928046002
ref: 32
O RING(D:2.4,ID:45.7)
€ 9.50
33
0215206205
ref: 33
SCREW
€ 2.00
34-1
0940254208
ref: 34-1
MODEL G/H
CLAMP
€ 5.00
34-2
0940258208
ref: 34-2
MODEL J
CLAMP
€ 5.50
35
1294414A00
ref: 35
LEVER,DECOMP SHAFT RH
€ 6.50
36
0711008165
ref: 36
BOLT
€ 3.00
37-1
1140114822
ref: 37-1
OPT,TO 11401-14823
GASKET SET
€ 123.00
37-2
1140114823
ref: 37-2
MODEL J OPT
GASKET SET
€ 123.00
