CYLINDER

DR500R 1987 (H)

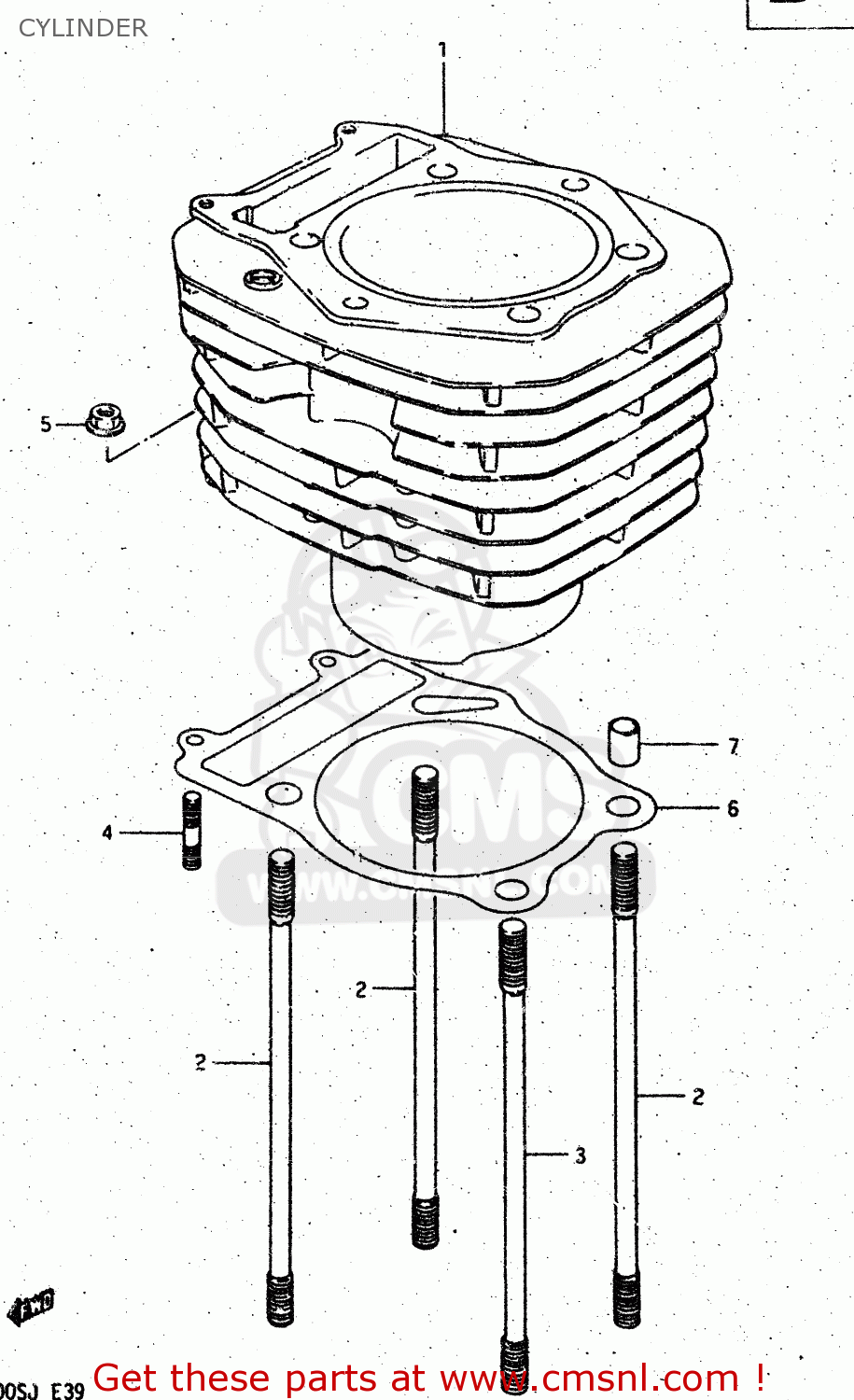

Cylinder diagram DR500R 1987 (H)

CYLINDER DR500R 1987 (H)
CYLINDER DR500R 1987 (H)
CYLINDER DR500R 1987 (H)
prices are in EUR
ref
part #
description
quantity
1
1121015A00
ref: 1
CYLINDER
€ 0.00
2
0910810039
ref: 2
STUD
€ 9.00
3
0910810075
ref: 3
STUD
€ 8.50
4
0142106205
ref: 4
STUD BOLT L:20
0142106205
€ 2.50
5
0831616064
ref: 5
NUT 6MM
0831616064
€ 2.50
6
1124114A01
ref: 6
GASKET,CYLINDER (MCA)
1124114A01
€ 27.00
7
0920613001
ref: 7
PIN
0920613001
€ 2.50
