SEAT (MODEL J)

DR500R 1987 (H)

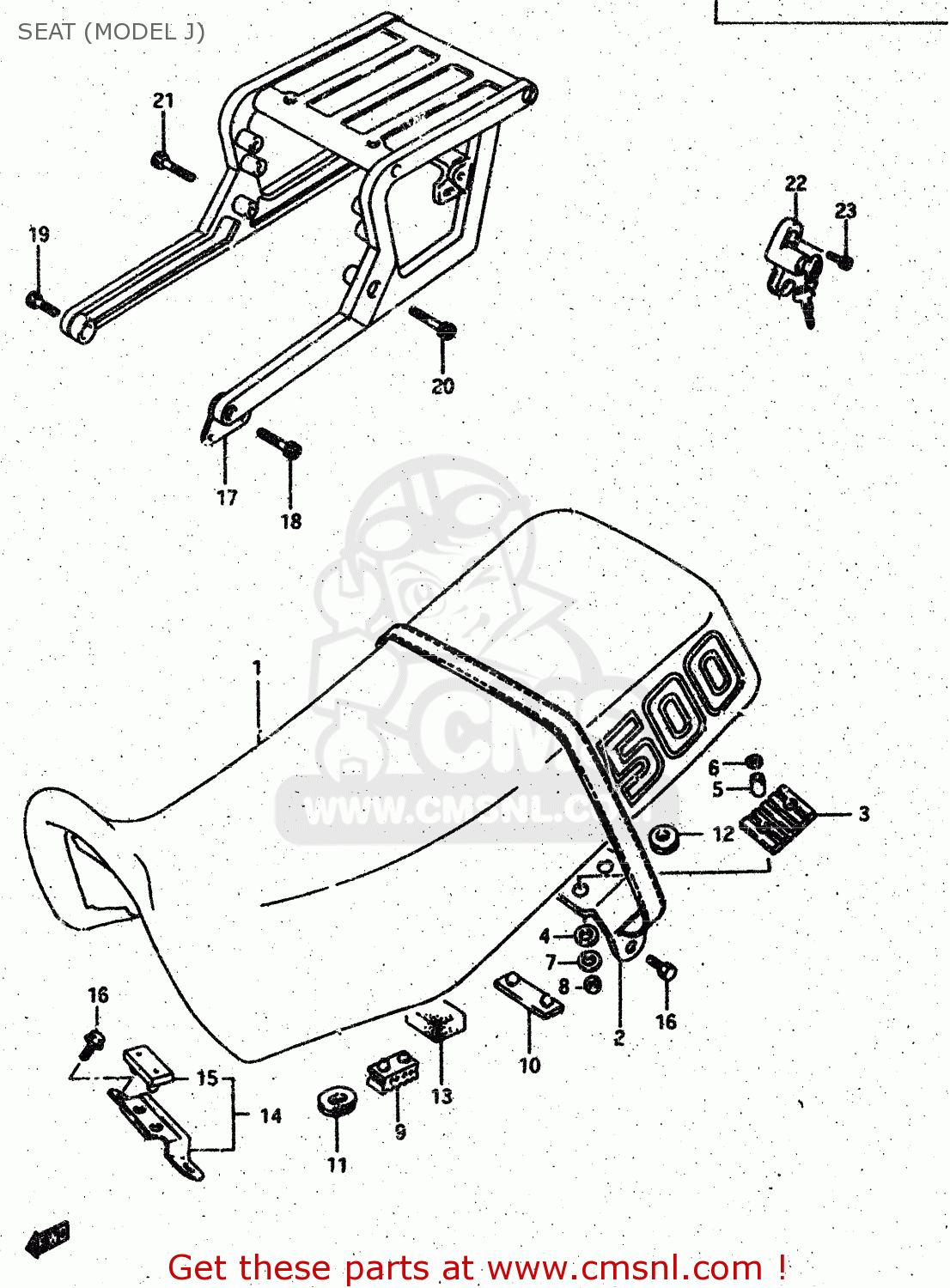

Seat (model j) diagram DR500R 1987 (H)

SEAT (MODEL J) DR500R 1987 (H)
SEAT (MODEL J) DR500R 1987 (H)
SEAT (MODEL J) DR500R 1987 (H)
prices are in EUR
ref
part #
description
quantity
1-1
4510015C004UZ
ref: 1-1
FOR 14L,21C
SEAT SET (BLUE)
€ 229.50
1-2
4510015C0058P
ref: 1-2
FOR 34S
SEAT SET (BLACK)
€ 0.00
2-1
4518014A504UZ
ref: 2-1
FOR 14L,21C
BAND, SEAT GRIP (BLUE)
4518014A504UZ
€ 25.00
2-2
4518014A5058P
ref: 2-2
FOR 34S
BAND,SEAT
€ 25.00
3
4514723450
ref: 3
CUSHION,SEAT FR
4514723450
€ 1.50
4
4515023450
ref: 4
CUSHION,FR PLATE
4515023450
€ 3.00
5
4521923450
ref: 5
SPACER,SEAT SUPPORT
€ 2.50
6
0821206201
ref: 6
WASHER
0821206201
€ 1.50
7
0832221066
ref: 7
WASHER, LOWER
0832221066
€ 2.00
8
0831626066
ref: 8
NUT
€ 2.00
9
4514931300
ref: 9
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
10
0932108019
ref: 10
CUSHION
€ 4.00
11
0932908003
ref: 11
CUSHION
0932908003
€ 3.50
12
0932008018
ref: 12
CUSHION
0932008018
€ 4.00
13
4525515510
ref: 13
CUSHION,TOOL(40X30X15)
4525515510
€ 4.00
14
4512014A00
ref: 14
PLATE ASSY,SEAT FR HOOK
4512014A00
€ 16.50
15
0932108010
ref: 15
CUSHION
0932108010
€ 4.00
16
0151708166
ref: 16
BOLT
€ 3.00
17
4630014A40
ref: 17
CARRIER ASSEMBLY,REAR
€ 282.00
18
0711008257
ref: 18
BOLT, FRONT LH
0711008257
€ 3.50
19
0711008358
ref: 19
BOLT, FRONT RH
€ 4.50
20
0711008508
ref: 20
BOLT ,8X50
€ 3.50
21
0711008608
ref: 21
BOLT, REAR RH
0711008608
€ 4.50
22
9570031810
ref: 22
LOCK SET,HELMET
€ 49.50
23
0711006165
ref: 23
BOLT
0711006165
€ 3.00
