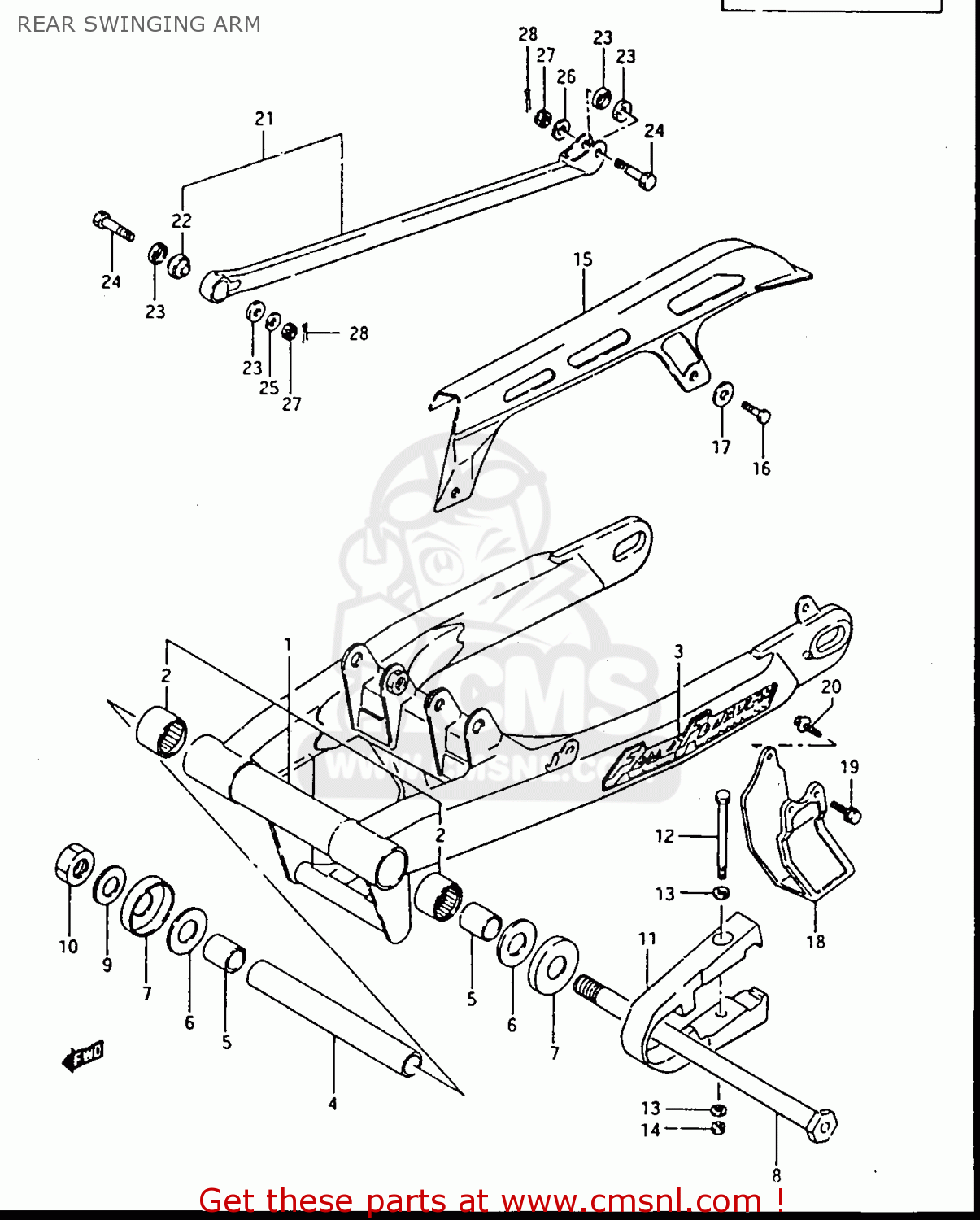

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6100014A1013L
ref: 1-1
SILVER,DR500SG/SH/SJ

SWINGING ARM ASSY, REAR

€ 217.00

1-2

611001485013L
ref: 1-2
SILVER, DR500RG/RH

SWINGING ARM ASSY, REAR

€ 217.00

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3-1

6838144A0097J
ref: 3-1
DR500SG/SH/SJ

EMBLEM

€ 4.50

3-2

6838144A0095K
ref: 3-2
DR500RG/RH

EMBLEM

€ 0.00

4

6128214A00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 15.00

5

6125132410
ref: 5

SPACER,RR SWGARM PIVOT

€ 8.50

6

0821116341
ref: 6

WASHER

€ 2.00

7

6126214A00
ref: 7

SEAL,RR SWGARM PIVOT DUST

€ 7.50

8

6121114A00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 36.50

9

0832211168
ref: 9

WASHER

€ 2.00

10

0831921168
ref: 10

NUT 16MM

€ 5.00

11

6127314A00
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 24.00

12

6127514A00
ref: 12

BOLT,TOUCH DEFENSE FTG

€ 2.50

13

0916005013
ref: 13

WASHER(5.2X16X1)

€ 1.50

14

0831921056
ref: 14

NUT

€ 1.50

15

6131014A00
ref: 15

CASE,CHAIN

€ 49.00

16

0110706104
ref: 16

BOLT

€ 2.00

17

0916906026
ref: 17

WASHER

€ 2.00

18

6134114A03
ref: 18

GUIDE,CHAIN

€ 25.00

19

0151706128
ref: 19

BOLT

€ 2.50

20

0151706167
ref: 20

BOLT 6X16

€ 1.50

21

643001486013L
ref: 21
SILVER

LINK,REAR TORQUE

€ 52.50

22

6435240411
ref: 22

SPHERICAL BEARING,TORQUE

€ 69.50

23

6433940410
ref: 23

6433940410

24

0910108017
ref: 24

BOLT 8X32

€ 2.50

25

0832211088
ref: 25

WASHER

€ 2.00

26

0916008042
ref: 26

WASHER

€ 2.50

27

0831441088
ref: 27

NUT 8MM

€ 2.50

28

0411120208
ref: 28

PIN 20X20

€ 1.50
