SEAT (MODEL G/H)
DR500R 1987 (H)

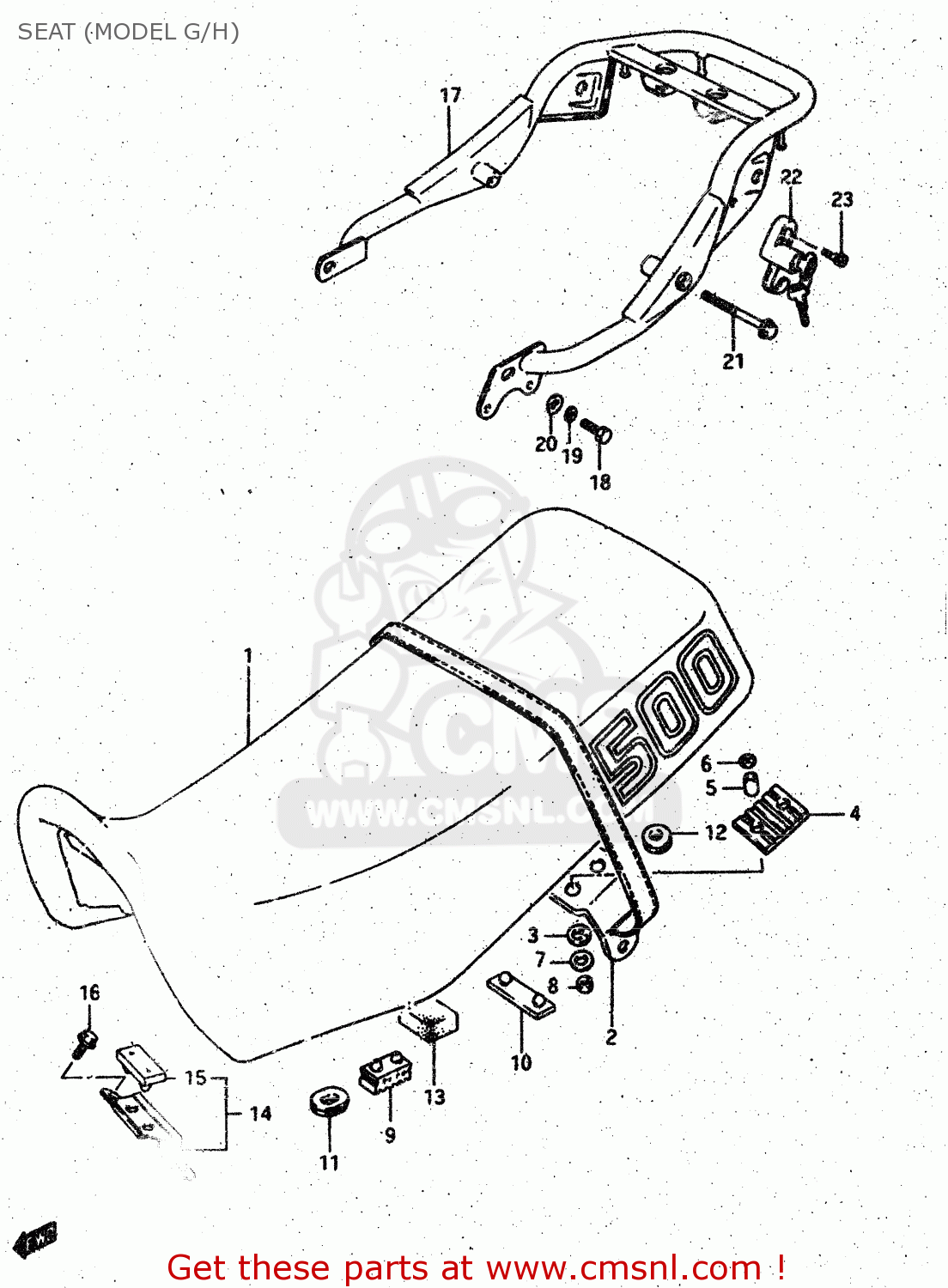

Seat (model g/h) diagram DR500R 1987 (H)
SEAT (MODEL G/H) DR500R 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015A1058D
ref: 1-1
DR500SG
SEAT SET (BLUE)
€ 229.50
1-2
4510015A908MW
ref: 1-2
DR500RG
SEAT SET
€ 0.00
1-3
45100150004UZ
ref: 1-3
DR500SH
SEAT SET (BLUE)
€ 0.00
1-4
4510015C109LH
ref: 1-4
DR500RH
SEAT SET (BLUE)
€ 0.00
2-1
4518014A5058D
ref: 2-1
DR500SG
BAND, SEAT GRIP (BLUE)
€ 25.00
2-2
4518014A0058D
ref: 2-2
DR500RG
BAND,SEAT
€ 16.50
2-3
4518014A504UZ
ref: 2-3
DR500SH
BAND, SEAT GRIP (BLUE)
€ 25.00
3
4514723450
ref: 3
CUSHION,SEAT FR
€ 1.50
4
4515023450
ref: 4
CUSHION,FR PLATE
€ 3.00
5
4521923450
ref: 5
SPACER,SEAT SUPPORT
€ 2.50
6
0821206201
ref: 6
WASHER
€ 1.50
7
0832221066
ref: 7
WASHER, LOWER
€ 2.00
8
0831626066
ref: 8
NUT
€ 2.00
9
4514931300
ref: 9
CUSHION,SEAT(40X20X15)
€ 2.00
10-1
0932108019
ref: 10-1
DR500SG/RG
CUSHION
€ 4.00
10-2
0932108009
ref: 10-2
DR500SH
CUSHION
€ 4.00
11
0932908003
ref: 11
CUSHION
€ 3.50
12
0932008018
ref: 12
CUSHION
€ 4.00
13
4525515510
ref: 13
CUSHION,TOOL(40X30X15)
€ 4.00
14
4512014A00
ref: 14
PLATE ASSY,SEAT FR HOOK
€ 16.50
15
0932108010
ref: 15
CUSHION
€ 4.00
16
0151708166
ref: 16
BOLT
€ 3.00
17-1
4631014A00291
ref: 17-1
DR500SG
CARRIER
€ 89.50
17-2
4631014A20291
ref: 17-2
DR500RG
CARRIER, SPORT (BLACK)
€ 0.00
17-3
4631014A20019
ref: 17-3
DR500SH
CARRIER, SPORT (BLACK)
€ 89.50
17-4
4631014A2034S
ref: 17-4
DR500SH
CARRIER COMP,SUPPORT
€ 89.50
18
0110708207
ref: 18
BOLT
€ 3.00
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
20
0832221088
ref: 20
WASHER
€ 2.00
21
0151708705
ref: 21
BOLT (8X70)
€ 2.50
22
9570031300KEY
ref: 22
LOCK SET
€ 49.50
23
0711006165
ref: 23
BOLT
€ 3.00
