ELECTRICAL

DR500R 1987 (H)

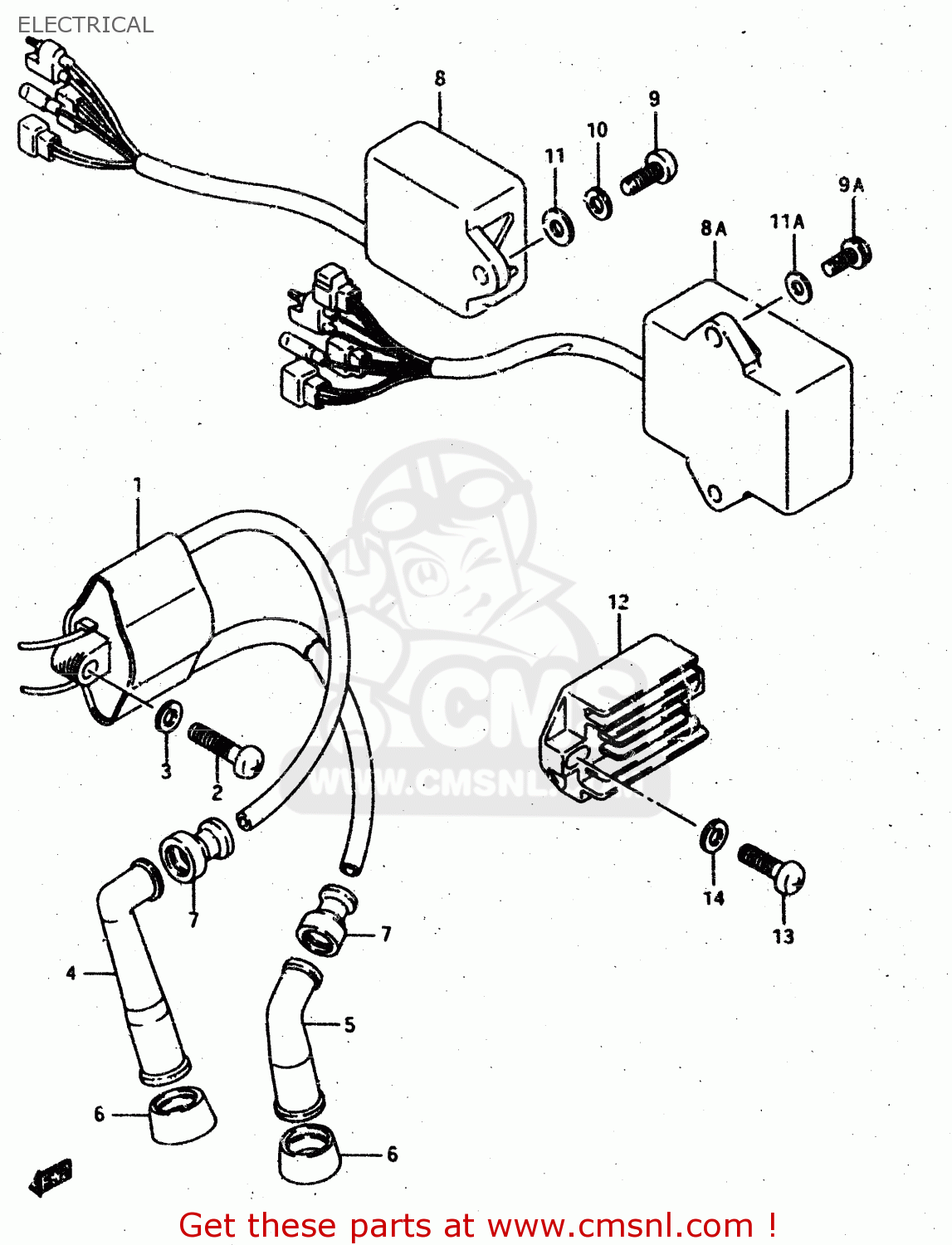

Electrical diagram DR500R 1987 (H)

ELECTRICAL DR500R 1987 (H)

ELECTRICAL DR500R 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

3341014A00
ref: 1

COIL ASSEMBLY,IGNITION

€ 161.50

2

0211206256
ref: 2

SCREW

€ 1.50

3

0332221066
ref: 3

LOCK WASHER

€ 0.00

4

3351045010
ref: 4

CAP ASSY,SPARK PLUG

€ 23.00

5

3351043010
ref: 5

CAP,SPARK PLUG

€ 11.50

6

3354124510
ref: 6

SEAL,SPARK PLUG CAP

€ 7.00

7

3354298000
ref: 7

SEAL,SPARK PLU

€ 4.50

8

3290014A11
ref: 8
MODEL G/H

CDI UNIT

€ 346.00

8A

3290014A20
ref: 8A
MODEL J

CDI UNIT

€ 329.50

9

0211206166
ref: 9
MODEL G/H

SCREW

€ 2.00

9A

0912806005
ref: 9A
MODEL J

SCREW

€ 2.50

10

0832121066
ref: 10

WASHER,LOCK

€ 2.00

11

0832221066
ref: 11
MODEL G/H

WASHER, LOWER

€ 2.00

11A

0832221067
ref: 11A
MODEL J

WASHER

€ 2.00

12

3280009300
ref: 12

RECTIFIER ASSEMBLY

€ 306.50

13

0211206206
ref: 13

SCREW

€ 2.00

14

0832121066
ref: 14

WASHER,LOCK

€ 2.00
