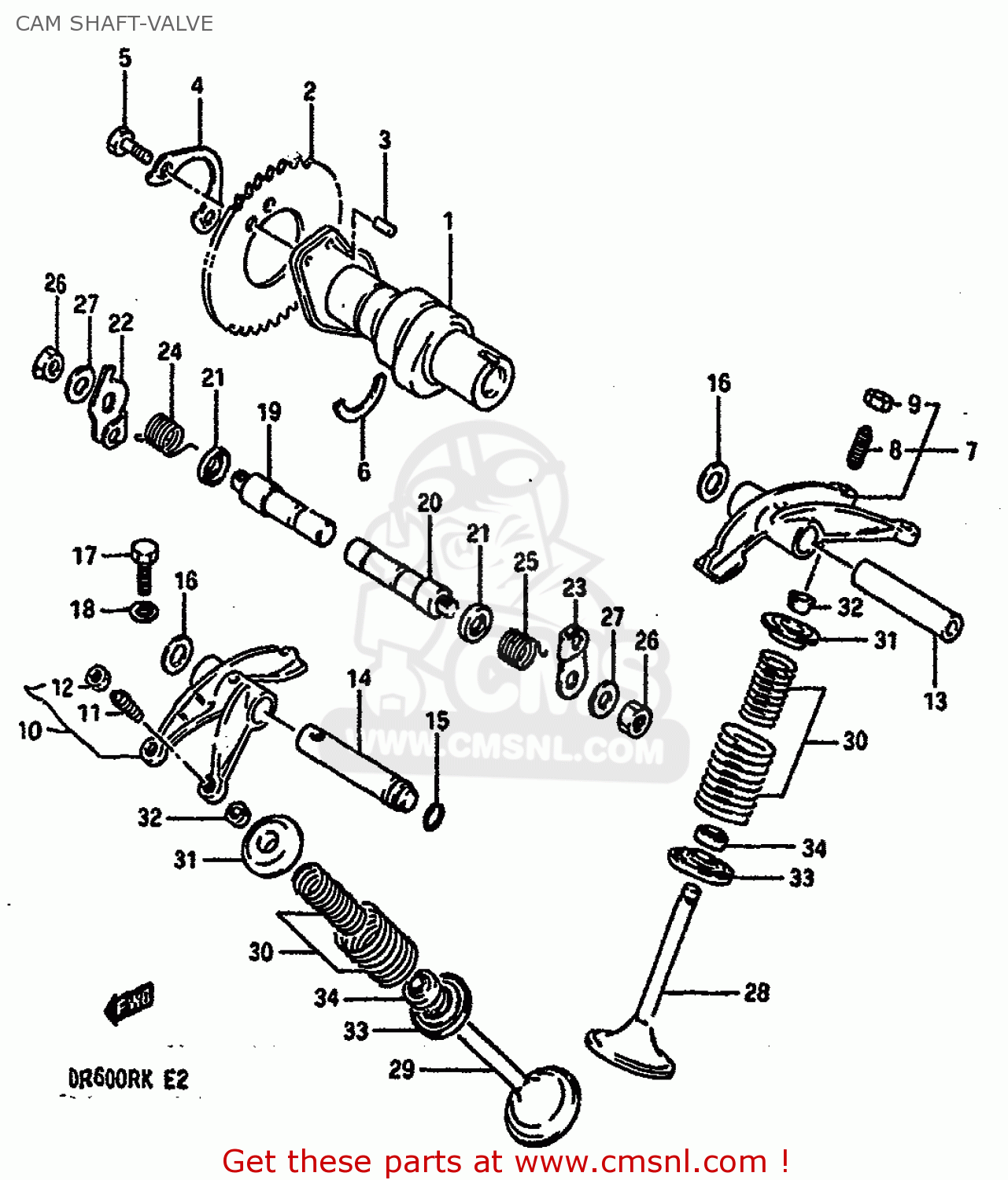

CAM SHAFT-VALVE

ref

part #

description

quantity

1

1271114A03
ref: 1

CAMSHAFT

€ 208.50

2

1274137400
ref: 2

SPROCKET,CAMSHAFT(NT:42)

€ 34.50

3

0422105109
ref: 3

PIN

€ 1.50

4

1274744000
ref: 4

WASHER,CAM CHAIN SPROCKET

€ 2.00

5

0911106027
ref: 5

BOLT(6X12.5)

€ 1.50

6

0939025003
ref: 6

C RING

€ 2.50

7

1284037401
ref: 7
FROM 12840-37400

ARM,VALVE ROCKER,INTAKE

€ 80.50

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1285037401
ref: 10

ARM,VALVE ROCKER EXHAUST

€ 123.00

11

1284232411
ref: 11

SCREW,TAPPET ADJUSTING

€ 5.00

12

1284332400
ref: 12

NUT,ADJUSTING SCREW

€ 2.50

13

1286114A01
ref: 13
L:73

SHAFT,VALVE ROCKER ARM

€ 19.50

14

1287114A00
ref: 14
L:78.5

SHAFT,EXHAUST VALVE ROCKER ARM

€ 20.00

15

0928009005
ref: 15

O RING(D:1.9,ID:8.6)

€ 4.00

16

0916412018
ref: 16

WASHER

€ 1.50

17

0151706305
ref: 17

BOLT 6X30

€ 2.50

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

1294137103
ref: 19

SHAFT,DECOMP LH

€ 63.00

20

1294114A03
ref: 20

SHAFT,DECOMP,L

€ 20.00

21-1

0928410008
ref: 21-1
MODEL G/H TO 09282-1

OIL SEAL

€ 6.50

21-2

0928210014
ref: 21-2
MODEL J

SEAL,OIL(10X17X6)

€ 6.50

22

1294237101
ref: 22

LEVER,DECOMP SHAFT

€ 4.50

23

1294214A03
ref: 23

LEVER,DECOMPRESSION SHAFT,LEFT

€ 3.00

24

0944817014
ref: 24

SPRING

€ 21.50

25

0944817018
ref: 25

SPRING

€ 5.00

26

0831022085
ref: 26

NUT 8MM

€ 2.00

27

0832211084
ref: 27

WASHER

€ 1.50

28

1291137400
ref: 28

VALVE,INTAKE

€ 56.50

29

1291237400
ref: 29

VALVE,EXHAUST

€ 61.00

30

1292037400
ref: 30

SPRING SET,VALVE

€ 12.50

31

1293145000
ref: 31

RETAINER,VALVE SPRING

€ 6.00

32

1293245010
ref: 32

COTTER VALVE

€ 2.50

33

1293337400
ref: 33

SEAT,VALVE SPRING

€ 3.50

34

0928907002
ref: 34

SEAL,OIL(7X14.4X9)

€ 3.00

all assemblies
