CRANKCASE COVER

DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

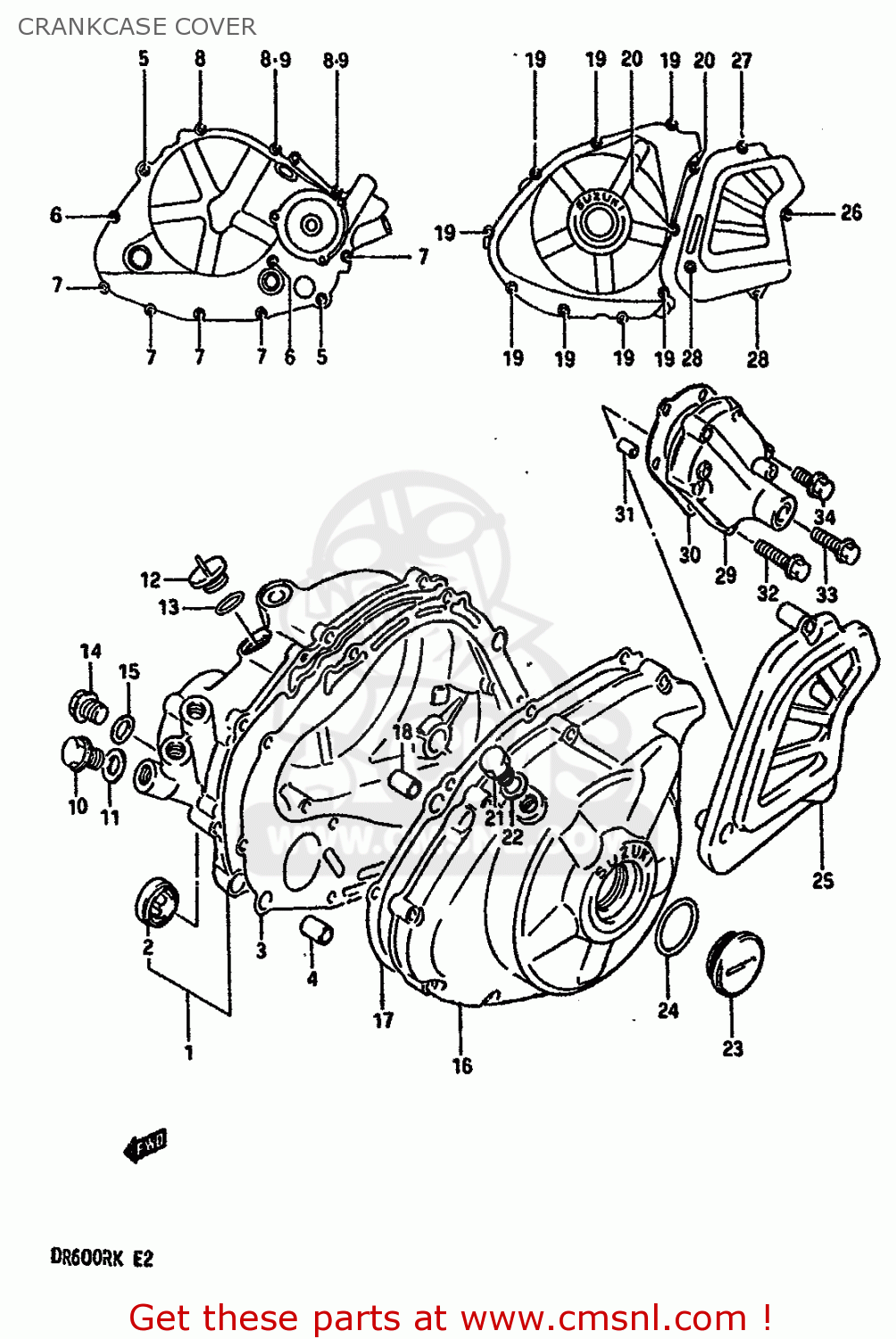

Crankcase cover diagram DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

CRANKCASE COVER DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
CRANKCASE COVER DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
CRANKCASE COVER DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1-1
1134014A03
ref: 1-1
MODEL G/H TO 11340-1
COVER,CLUTCH
€ 186.50
1-2
1134014A04
ref: 1-2
MODEL J
COVER,CLUTCH
1134014A04
€ 186.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3-1
1148214A01
ref: 3-1
MODEL G
GASKET,CLUTCH COVER
€ 29.50
3-2
1148214A02
ref: 3-2
MODEL H
GASKET,CLUTCH COVER
€ 29.50
3-3
1148214A03
ref: 3-3
MODEL J
GASKET,CLUTCH COVER (MCA)
1148214A03
€ 29.50
3-4
1148214A03H17
ref: 3-4
E17
GASKET,CLUTCH COVER (NAS)
1148214A03H17
€ 29.50
4
0920613001
ref: 4
PIN
0920613001
€ 2.50
5
0154706505
ref: 5
BOLT 6X50
0154706505
€ 3.50
6
0154706404
ref: 6
BOLT 6X40
€ 3.00
7
0154706354
ref: 7
BOLT 6X35
0154706354
€ 3.00
8
0154706254
ref: 8
BOLT 6X25
0154706254
€ 2.50
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
10
0924714015
ref: 10
PLUG(14X12)
0924714015
€ 2.50
11
0916814004
ref: 11
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
12
0925920013
ref: 12
PLUG
0925920013
€ 9.50
13
0928017003
ref: 13
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
14
0924714015
ref: 14
PLUG(14X12)
0924714015
€ 2.50
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
16
1135114A10
ref: 16
COVER,MAGNETO
1135114A10
€ 129.00
17-1
1148314A00
ref: 17-1
GASKET,MAGNETO COVER (MCA)
1148314A00
€ 41.00
17-2
1148314A00H17
ref: 17-2
E17
GASKET,MAGNETO COVER (NA) (MCA)
€ 41.00
18
0920613001
ref: 18
PIN
0920613001
€ 2.50
19
0154706304
ref: 19
BOLT 6X30
0154706304
€ 2.50
20
0154706254
ref: 20
BOLT 6X25
0154706254
€ 2.50
21
0924712103
ref: 21
PLUG(12X9)
0924712103
€ 3.50
22
0916812002
ref: 22
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
23
0925936007
ref: 23
PLUG
0925936007
€ 10.50
24
0928033004
ref: 24
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
25
1136114A01
ref: 25
COVER,ENGINE SPROCKET
1136114A01
€ 48.50
26
0154706454
ref: 26
BOLT
0154706454
€ 3.00
27
0154706354
ref: 27
BOLT 6X35
0154706354
€ 3.00
28
0154706205
ref: 28
BOLT 6X20
€ 2.50
29
1137137400
ref: 29
COVER,GEAR SHIFT
1137137400
€ 37.00
30-1
1148514A00
ref: 30-1
GASKET,GEAR SHIFT COVER (MCA)
1148514A00
€ 4.50
30-2
1148514A00H17
ref: 30-2
E17
GASKET,GEAR SHIFT COVER (NA) (MCA)
€ 4.50
31
0421109129
ref: 31
PIN
0421109129
€ 2.00
32
0154706354
ref: 32
BOLT 6X35
0154706354
€ 3.00
33
0154706304
ref: 33
BOLT 6X30
0154706304
€ 2.50
34
0154706205
ref: 34
BOLT 6X20
€ 2.50
