CRANKCASE

DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

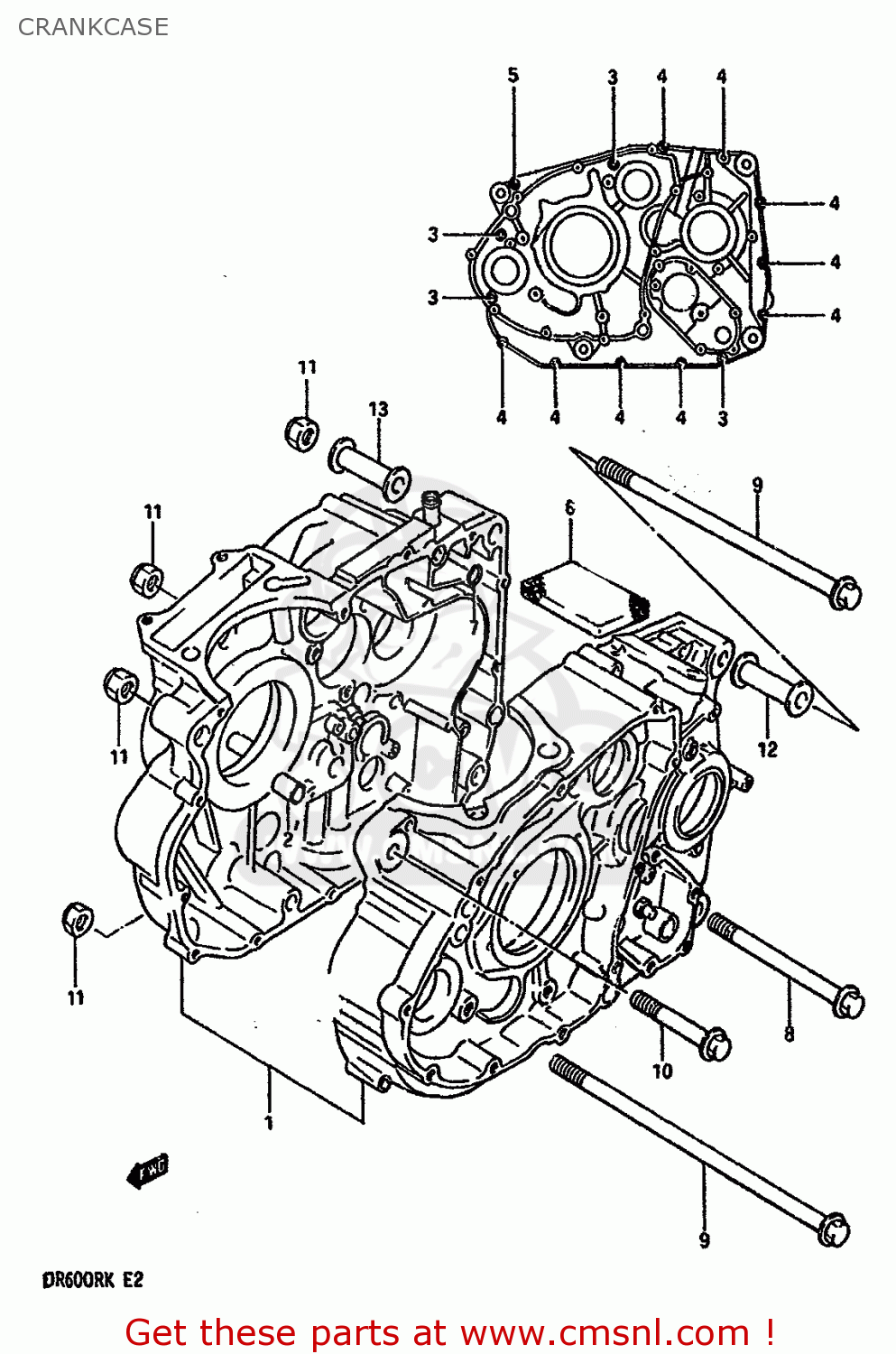

Crankcase diagram DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

CRANKCASE DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

CRANKCASE DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1-1

1130014A01
ref: 1-1
MODEL G/H TO 11300-1

CRANKCASE SET

€ 721.50

1-2

1130014A02
ref: 1-2
MODEL J

CRANKCASE SET

€ 721.50

2

0920613001
ref: 2

PIN

€ 2.50

3

0154706605
ref: 3

BOLT (6X60)

€ 3.50

4

0154706404
ref: 4

BOLT 6X40

€ 3.00

5

0154706304
ref: 5

BOLT 6X30

€ 2.50

6

1132814A01
ref: 6

HOSE

€ 4.50

7

0928009004
ref: 7

O-RING

€ 4.00

8

0910310141
ref: 8
FROM 09103-10062

BOLT(10X125)

€ 6.00

9

0910310093
ref: 9

BOLT

€ 9.50

10

0910310098
ref: 10

BOLT

€ 7.00

11

0915910047
ref: 11

NUT

€ 7.50

12

1161014A00
ref: 12

SPACER,ENG MTG(L:55)

€ 9.00

13

1161014A10
ref: 13

SPACER,ENG MTG,R(L:60)

€ 8.50
