METER VISOR

DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

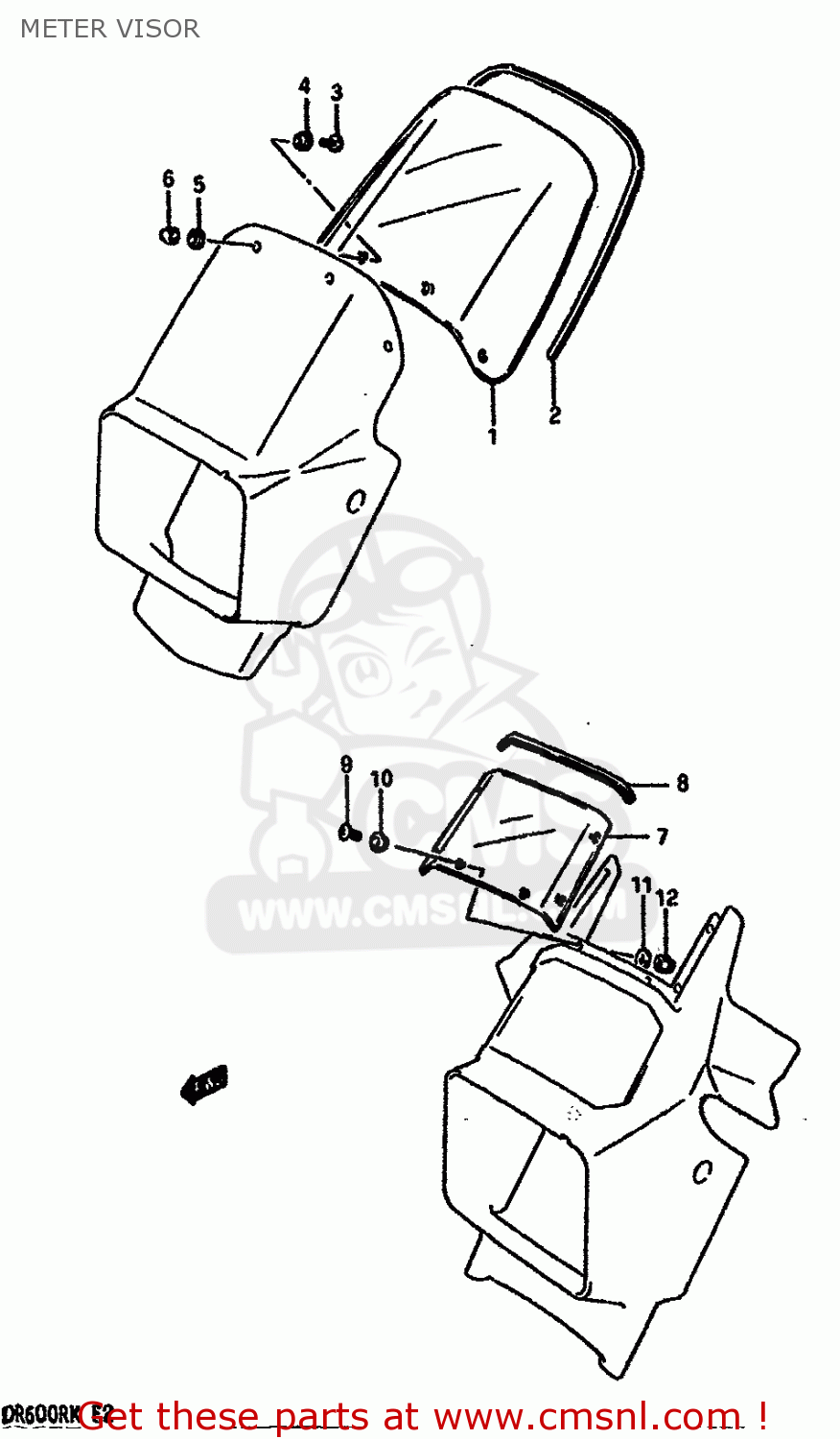

Meter visor diagram DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

METER VISOR DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

METER VISOR DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1

9461114A00
ref: 1
MODEL G

VISOR, METER

€ 143.00

2

9463114A00
ref: 2
MODEL G

MOLDING (L:545)

€ 15.00

3

0214205104
ref: 3
MODEL G

SCREW 5X10

€ 2.50

4

0932005008
ref: 4
MODEL G

CUSHION

€ 5.00

5

0832221055
ref: 5
MODEL G

WASHER,5MM

€ 2.50

6

0831311055
ref: 6
MODEL G

NUT

€ 2.00

7

9461115A00
ref: 7
MODEL H/J/K

VISOR, METER

€ 94.00

8-1

9463115A00
ref: 8-1
MODEL H/J/K

MOLDING

€ 15.00

8-2

9463115A10
ref: 8-2
MODEL H/J/K E17

MOLDING

€ 14.00

9

0214205104
ref: 9
MODEL H/J/K

SCREW 5X10

€ 2.50

10

0932005008
ref: 10
MODEL H/J/K

CUSHION

€ 5.00

11

0832221055
ref: 11
MODEL H/J/K

WASHER,5MM

€ 2.50

12

0831311055
ref: 12
MODEL H/J/K

NUT

€ 2.00
