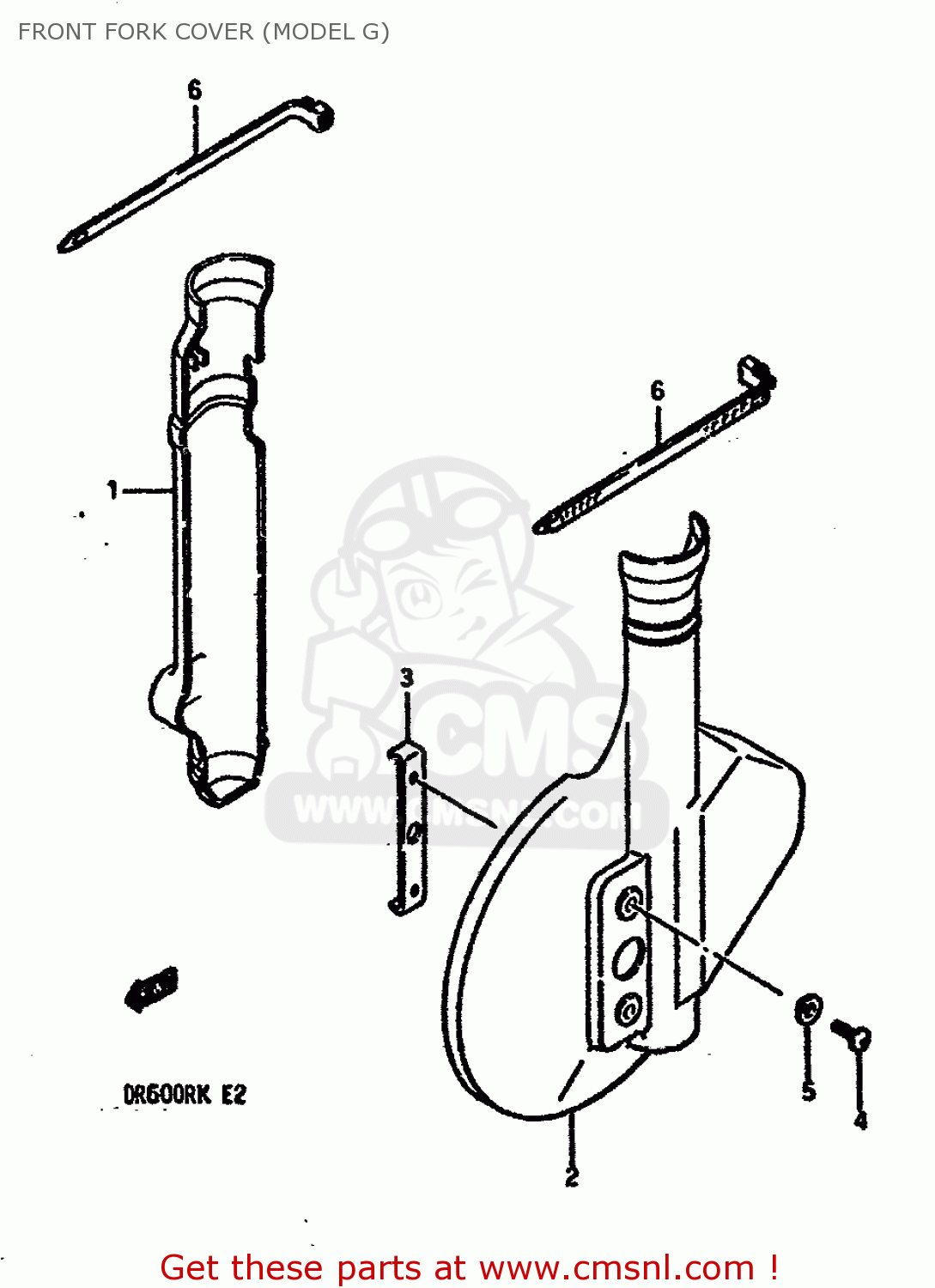

FRONT FORK COVER (MODEL G)

DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

Front fork cover (model g) diagram DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1-1

5120114A0010V
ref: 1-1
WHITE

PROTECTOR,FRONT FORK RH

€ 20.00

1-2

5120114A1010V
ref: 1-2
E22 WHITE

PROTECTOR, FRONT FORK RH

€ 20.00

2-1

5120214A0010V
ref: 2-1
WHITE

PROTECTOR,FRONT FORK LH

€ 62.50

2-2

5120214A1010V
ref: 2-2
E22 WHITE

PROTECTOR, FRONT FORK LH

€ 62.50

5121014A00
ref: 3

PLATE, PROTECTOR

€ 9.00

0214206127
ref: 4

SCREW 6X12

€ 1.50

0916906028
ref: 5

WASHER

€ 2.00

0940725403
ref: 6

CLAMP

€ 4.00
