OIL COOLER

DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

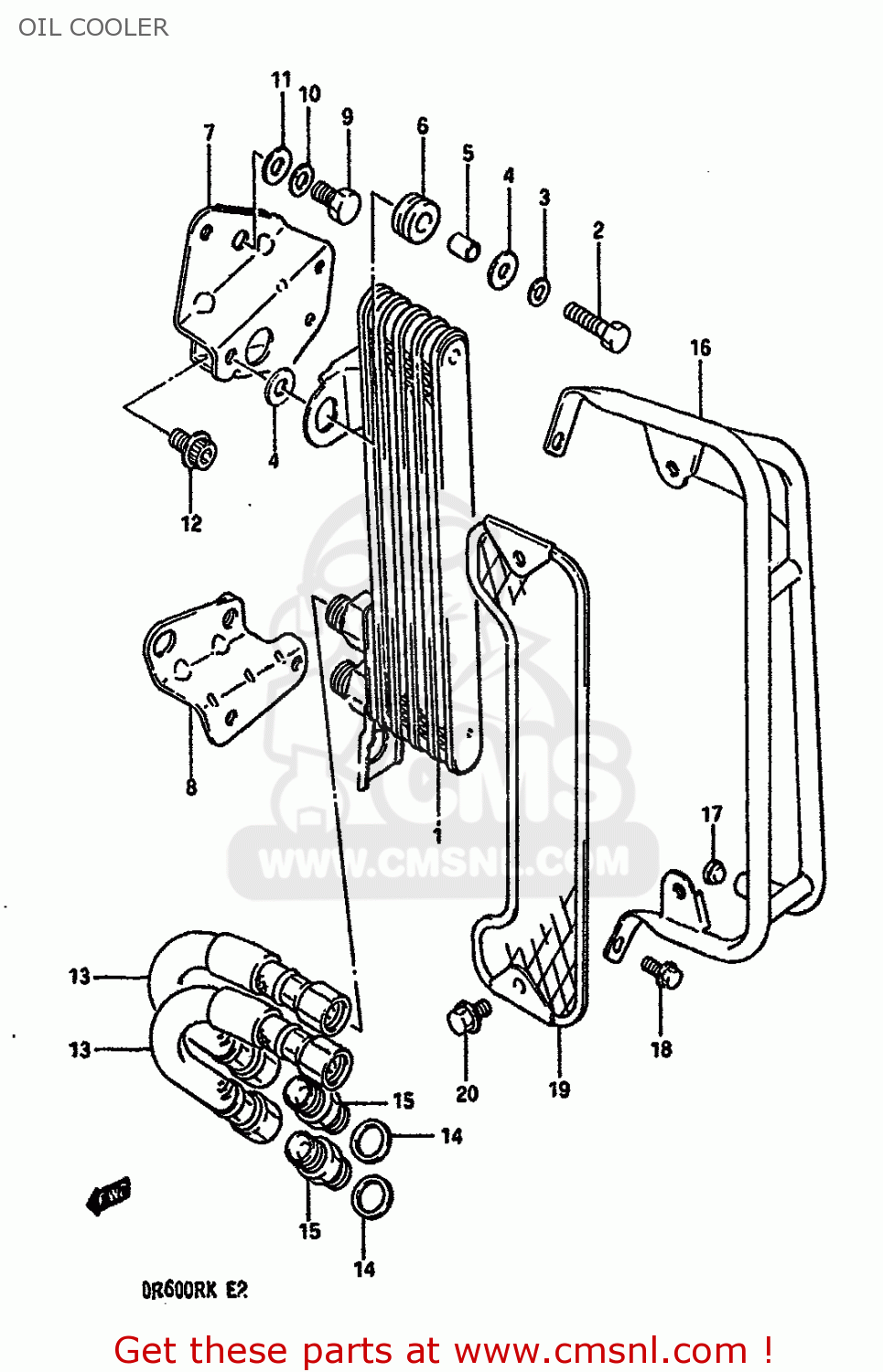

Oil cooler diagram DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

OIL COOLER DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
OIL COOLER DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
OIL COOLER DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1
1660014A00
ref: 1
COOLER ASSEMBLY,ENGINE OIL
1660014A00
€ 414.50
2
0110706255
ref: 2
BOLT
0110706255
€ 2.50
3
0832121064
ref: 3
WASHER,LOCK
0832121064
€ 2.00
4
0916006039
ref: 4
WASHER (6.5X18X1.6)
0916006039
€ 2.00
5
0918006030
ref: 5
SPACER (6.8X10X10)
0918006030
€ 2.00
6
0932010015
ref: 6
CUSHION
0932010015
€ 2.50
7
1662014A01
ref: 7
BRACKET,OIL COOLER NO.1
€ 12.50
8
1663014A00
ref: 8
BRACKET,OIL COOLER NO.2
€ 7.00
9
0110708165
ref: 9
BOLT
€ 2.00
10
0832121084
ref: 10
WASHER,LOCK,8.
0832121084
€ 2.50
11
0832211084
ref: 11
WASHER
0832211084
€ 1.50
12
0712008125
ref: 12
BOLT
€ 2.50
13
1646014A00
ref: 13
HOSE,OIL COOLER
1646014A00
€ 76.00
14
0916814011
ref: 14
GASKET(14X20X1.5) (NAS)
0916814011
€ 2.00
15
0936014006
ref: 15
BOLT UNION
0936014006
€ 9.50
16
1664014A02
ref: 16
GUARD,OIL COOLER
€ 58.00
17
0925007001
ref: 17
CAP(OD:10)
0925007001
€ 2.00
18
0154706127
ref: 18
BOLT
0154706127
€ 2.00
19
1665014A00
ref: 19
BUMPER,OIL COOLER
1665014A00
€ 33.00
20
0151706125
ref: 20
BOLT 6X12
0151706125
€ 2.50
