FOOTREST

DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

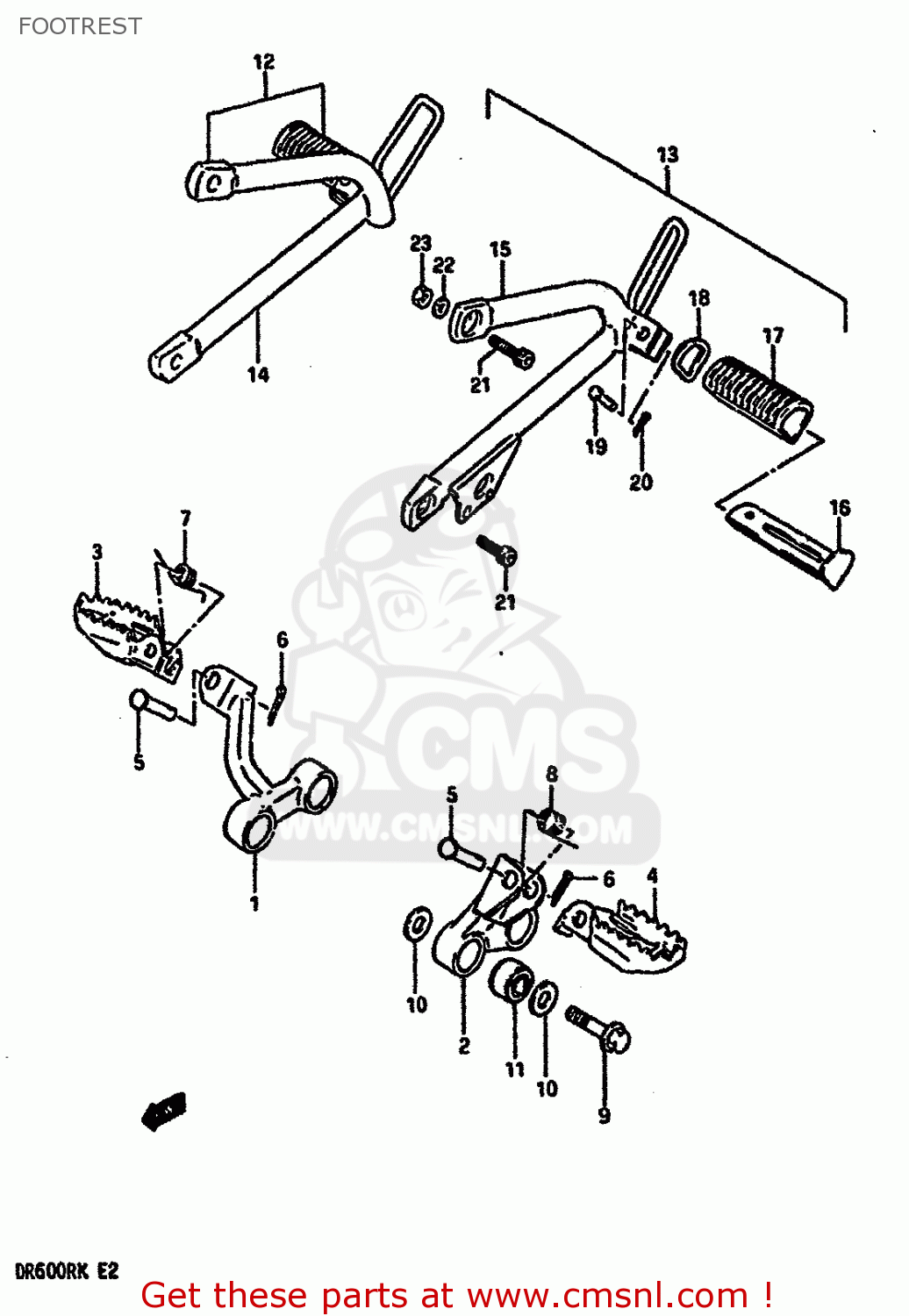

Footrest diagram DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

FOOTREST DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
FOOTREST DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
FOOTREST DR600R 1988 (J) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1-1
4351014A0010V
ref: 1-1
MODEL G
BAR, FOOTREST RH (WHITE)
€ 20.00
1-2
4351014A0034S
ref: 1-2
MODEL H/J/K
BAR, FOOTREST RH (BLUE)
€ 20.00
2-1
4352014A0010V
ref: 2-1
MODEL G
BAR, FOOTREST LH (WHITE)
€ 32.50
2-2
4352014A0034S
ref: 2-2
MODEL H/J/K
BAR, FOOTREST LH (BLUE)
€ 32.50
3-1
4355014A0010V
ref: 3-1
MODEL G
FOOTREST, FRONT RH (WHITE)
4355014A0010V
€ 69.00
3-2
4355014A0034S
ref: 3-2
MODEL H/J/K
FOOTREST, FRONT RH (BLUE)
€ 69.00
4-1
4356014A0010V
ref: 4-1
MODEL G
FOOTREST, FRONT LH (WHITE)
€ 122.00
4-2
4356014A0034S
ref: 4-2
MODEL H/J/K
FOOTREST, FRONT LH (BLUE)
€ 122.00
5
0920010008
ref: 5
PIN
0920010008
€ 3.00
6
0411120208
ref: 6
PIN 20X20
0411120208
€ 1.50
7
0944815008
ref: 7
SPRING
0944815008
€ 2.50
8
0944815004
ref: 8
SPRING
0944815004
€ 2.50
9
0910310045
ref: 9
BOLT(10X50)
0910310045
€ 3.50
10
0916010059
ref: 10
WASHER
0916010059
€ 2.50
11
0931910033
ref: 11
BUSH(10.2X25X19)
0931910033
€ 6.50
12-1
4360014A1010V
ref: 12-1
MODEL G
FOOTREST, PILLION RH (WHITE)
€ 113.00
12-2
4360014A1034S
ref: 12-2
MODEL H/J
FOOTREST, PILLION RH (BLUE)
€ 113.00
12-3
4360014C0034S
ref: 12-3
MODEL K
FOOTREST, PILLION RH (BLUE)
€ 113.00
13-1
4370014A2010V
ref: 13-1
MODEL G
FOOTREST, PILLION LH (WHITE)
€ 0.00
13-2
4370014A2034S
ref: 13-2
MODEL H
FOOTREST, PILLION LH (BLUE)
€ 112.00
13-3
4370015A0034S
ref: 13-3
MODEL J
FOOTREST,PILLION LH (BLUE)
€ 112.00
13-4
4370014C0034S
ref: 13-4
MODEL K
FOOTREST, PILLION LH (BLUE)
€ 140.50
14-1
4365014A0010V
ref: 14-1
MODEL G
HOLDER, RH (WHITE)
€ 67.50
14-2
4365014A0034S
ref: 14-2
MODEL H/J
HOLDER, RH (BLUE)
€ 67.50
14-3
4365014C0034S
ref: 14-3
MODEL K
HOLDER, RH (BLUE)
€ 113.00
15-1
4375014A0010V
ref: 15-1
MODEL G
HOLDER, LH (WHITE)
€ 73.50
15-2
4375014A0034S
ref: 15-2
MODEL H
HOLDER, LH (BLUE)
€ 73.50
15-3
4375015A0034S
ref: 15-3
MODEL J
HOLDER,LH (BLUE)
€ 73.50
15-4
4375014C0034S
ref: 15-4
MODEL K
HOLDER, LH (BLUE)
€ 140.50
16-1
4361014A10
ref: 16-1
BAR COMP,PILLION FOOTREST
4361014A10
€ 6.50
16-2
4362014A10
ref: 16-2
BAR COMP,PILLION FOOTREST
4362014A10
€ 7.50
17
4361214A00
ref: 17
RUBBER,PILLION FOOTREST
4361214A00
€ 4.00
18
4363114A10
ref: 18
WASHER,PILLION FOOTREST
4363114A10
€ 4.00
19
0920006010
ref: 19
PIN
0920006010
€ 2.50
20
0411120158
ref: 20
PIN
0411120158
€ 1.50
21
0711008208
ref: 21
BOLT
€ 3.00
22
0832121084
ref: 22
WASHER,LOCK,8.
0832121084
€ 2.50
23
0831011085
ref: 23
NUT
€ 1.50
