CARBURETOR
DR650RE 1995 (S) (E02 E04 E18)

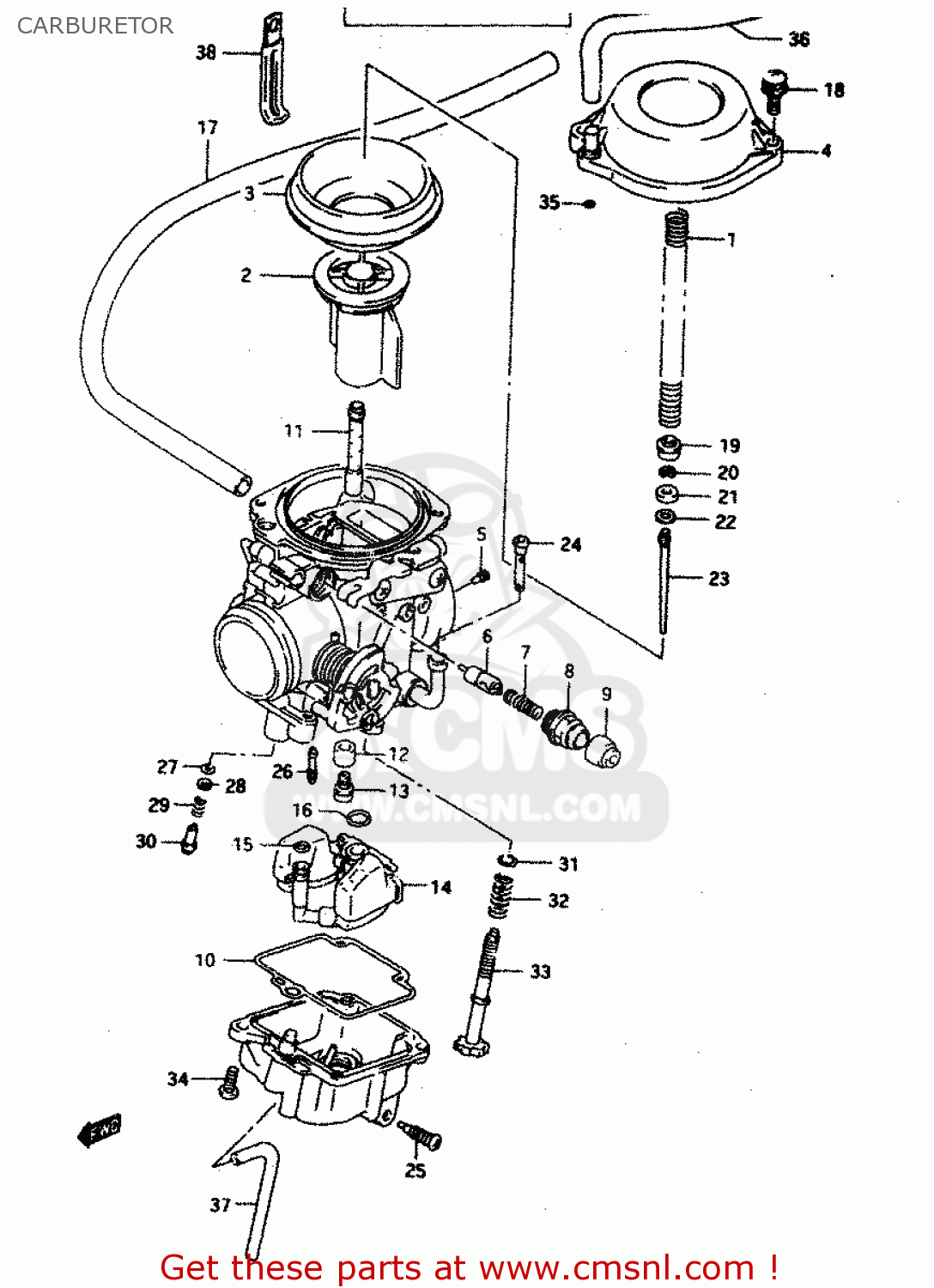

Carburetor diagram DR650RE 1995 (S) (E02 E04 E18)
CARBURETOR DR650RE 1995 (S) (E02 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
0
1320012EA0
ref: 0
CARBURETOR ASSY
€ 0.00
0
1320012EC0
ref: 0
DR650RER/RES E22, E2
CARBURETOR ASSY
€ 0.00
0
1320012ED0
ref: 0
DR650REUR E22
CARBURETOR ASSY
€ 0.00
1
1341717D00
ref: 1
SPRING
€ 5.50
2
1350112D00
ref: 2
VALVE,PISTON
€ 71.50
3
1350707D00
ref: 3
MODEL R
DIAPHRAGM
€ 24.50
3
1350707D01
ref: 3
MODEL S
DIAPHRAGM
€ 24.50
4
1350212D00
ref: 4
COVER,DIAPHRAGM
€ 38.50
4
1350241C10
ref: 4
DR650REUR/REUS E22
COVER,DIAPHRAGM
€ 32.00
5
0949328007
ref: 5
JET,AIR
€ 15.50
6
1341112D00
ref: 6
PLUNGER
€ 18.00
7
1341722010
ref: 7
SPRING
€ 3.00
8
1341843410
ref: 8
HOLDER,GUIDE
€ 6.50
9
1368104010
ref: 9
CAP
€ 3.00
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11
0949400754
ref: 11
JET,NEEDLE(Y-2)
€ 21.00
12
1333107D00
ref: 12
RING
€ 4.50
13
0949127009
ref: 13
JET,MAIN(135)
€ 10.50
13
0949127010
ref: 13
DR650RER/RES E22, E2
JET,MAIN(137.5)
€ 10.50
15
1327847090
ref: 15
O RING
€ 2.00
16
1337444080
ref: 16
O-RING,NEEDLE VALVE
€ 6.00
17
0935465113600
ref: 17
L:600->325
HOSE(6.5X11.5X600)
€ 26.00
18
0211275163
ref: 18
SCREW
€ 2.50
19
1333112D00
ref: 19
RING
€ 4.50
19
1333113D00
ref: 19
DR650REUR/REUS E22
RING
€ 4.00
20
1339431210
ref: 20
CLIP,NEEDLE
€ 3.50
21
1338707D00
ref: 21
RING
€ 4.50
22
1338246E00
ref: 22
DR650REUR/REUS E22
WASHER
€ 3.00
23
1338312E00
ref: 23
NEEDLE,JET
€ 16.50
23
1338312E30
ref: 23
DR650REUR/REUS E22
NEEDLE,JET(6F14)
€ 0.00
24
1323612C00
ref: 24
FILTER
€ 5.00
25
1324713A00
ref: 25
SCREW,DRAIN
€ 5.50
26
0949252010
ref: 26
JET,PILOT(52.5)
€ 12.50
26
0949247013
ref: 26
DR650RER/RES E22, E2
JET,PILOT(47.5)
€ 12.50
27
1329529900
ref: 27
O RING,PILOT AIR SCREW
€ 4.00
28
1329129900
ref: 28
WASHER
€ 2.00
29
1326847070
ref: 29
SPRING
€ 5.00
30
1327947070
ref: 30
SCREW,PILOT
€ 11.50
30
1327947070
ref: 30
DR650REUR/REUS E22
SCREW,PILOT
€ 11.50
31
1342738300
ref: 31
WASHER
€ 1.50
32
1327124D00
ref: 32
SPRING
€ 5.00
33
1326713D01
ref: 33
ADJUSTER
€ 15.00
34
1360105148
ref: 34
SCREW(5X14)
€ 3.00
35
1327802340
ref: 35
O RING
€ 1.50
36
0935445853600
ref: 36
L:600->250
HOSE (4.5X8.5X600)
€ 14.00
37
0935431684600
ref: 37
L:600->500
HOSE
€ 13.50
38
0940406402
ref: 38
MODEL R
CLAMP
€ 2.50
38
0940406429
ref: 38
MODEL S
CLAMP(L:45)
€ 2.50
