HEADLAMP (MODEL S)
DR650RE 1995 (S) (E02 E04 E18)

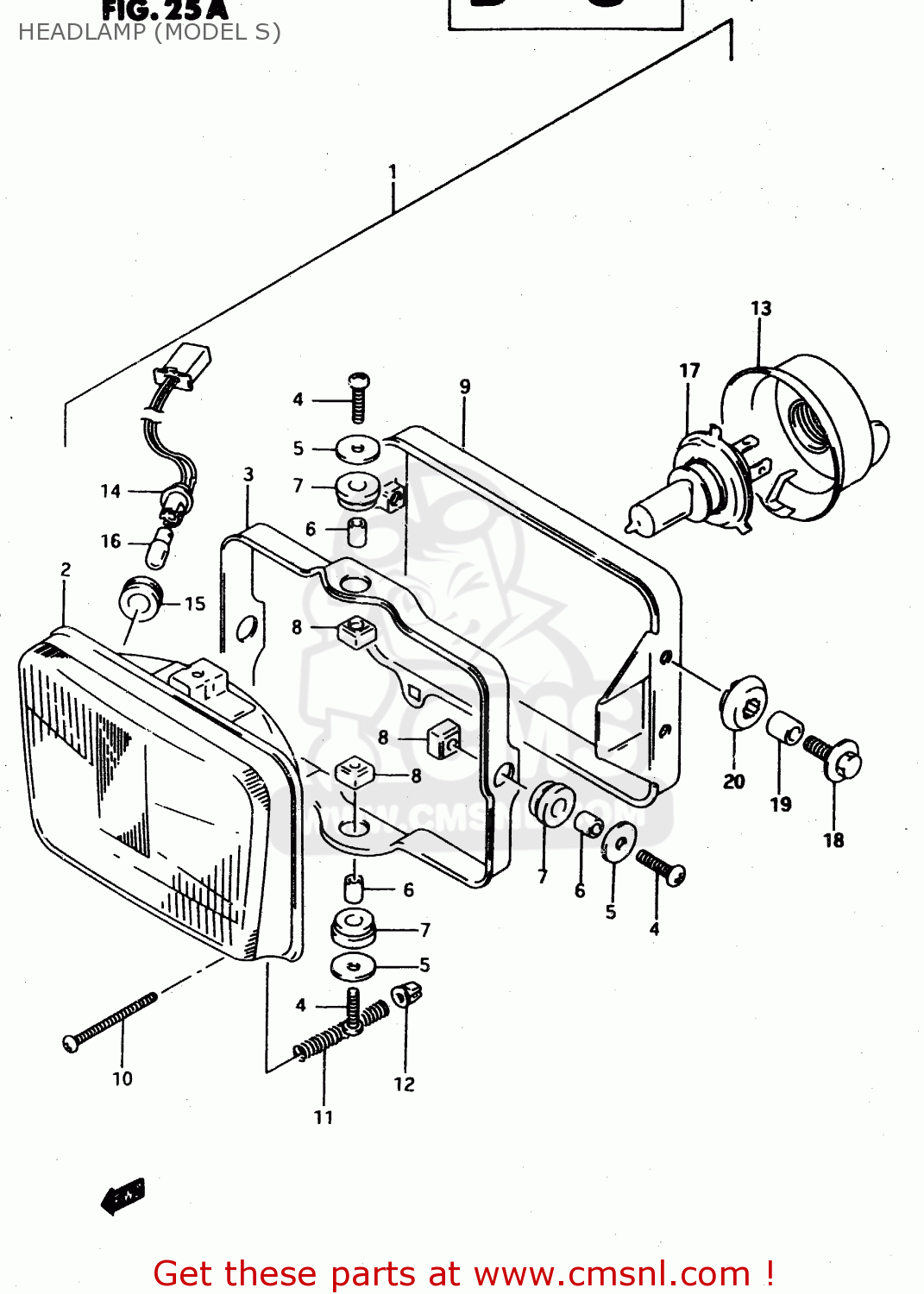

Headlamp (model s) diagram DR650RE 1995 (S) (E02 E04 E18)
HEADLAMP (MODEL S) DR650RE 1995 (S) (E02 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
3510012E20999
ref: 1
HEADLAMP ASSY
€ 346.00
1
3510012E30999
ref: 1
E24
HEADLAMP ASSEMBLY
€ 0.00
1
3510012E40999
ref: 1
E4, E18, E22, E34
HEADLAMP ASSY
€ 323.50
2
3512112E20
ref: 2
UNIT ASSY
€ 0.00
2
3512112E30
ref: 2
E24
UNIT ASSY
€ 145.00
2
3512112E40
ref: 2
E4, E18, E22, E34
UNIT ASSY
€ 232.00
3
3513012E20
ref: 3
RING,MOUNTING
€ 37.50
4
0211205163
ref: 4
SCREW
€ 2.00
5
0916005003
ref: 5
WASHER (5.5X18X1)
€ 2.00
6
3513345230
ref: 6
SPACER
€ 2.00
7
3513945230
ref: 7
CUSHION
€ 1.50
8
3513545900
ref: 8
NUT
€ 2.50
9
3514112E20
ref: 9
HOUSING
€ 71.00
10
0912504501
ref: 10
SCREW(4X45)
€ 3.00
11
3515412E20
ref: 11
SPRING,ADJUSTING
€ 2.00
12
3513512E20
ref: 12
NUT,ADJUSTING
€ 2.50
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14
3611812E20
ref: 14
CORD,POSITION
€ 23.50
15
3611622630
ref: 15
JOINT,RUBBER
€ 5.00
16
0947112063
ref: 16
BULB(12V4W)
€ 6.00
17
0947112060
ref: 17
BULB(12V60/55W,H4)
€ 8.00
18
0911606167
ref: 18
BOLT(6X20)
€ 2.00
19
0918006030
ref: 19
SPACER (6.8X10X10)
€ 2.00
20
0932009018
ref: 20
CUSHION
€ 2.00
