STARTING MOTOR

DR650RE 1995 (S) (E02 E04 E18)

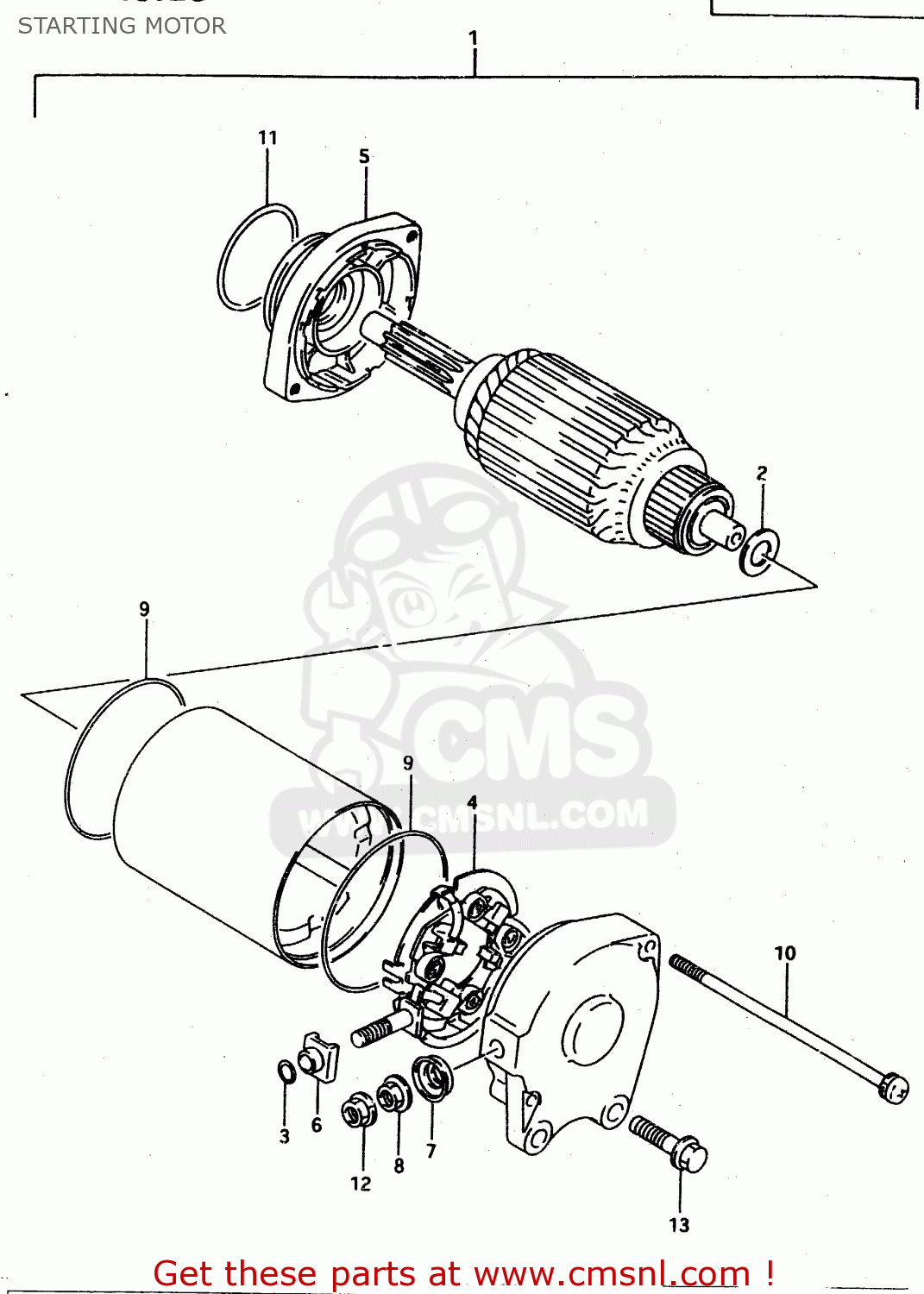

Starting motor diagram DR650RE 1995 (S) (E02 E04 E18)

STARTING MOTOR DR650RE 1995 (S) (E02 E04 E18)

STARTING MOTOR DR650RE 1995 (S) (E02 E04 E18)

prices are in EUR

ref

part #

description

quantity

1

3110012D01
ref: 1

MOTOR ASSEMBLY,STARTING

€ 600.50

2

3117043400
ref: 2

SHIM SET,STARTING MOTOR

€ 3.50

3

3114338300
ref: 3

O RING

€ 3.50

4

3113245C00
ref: 4

HOLDER SET,BRUSH

€ 46.00

5

3115044B00
ref: 5

BRACKET SET

€ 98.50

6

3117238300
ref: 6

BUSHING

€ 4.00

7

3117388C00
ref: 7

BUSHING

€ 6.00

8

0831000067
ref: 8

NUT

€ 2.50

9

3126444110
ref: 9

O RING

€ 8.00

10

3128124B10
ref: 10

BOLT

€ 5.00

11

3115624B00
ref: 11

O-RING (D:2.0)

€ 9.50

12

0836135066
ref: 12

NUT

€ 2.00

13

0154706253
ref: 13

SCREW

€ 2.50
