STAND - REAR BRAKE
DR650RE 1995 (S) (E02 E04 E18)

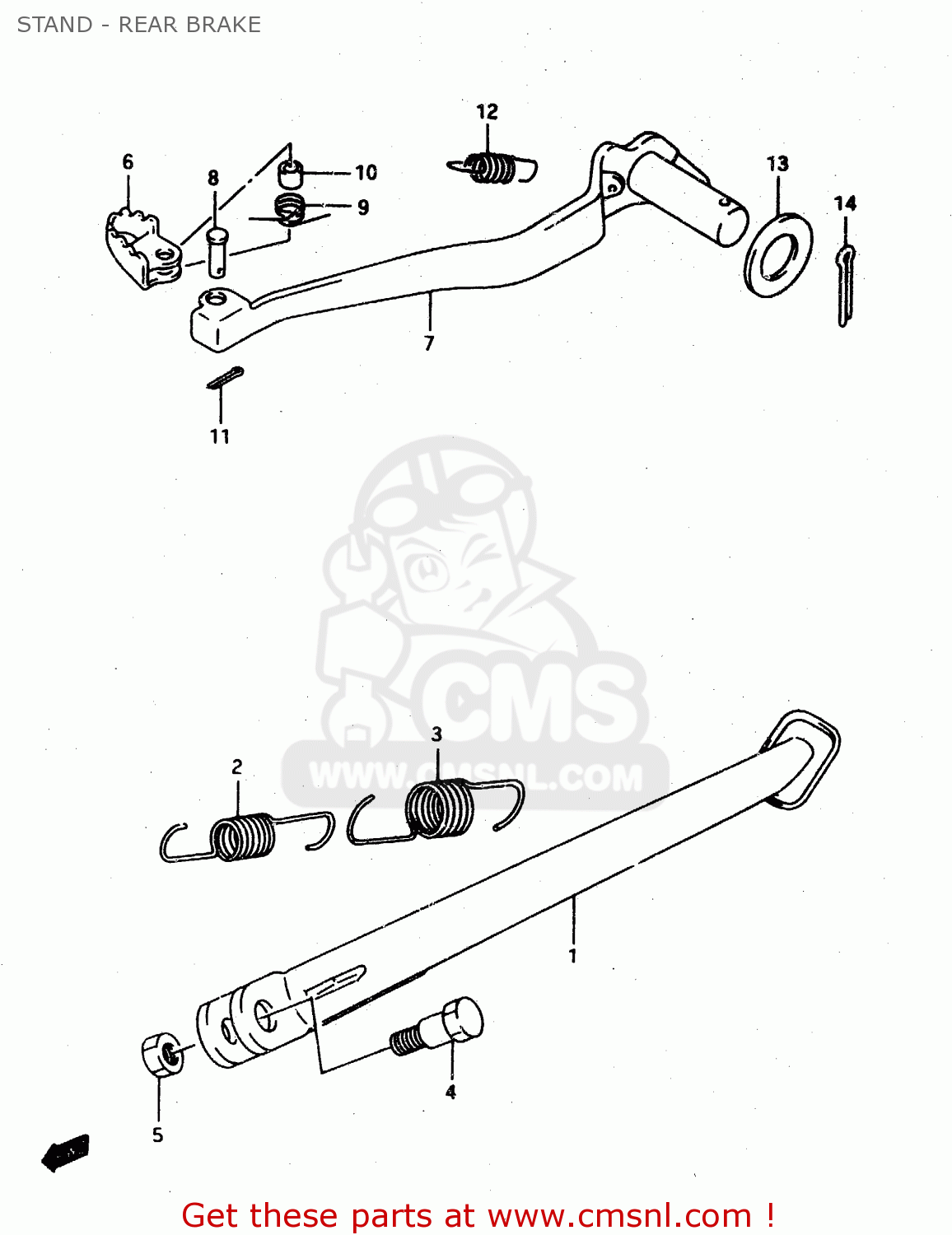

Stand - rear brake diagram DR650RE 1995 (S) (E02 E04 E18)
STAND - REAR BRAKE DR650RE 1995 (S) (E02 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
4231012E00019
ref: 1
STAND,PROP(BLACK)
€ 85.00
2
0944314030
ref: 2
SPRING
€ 6.00
3
0944322003
ref: 3
SPRING
€ 7.00
4
0911110047
ref: 4
BOLT(10X30)
€ 4.50
5
0915910097
ref: 5
NUT
€ 5.00
6
4311014130
ref: 6
PEDAL,BRAKE
€ 6.00
7
4312012D00
ref: 7
ARM,BRAKE PEDAL
€ 51.50
8
0920006038
ref: 8
PIN
€ 2.00
9
0944411005
ref: 9
SPRING
€ 3.00
10
0918006165
ref: 10
SPACER (6.6X9X6.5)
€ 2.50
11
0411120158
ref: 11
PIN
€ 1.50
12
0944310033
ref: 12
SPRING
€ 3.50
13
0916017501
ref: 13
WASHER (17.5X34X2)
€ 2.00
14
0411130308
ref: 14
COTTER PIN
€ 1.50
