FRONT MASTER CYLINDER

DR650RE 1995 (S) (E02 E04 E18)

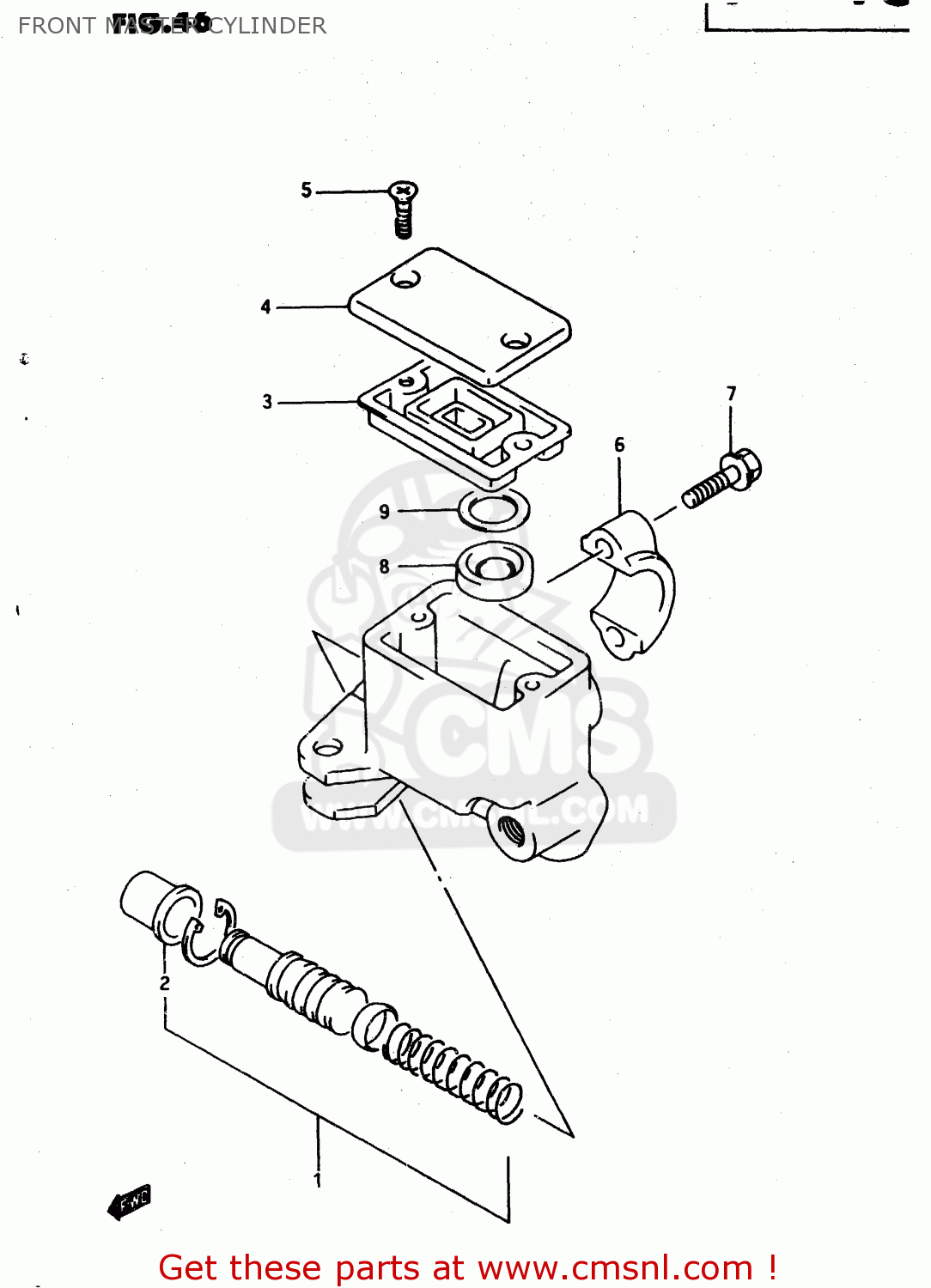

Front master cylinder diagram DR650RE 1995 (S) (E02 E04 E18)

FRONT MASTER CYLINDER DR650RE 1995 (S) (E02 E04 E18)
FRONT MASTER CYLINDER DR650RE 1995 (S) (E02 E04 E18)
FRONT MASTER CYLINDER DR650RE 1995 (S) (E02 E04 E18)
prices are in EUR
ref
part #
description
quantity
0
5960012D01
ref: 0
CYLINDER ASSY,FR MASTER
5960012D01
€ 210.00
1
5960045850
ref: 1
PISTON & CUP SET
5960045850
€ 38.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5966744B00
ref: 3
DIAPHRAGM
5966744B00
€ 8.00
4
6966924A01
ref: 4
CAP
6966924A01
€ 12.00
5
6968949300
ref: 5
SCREW
6968949300
€ 1.50
6
5967136500
ref: 6
HOLDER
5967136500
€ 10.00
7
5967519C00
ref: 7
BOLT(6X25)
5967519C00
€ 3.00
8
5974815400
ref: 8
SEPERATOR
5974815400
€ 7.50
9
5974915400
ref: 9
PLATE
5974915400
€ 2.00
