WIRING HARNESS
DR650RE 1995 (S) (E02 E04 E18)

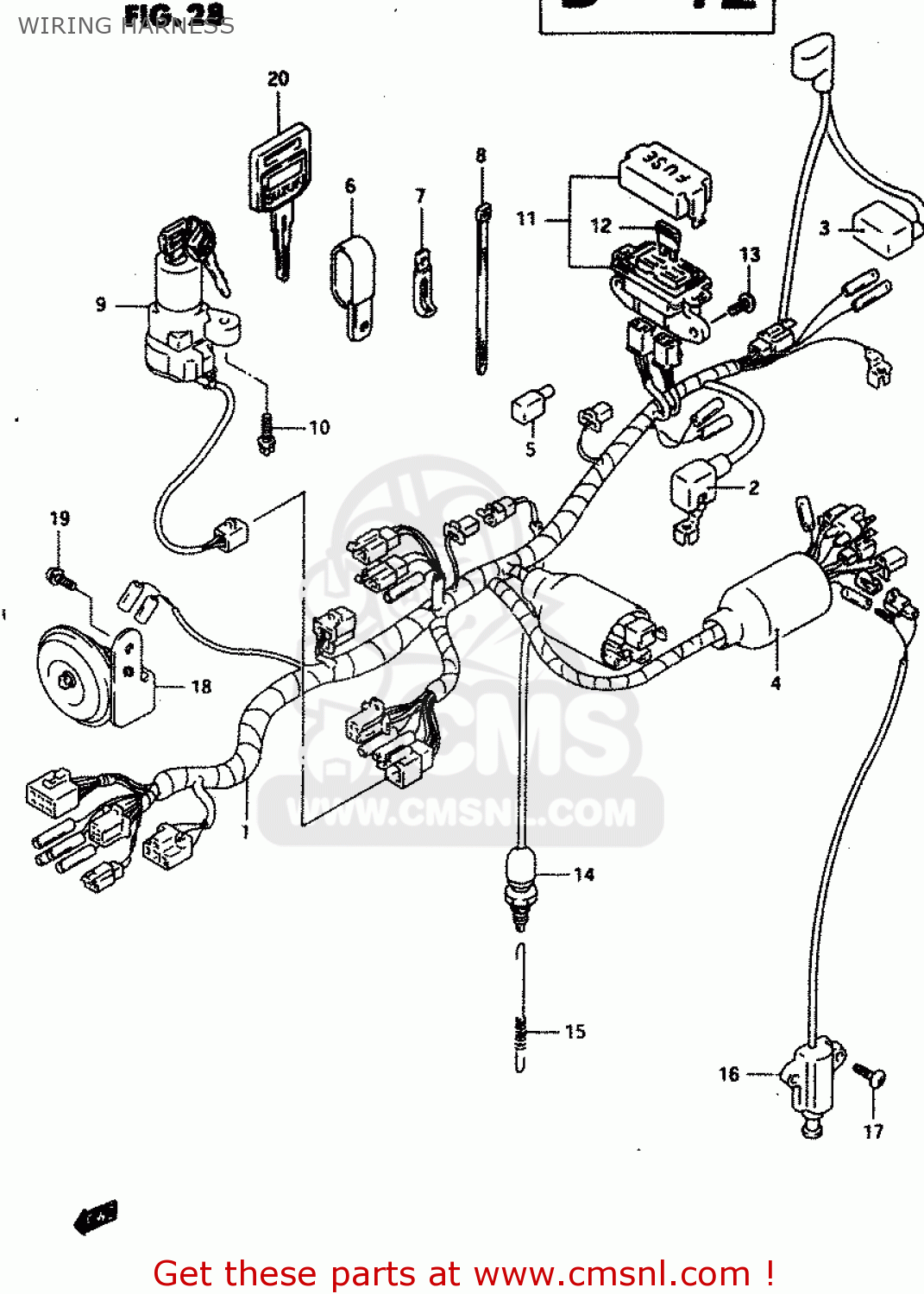

Wiring harness diagram DR650RE 1995 (S) (E02 E04 E18)
WIRING HARNESS DR650RE 1995 (S) (E02 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
3661012E60
ref: 1
HARNESS,WIRING
€ 0.00
2
3362427A00
ref: 2
MODEL R
CAP,BATTERY PLUS
€ 3.50
2
3362443500
ref: 2
MODEL S
CAP,BATTERY PLUS TERMINAL
€ 3.50
3
3186110D00
ref: 3
CAP,STARTER RELAY
€ 4.00
4
3661830000
ref: 4
BOOT,WIRING HARNESS
€ 8.50
5
3298044B00
ref: 5
COVER,DECOMPRESSION CONTROL UNIT
€ 5.50
6
0940319406
ref: 6
CLAMP
€ 3.50
7
0940406206
ref: 7
CLAMP(L:45)
€ 2.50
7
0940406607
ref: 7
CLAMP(L:55)
€ 3.00
7
0940408420
ref: 7
CLAMP(L:120 T:1.0)
€ 3.50
8
0940712402
ref: 8
CLAMP(L:120)
€ 3.00
8
0940714403
ref: 8
CLAMP(L:125)
€ 2.50
8
0940718403
ref: 8
CLAMP L:165
€ 2.50
8
0940725401
ref: 8
CLAMP(L:235)
€ 4.00
9
3710012E10
ref: 9
LOCK ASSY,STEERING
€ 139.50
10
0913906026
ref: 10
SCREW(6X18)
€ 2.50
11
3674012E10
ref: 11
BOX ASSEMBLY,FUSE
€ 0.00
12
0948110101
ref: 12
FUSE(10A)
€ 2.50
12
0948120101
ref: 12
FUSE(20A)
€ 2.00
13
0214206123
ref: 13
SCREW 6X12
€ 2.00
14
3774031D00
ref: 14
SWITCH ASSY,STOP LAMP
€ 20.50
15
0944306079
ref: 15
SPRING
€ 4.00
16
3784044A20
ref: 16
MODEL R
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
16
3784044X50
ref: 16
MODEL S
SWITCH ASSY,SIDE STAND
€ 75.50
17
0211206203
ref: 17
SCREW, 6X20
€ 2.00
18
3850044B00
ref: 18
HORN ASSY
€ 48.00
19
0157006123
ref: 19
MODEL R
BOLT
€ 1.50
19
0155006123
ref: 19
MODEL S
BOLT
€ 2.50
20
3714626D10
ref: 20
OPT
KEY,BLANK
€ 41.50
