SEAT (MODEL S)
DR650RE 1995 (S) (E02 E04 E18)

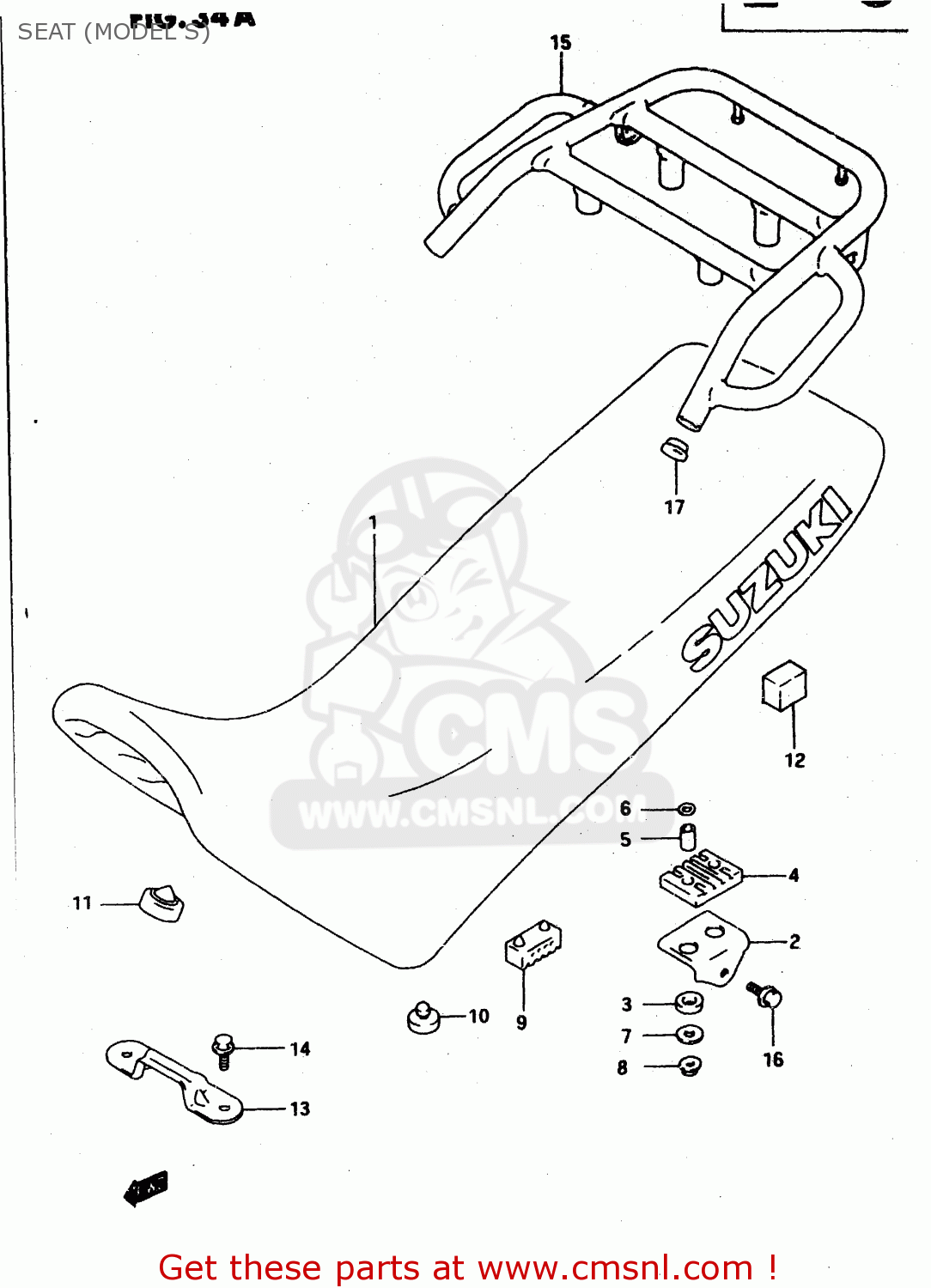

Seat (model s) diagram DR650RE 1995 (S) (E02 E04 E18)
SEAT (MODEL S) DR650RE 1995 (S) (E02 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
4510012E409DD
ref: 1
FOR C3K
SEAT ASSEMBLY
€ 367.00
1
4510012E403RB
ref: 1
FOR 019
SEAT ASSEMBLY
€ 0.00
1
4510012E609DD
ref: 1
E18, E22 FOR C3K
SEAT SET
€ 360.00
1
4510012E603RB
ref: 1
E18, E22 FOR 019
SEAT SET
€ 0.00
2
4521012E00
ref: 2
BRACKET,SEAT
€ 0.00
3
4514723450
ref: 3
CUSHION,SEAT FR
€ 1.50
4
4515023450
ref: 4
CUSHION,FR PLATE
€ 3.00
5
4521944B00
ref: 5
SPACER,SEAT BRACKET
€ 0.00
6
0821206201
ref: 6
WASHER
€ 1.50
7
0832201063
ref: 7
WASHER
€ 2.00
8
0831620063
ref: 8
NUT
€ 2.00
9
4514931300
ref: 9
CUSHION,SEAT(40X20X15)
€ 2.00
10
0932110011
ref: 10
CUSHION
€ 3.00
11
4514912E00
ref: 11
CUSHION,FRONT
€ 0.00
12
4525515510
ref: 12
CUSHION,TOOL(40X30X15)
€ 4.00
13
4511912E00
ref: 13
PLATE,SEAT FR HOOK
€ 8.50
14
0155008163
ref: 14
BOLT
€ 3.00
15
4631012E1021R
ref: 15
E24
CARRIER, REAR (SILVER)
€ 0.00
15
4631012E0021R
ref: 15
CARRIER,SPORT
€ 199.00
16
0155006163
ref: 16
BOLT
€ 2.50
17
0925016014
ref: 17
CAP(OD:19)
€ 2.50
