CYLINDER HEAD
DR650RU 1992 (N) GERMANY (E22)

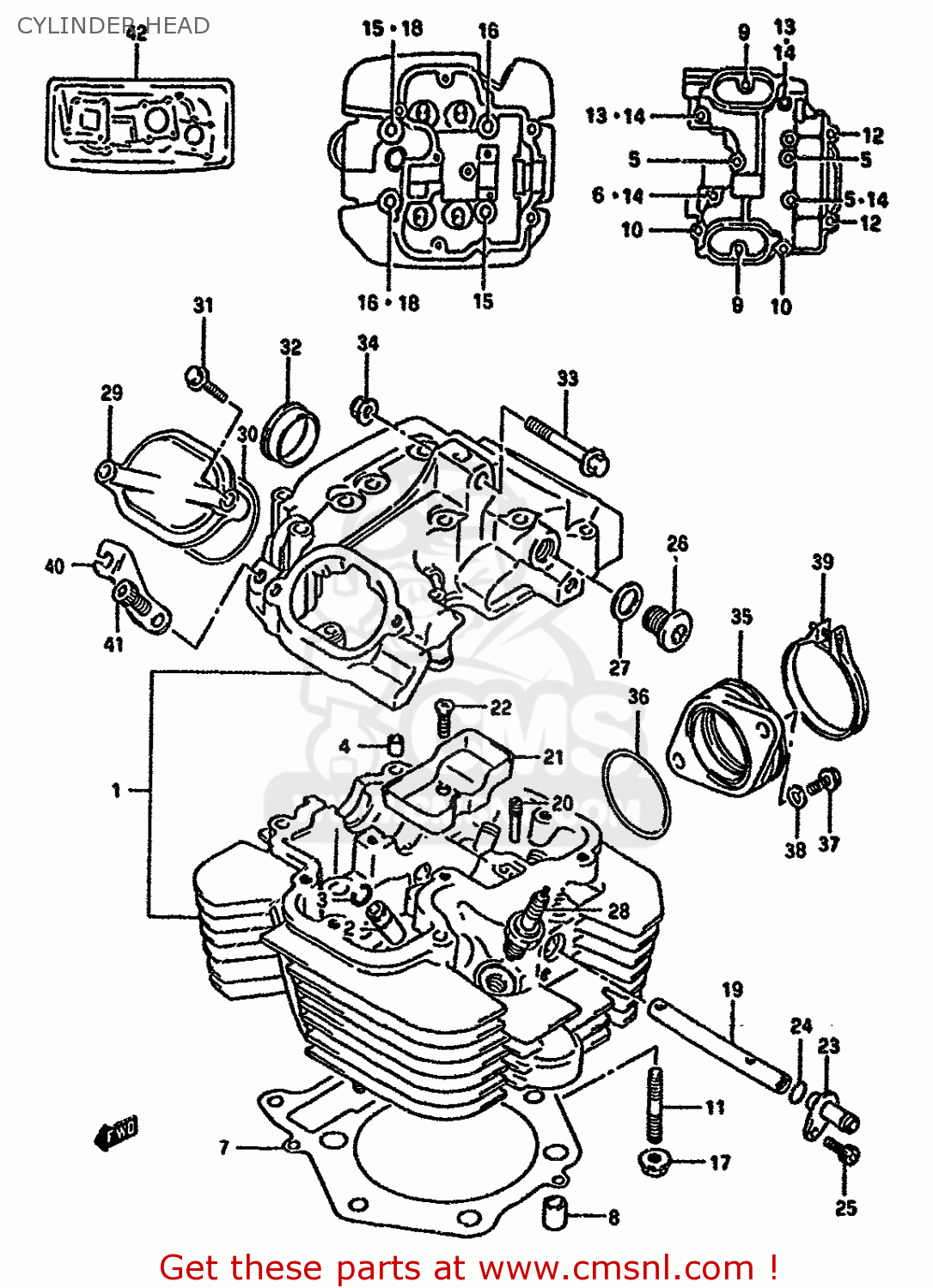

Cylinder head diagram DR650RU 1992 (N) GERMANY (E22)
CYLINDER HEAD DR650RU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110012D60
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,267.00
1-2
1110012D70
ref: 1-2
E18
HEAD ASSY,CYLINDER
€ 789.50
2
1111537470
ref: 2
GUIDE,VALVE
€ 20.00
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0151706608
ref: 5
BOLT (6X60)
€ 2.50
6
0910306151
ref: 6
BOLT 6X55
€ 7.00
7
1114112D00
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 44.50
8
0920613001
ref: 8
PIN
€ 2.50
9-1
0151706257
ref: 9-1
MODEL N/P
BOLT 6X25
€ 2.50
9-2
0155006253
ref: 9-2
MODEL R
BOLT
€ 2.50
10-1
0151706408
ref: 10-1
MODEL N/P
BOLT
€ 2.50
10-2
0155006403
ref: 10-2
MODEL R
BOLT
€ 2.00
11
0910808161
ref: 11
STUD
€ 3.50
12
0910306150
ref: 12
BOLT
€ 4.50
13
0151706608
ref: 13
BOLT (6X60)
€ 2.50
14
0916806028
ref: 14
GASKET (NAS)
€ 2.00
15
0910310179
ref: 15
BOLT(10X190)
€ 12.50
16
0910310181
ref: 16
BOLT(10X215)
€ 17.50
17-1
0831616088
ref: 17-1
MODEL N/P
NUT
€ 2.50
17-2
0831610083
ref: 17-2
MODEL R
NUT
€ 3.00
18
0916810017
ref: 18
GASKET(10.5X22X2) (NAS)
€ 3.50
19
1113112D00
ref: 19
PIPE,CYLINDER HEAD OIL
€ 12.00
20
0913406012
ref: 20
SCREW (L:19.5)
€ 3.00
21
1113512D00
ref: 21
PLATE,CYLINDER HEAD CHAMBER
€ 3.50
22
0211206103
ref: 22
SCREW
€ 1.50
23
1119012D01
ref: 23
UNION,CYLINDER HEAD OIL
€ 16.50
24
1114306B00
ref: 24
O RING,HEAD GASKET
€ 8.00
25-1
0711006165
ref: 25-1
MODEL N/P
BOLT
€ 3.00
25-2
0713006167
ref: 25-2
MODEL R
BOLT
€ 3.00
26
0924814010
ref: 26
PLUG
€ 5.00
27
0916814002
ref: 27
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
28-1
0948200330
ref: 28-1
PLUG,SPARK(DPR9EA-9)
€ 4.00
28-2
0948200331111
ref: 28-2
SPARK PLUG X27EPR-U9
€ 4.00
28-3
0948200328
ref: 28-3
E34
SPARK PLUG DP9EA-9
€ 4.00
28-4
0948200329111
ref: 28-4
E34
SPARK PLUG X27EP-U9
€ 4.00
29
1117512D10
ref: 29
CAP,INSPECTION
€ 16.00
30
0928060004
ref: 30
O RING(D:2.4,ID:23)
€ 4.50
31-1
0151706207
ref: 31-1
MODEL N/P
BOLT 6X20
€ 2.50
31-2
0155006203
ref: 31-2
MODEL R
BOLT
€ 2.50
32
0924130004
ref: 32
PLUG(OD:30)
€ 6.50
33
0910308290
ref: 33
BOLT 8X53
€ 3.50
34
0831931085
ref: 34
NUT
€ 2.50
35
1311012D00
ref: 35
PIPE,INTAKE
€ 32.50
36
0928046002
ref: 36
O RING(D:2.4,ID:45.7)
€ 9.50
37-1
0712006205
ref: 37-1
MODEL N/P
PLUG ,6X20
€ 3.50
37-2
0712006203
ref: 37-2
MODEL R
BOLT
€ 3.50
38-1
0832131064
ref: 38-1
MODEL N/P
WASHER
€ 2.00
38-2
0832101063
ref: 38-2
MODEL R
LOCK WASHER
€ 2.00
39
0940258207
ref: 39
CLAMP
€ 5.50
40
1294414A00
ref: 40
LEVER,DECOMP SHAFT RH
€ 6.50
41-1
0711008165
ref: 41-1
MODEL N/P
BOLT
€ 3.00
41-2
0713008167
ref: 41-2
MODEL R
BOLT
€ 3.00
42
1140012895
ref: 42
GASKET SET (NAS)
€ 146.50
