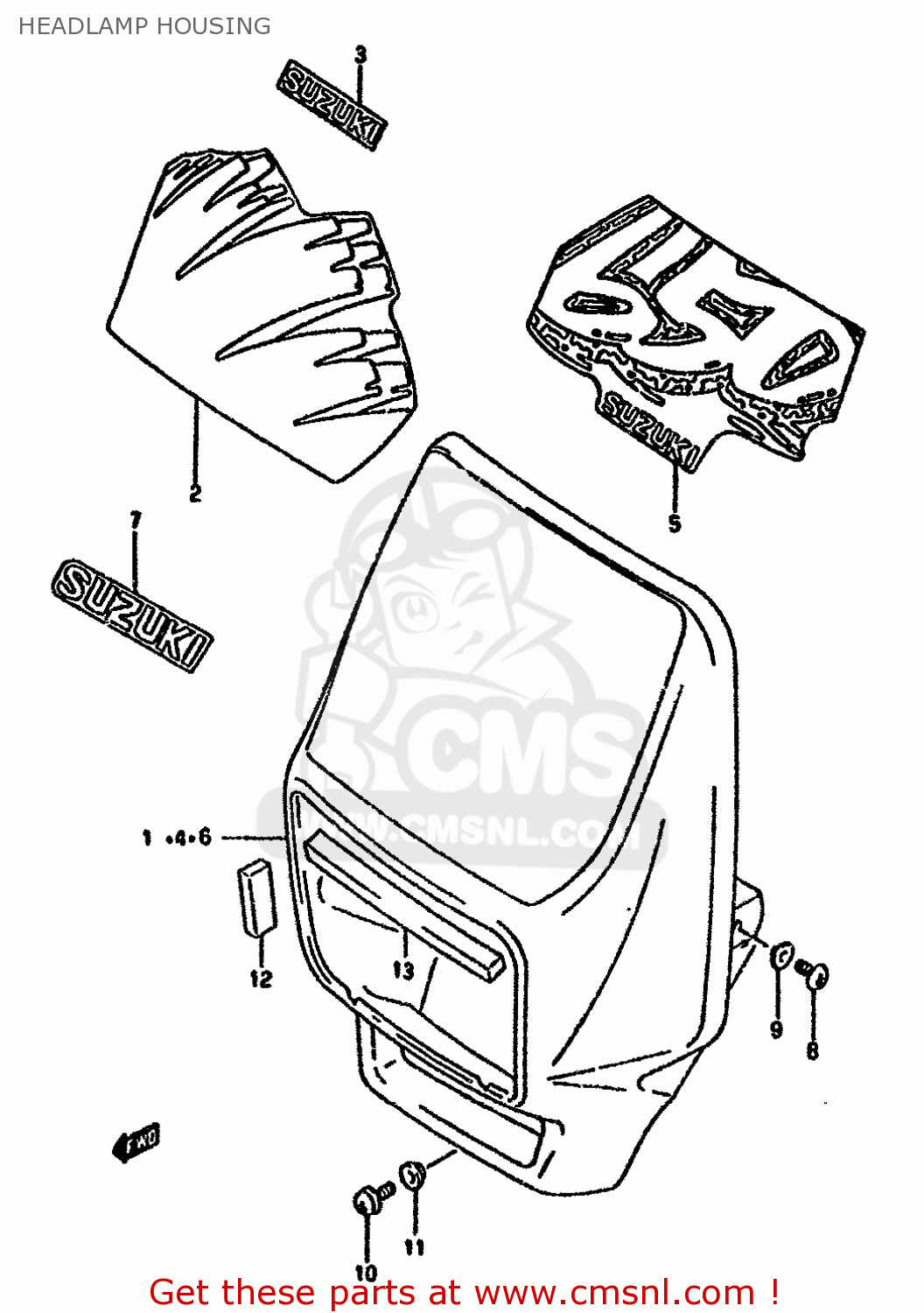

HEADLAMP HOUSING

ref

part #

description

quantity

1-1

5180012E0028X
ref: 1-1
MODEL N FOR 0NF (FRA

COVER ASSY,HEADLAMP (WHITE)

€ 88.00

1-2

5180012E0029X
ref: 1-2
MODEL N FOR 0NH (FRA

COVER ASSY,HEADLAMP (WHITE)

€ 88.00

2-1

6872512E00A0S
ref: 2-1
FOR 28X

TAPE,HEADLAMP COVER

€ 25.00

2-2

6872512E00A0T
ref: 2-2
FOR 29X

TAPE,HEADLAMP COVER

€ 23.00

3-1

6872105D00A1H
ref: 3-1
FOR 28X

EMBLEM,HEADLAMP COVER

€ 8.50

3-2

6872105D00G11
ref: 3-2
FOR 29X

EMBLEM,HEADLAMP COVER

€ 7.50

4-1

5180012E2028X
ref: 4-1
MODEL P FOR 0NF (FRA

HOUSING ASSEMBLY,HEADLAMP

€ 88.00

4-2

5180012E2029X
ref: 4-2
MODEL P FOR 0NH (FRA

COVER ASSY,HEADLAMP (WHITE)

€ 88.00

5-1

6872512E20A4F
ref: 5-1
FOR 28X

TAPE,HEADLAMP COVER

€ 15.00

5-2

6872512E20A7T
ref: 5-2
FOR 29X

TAPE,HEADLAMP COVER

€ 18.00

6-1

5180012E4030H
ref: 6-1
MODEL R FOR C3K

HOUSING ASSEMBLY,HEADLAMP

€ 88.00

6-2

5180012E40019
ref: 6-2
MODEL R FOR 019

COVER ASSY, HEAD LAMP (BLACK)

€ 93.50

7-1

6817435B00A2L
ref: 7-1
FOR 30H

EMBLEM,HEADLAMP COVER

€ 6.00

7-2

6817435B00C9C
ref: 7-2
FOR 019

EMBLEM, SUZUKI

€ 6.50

8

0214206127
ref: 8

SCREW 6X12

€ 1.50

9

0916906011
ref: 9

WASHER

€ 6.50

10-1

0214215128
ref: 10-1
MODEL N/P

SCREW

€ 1.50

10-2

0214205127
ref: 10-2
MODEL R

SCREW

€ 1.50

11

0916105017
ref: 11

WASHER(5.2X14X1.5)

€ 3.00

12

5182712E00
ref: 12

CUSHION,HEADLAMP COVER

€ 2.50

13

5182812E00
ref: 13

CUSHION,HEADLAMP COVER SIDE

€ 7.50

all assemblies
